PFERD 64188125 by PFERD
Call For Price
- Part Number: 64188125
- UPC:
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview
Long Description

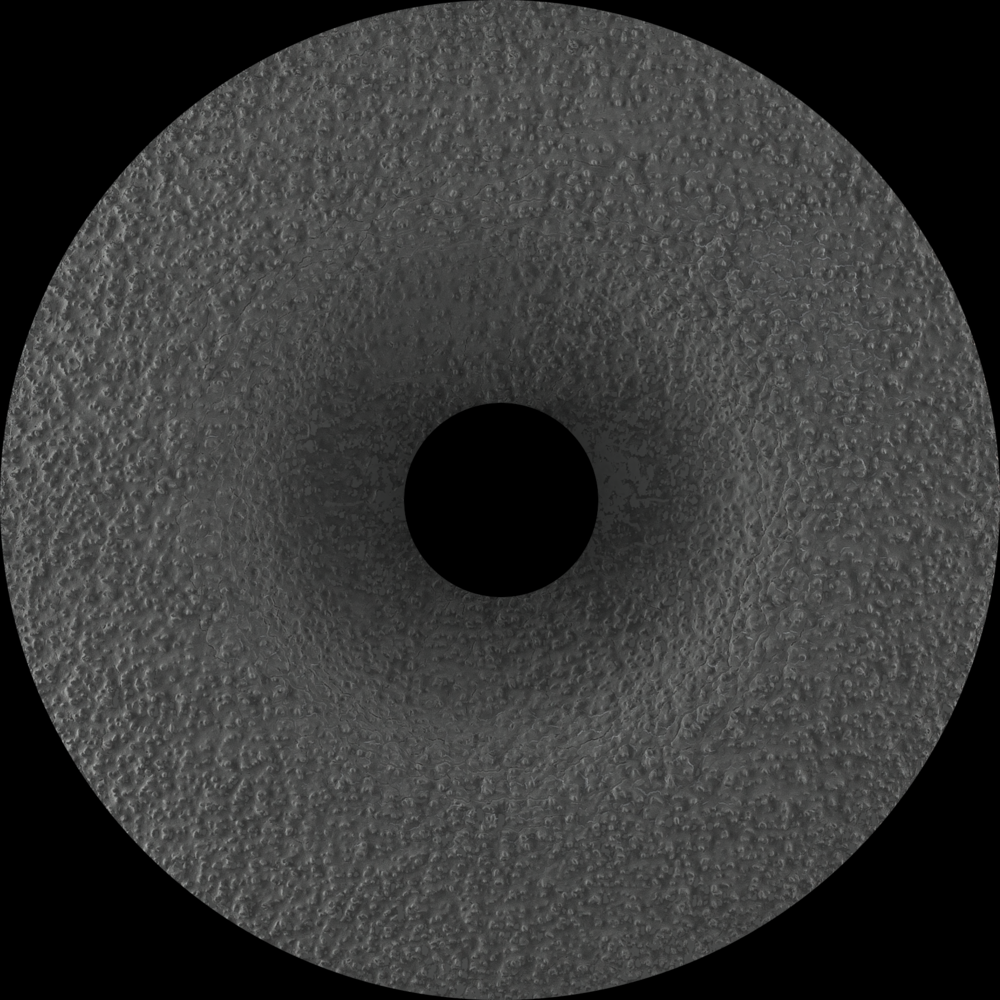

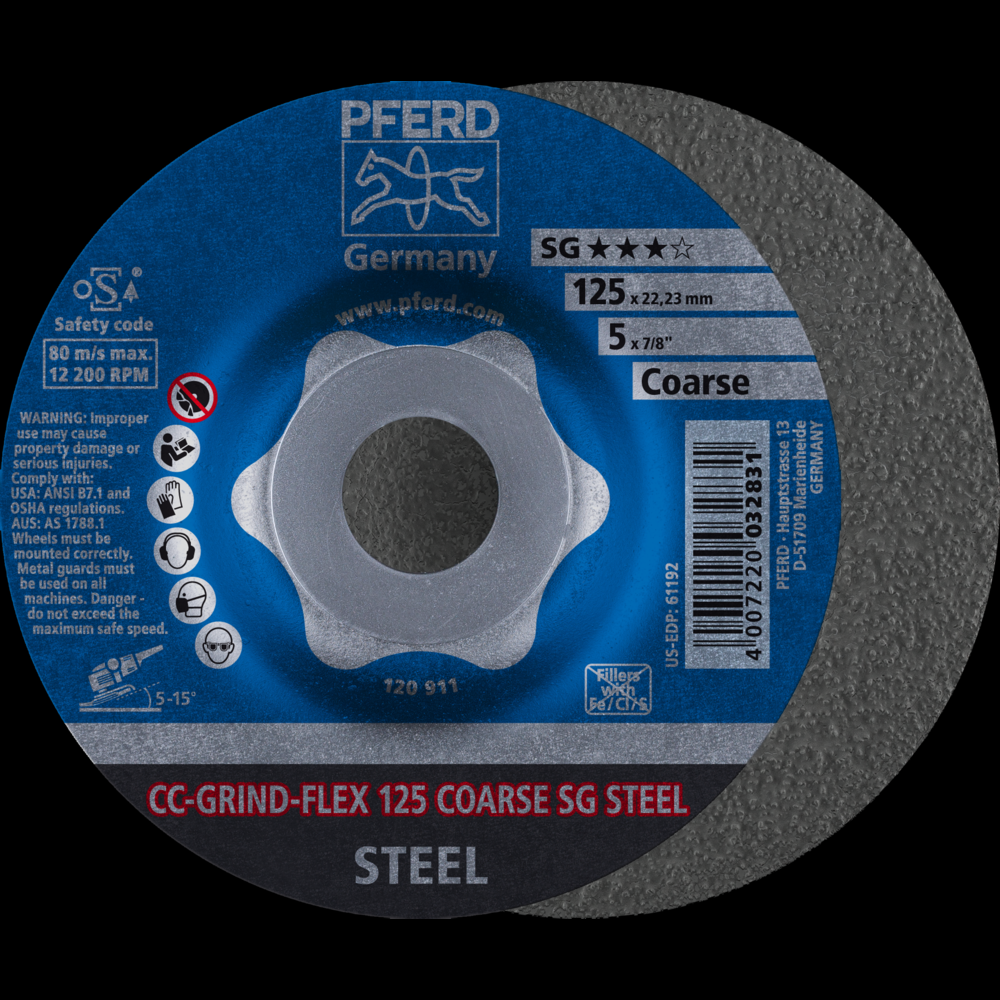

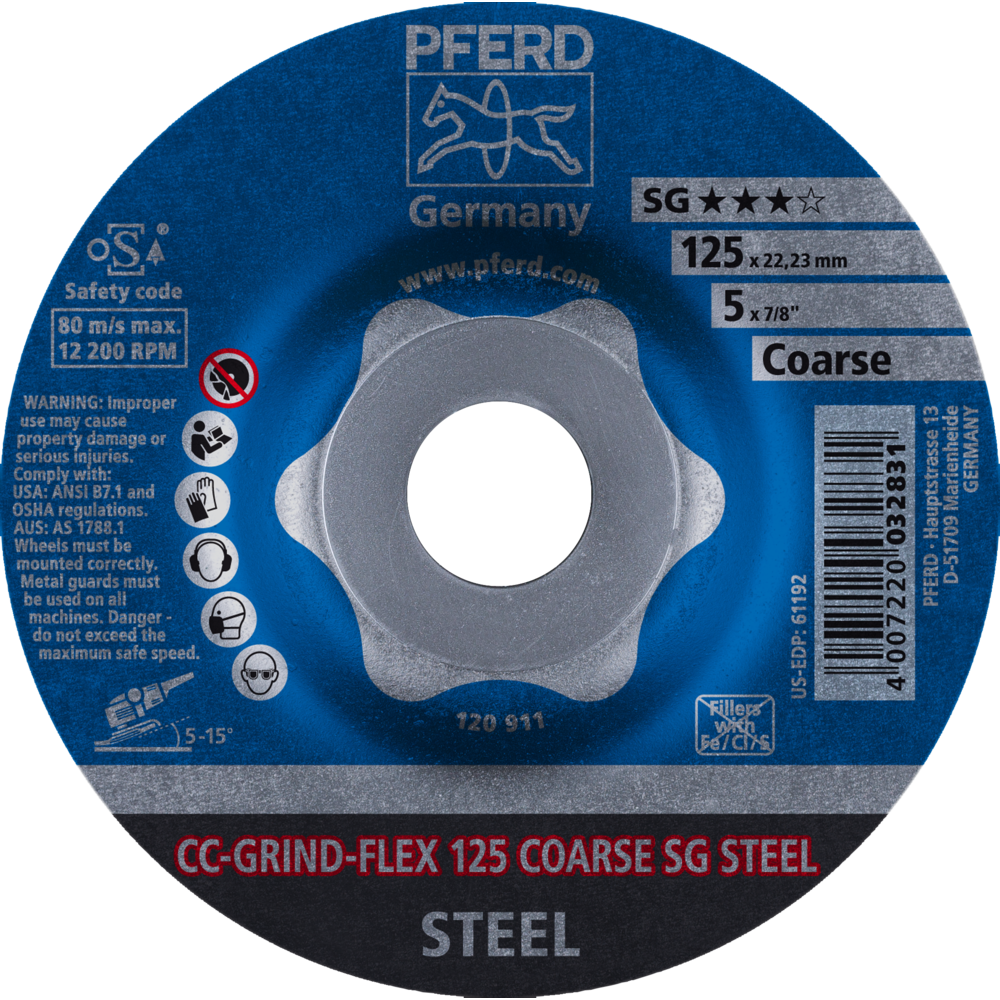

The wide range Performance Line SG offers high-performance solutions for every application and material. Performance Line SG products achieve optimum results with excellent economic efficiency. The CC-GRIND®-FLEX is the semi-flexible addition to the CC-GRIND® family. It was specially developed for work on weld seams. Butt welds can be smoothed completely flat. This gets rid of any dents and bumps that are visible, particularly after painting or varnishing. Semi-flexible grinding disc for steel. High grinding performance and maximum service life.
Specifications
Details
Category:
Abrasives
Subcategory:
Cut-Off and Grinding Wheels
Subtype:
Depressed-Center Wheels
Abrasive:
CO-COOL
Advantages:
Highly aggressive abrasive produces fast results.
Advantages 1:
Significantly more ergonomic than a conventional grinding wheel: noise and vibrations are reduced by 50%, dust by 80%.
Advantages 2:
Layered structure of the fiberglass backing pad facilitiates use that is just as durable and safe as with a grinding wheel.
Advantages 3:
Complete smoothing of butt welds – without dents or bumps.
Advantages 4:
Superior surface finish compared to conventional grinding wheels.
Applications:
Step-by-step fine grinding
Applications 1:
Surface grinding
Applications 2:
Work on weld seams
CONTENT_UNIT:
C62
COUNTRY_OF_ORIGIN:
DE
DEPTH:
0.135
Dia. external:
5
Dia. external UNIT:
Inch
Dia. hole:
7/8
Dia. hole UNIT:
Inch
Drive types:
Angle grinder
EAN pcs.:
4007220238547
EAN type:
AR
Grit size:
coarse
Gross weight (Piece):
0.07
Gross weight (Piece) UNIT:
kg
Height (Packaging unit):
135
Height (Packaging unit) UNIT:
mm
INTERNATIONAL_PID (ean):
4007220032831
INTERNATIONAL_PID (edp):
61192
INTERNATIONAL_PID (gtin):
4007220032831
INTERNATIONAL_PID (upc):
97758611923
KEYWORD:
CC-GRIND® grinding discs
KEYWORD 1:
Performance Line SG ★★★☆
KEYWORD 2:
CC-GRIND®-FLEX
LEADTIME:
3
LENGTH:
0.135
Length (Packaging unit):
135
Length (Packaging unit) UNIT:
mm
MANUFACTURER_NAME:
PFERD
MANUFACTURER_PID:
64188125
MANUFACTURER_TYPE_DESCR:
CC-GRIND-FLEX 125 SG STEEL COARSE
Materials that can be worked:
Steel
Mounting system:
Centre hole
NO_CU_PER_OU:
1
Ordering notes:
Please order clamping flange set separately.
ORDER_UNIT:
C62
Output name <= 80 characters:
PFERD Grinding disc, CC-GRIND®-FLEX, 5" x 7/8, SG STEEL, Coarse, Ceramic
PFERDEFFICIENCY:
PFERDEFFICIENCY recommends CC-GRIND®-FLEX to quickly achieve excellent results.
PFERDERGONOMICS:
PFERDERGONOMICS recommends CC-GRIND®-FLEX to sustainably reduce the vibration, noise and dust produced during use and to perceptibly improve comfort when working.
Product issue name web for bmecat:
CC-GRIND grinding discs FLEX SG STEEL ★★★☆
PRODUCT_ORDER:
40
prop65:
Warning: Cancer -- www.P65Warnings.ca.gov
QUANTITY_INTERVAL:
1
QUANTITY_MIN:
1
Recommendations for use:
Only use the face of the disc, not suitable for peripheral grinding (on edge).
Recommendations for use 1:
For optimal results, use with a flat contact angle and the SFS CC-GRIND® clamping flange set.
REFERENCE_FEATURE_GROUP_ID:
P_15120_171365
RPM, max.:
12200
RPM, max. UNIT:
RPM
SEGMENT:
Cut-off wheels, flap discs and grinding wheels
Shape:
CC-GRIND®-FLEX
SPECIAL_TREATMENT_CLASS:
Warning: Cancer -- www.P65Warnings.ca.gov
TIME_BASE:
dayofweek
TIME_VALUE_END:
5
TIME_VALUE_START:
1
UNSPSC 25.0901:
23131503
UPC pcs.:
0
UPC type:
UC
UPC VE:
97758611923
VOLUME:
0.001023
Volume (Packaging unit):
1023
Volume (Packaging unit) UNIT:
CCM
WEIGHT:
0.07
WIDTH:
0.135
Width (Packaging unit):
135
Width (Packaging unit) UNIT:
mm
Manufactured By:
PFERD
