Part Number: 64185180 / Vendor ID #: 1139477
PFERD 64185180
by PFERD
Call for Price
Item Sales Info
Add To Wishlist
Compare Item
Email
Print
Availability
- Manufacturer availability unknown.
Dimensions

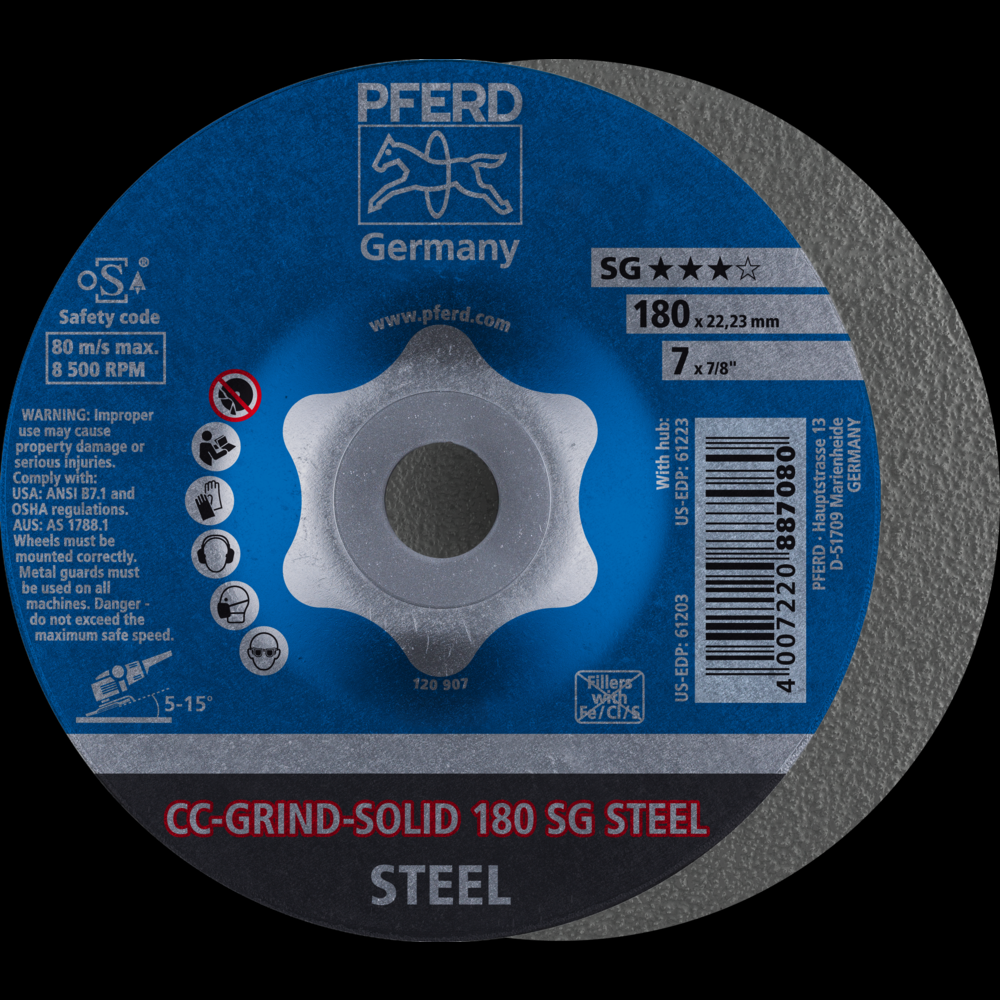

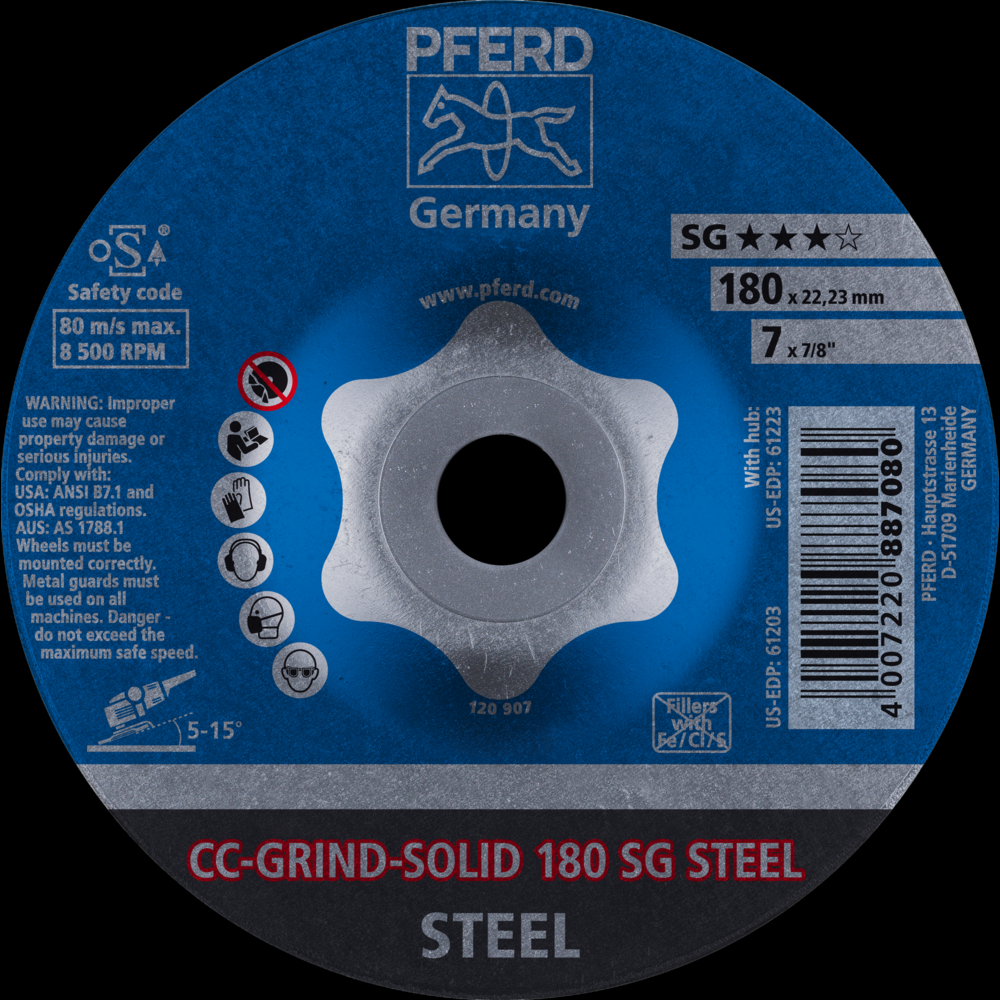

PFERD Grinding disc, CC-GRIND®-SOLID, 7" x 7/8, SG STEEL, Ceramic
The wide range Performance Line SG offers high-performance solutions for every application and material. Performance Line SG products achieve optimum results with excellent economic efficiency. With the CC-GRIND®-SOLID, PFERD offers a modern, high-performance and ergonomic alternative to conventional grinding wheels. Grinding disc for steel. High grinding performance and maximum tool life.
Category:
Abrasives
Subcategory:
Cut-Off and Grinding Wheels
Subtype:
Depressed-Center Wheels
Abrasive:
CO-COOL
Advantages:
Highly aggressive abrasive produces fast results.
Advantages 1:
Significantly more ergonomic than a conventional grinding wheel: noise and vibrations are reduced by 50%, dust by 80%.
Advantages 2:
Layered structure of the fiberglass backing pad facilitiates use that is just as durable and safe as with a grinding wheel.
Advantages 3:
Superior surface finish compared to conventional grinding wheels.
Applications:
Chamfering
Applications 1:
Deburring
Applications 2:
Step-by-step fine grinding
Applications 3:
Surface grinding
Applications 4:
Work on weld seams
CONTENT_UNIT:
C62
COUNTRY_OF_ORIGIN:
DE
CUSTOMS_NUMBER:
6805301000
DEPTH:
0.196
Dia. external:
7
Dia. external UNIT:
Inch
Dia. hole:
7/8
Dia. hole UNIT:
Inch
Drive types:
Angle grinder
EAN pcs.:
4007220237090
EAN type:
AR
Gross weight (Piece):
0.162
Gross weight (Piece) UNIT:
kg
Height (Packaging unit):
196
Height (Packaging unit) UNIT:
mm
INTERNATIONAL_PID (ean):
4007220887080
INTERNATIONAL_PID (edp):
61203
INTERNATIONAL_PID (gtin):
4007220887080
INTERNATIONAL_PID (upc):
97758612036
KEYWORD:
CC-GRIND® grinding discs
KEYWORD 1:
Performance Line SG ★★★☆
KEYWORD 2:
CC-GRIND®-SOLID
LEADTIME:
3
LENGTH:
0.196
Length (Packaging unit):
196
Length (Packaging unit) UNIT:
mm
MANUFACTURER_NAME:
PFERD
MANUFACTURER_PID:
64185180
MANUFACTURER_TYPE_DESCR:
CC-GRIND-SOLID 180 SG STEEL
Materials that can be worked:
Steel
Mounting system:
Centre hole
NO_CU_PER_OU:
1
Ordering notes:
Please order clamping flange set separately.
ORDER_UNIT:
C62
Output name <= 80 characters:
PFERD Grinding disc, CC-GRIND®-SOLID, 7" x 7/8, SG STEEL, Ceramic
PFERDEFFICIENCY:
PFERDEFFICIENCY recommends CC-GRIND®-SOLID to achieve perfect results as quickly as possible.
PFERDERGONOMICS:
PFERDERGONOMICS recommends CC-GRIND®-SOLID to sustainably reduce the vibration, noise and dust produced during use and to perceptibly improve comfort when working.
Product issue name web for bmecat:
CC-GRIND grinding discs SOLID SG STEEL ★★★☆
PRODUCT_ORDER:
50
prop65:
Warning: Cancer -- www.P65Warnings.ca.gov
QUANTITY_INTERVAL:
10
QUANTITY_MIN:
10
Recommendations for use:
Only use the face of the disc, not suitable for peripheral grinding (on edge).
Recommendations for use 1:
For optimal results, use with a flat contact angle and the SFS CC-GRIND® clamping flange set.
REFERENCE_FEATURE_GROUP_ID:
P_15120_171347
RPM, max.:
8500
RPM, max. UNIT:
RPM
SEGMENT:
Cut-off wheels, flap discs and grinding wheels
Shape:
CC-GRIND®-SOLID
SPECIAL_TREATMENT_CLASS:
Warning: Cancer -- www.P65Warnings.ca.gov
TIME_BASE:
dayofweek
TIME_VALUE_END:
5
TIME_VALUE_START:
1
UNSPSC 25.0901:
23131503
UPC pcs.:
0
UPC type:
UC
UPC VE:
97758612036
VOLUME:
0.002281
Volume (Packaging unit):
2281
Volume (Packaging unit) UNIT:
CCM
WEIGHT:
0.162
WIDTH:
0.196
Width (Packaging unit):
196
Width (Packaging unit) UNIT:
mm
Manufactured By:
PFERD
