PFERD 47803115 by PFERD
Call For Price
- Part Number: 47803115
- UPC:
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview
Info & Guides

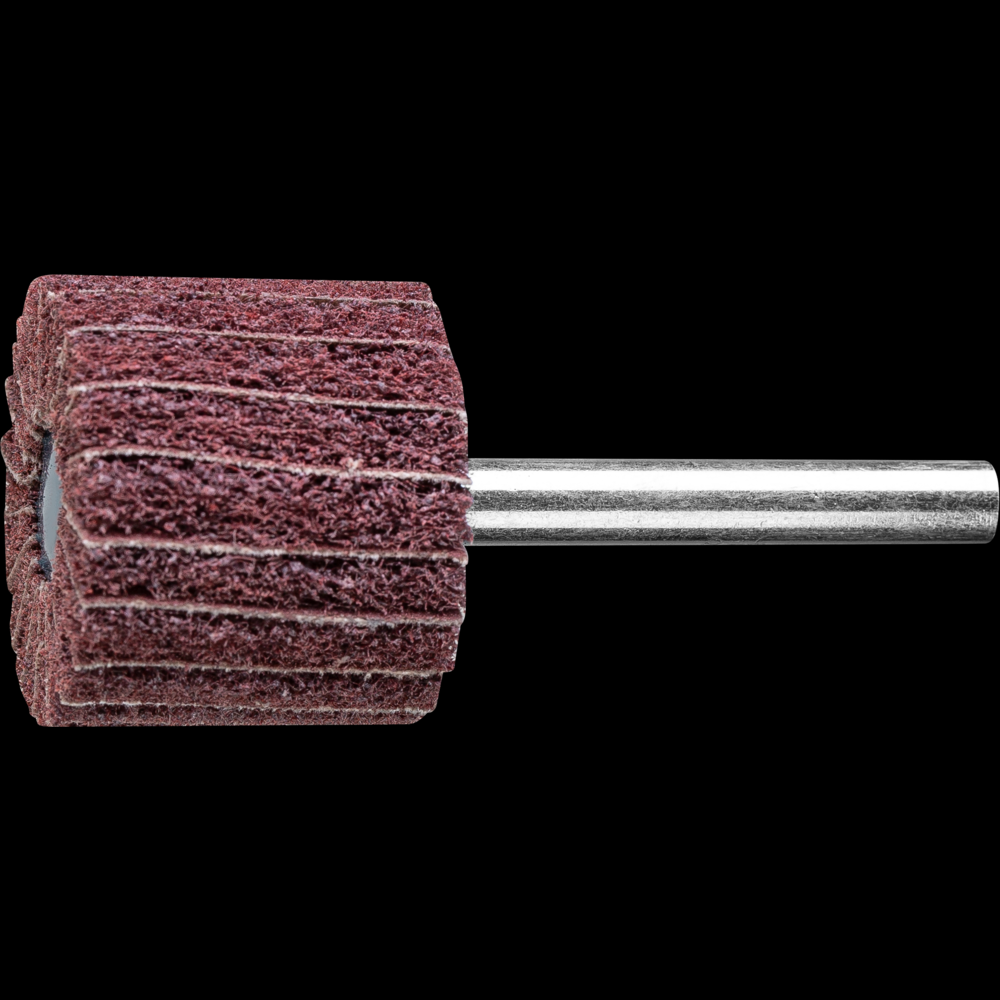

PFERD POLINOX® Mounted Flap Wheel, 1"x1, 180 Grit,Interleaved,1/4"Shank,Aluminum Oxide
Long Description
POLINOX® mounted flap wheels are made of non-woven polyamide abrasive, into which abrasive grain is integrated. The non-woven abrasive material is arranged in multiple radial flaps, with abrasive cloth interlayers. This flap structure improves stock removal and achieves a coarser surface finish.
Specifications
Details
Abrasive:
Aluminium oxide A
Advantages:
Conforms to contours due to high flexibility.
Advantages 1:
Cool grinding and low thermal load on the workpiece.
Advantages 2:
The open structure and high flexibility of the non-woven material prevents loading.
Applications:
Cleaning
Applications 1:
Deburring
Applications 2:
Step-by-step fine grinding
Applications 3:
Roughening
Applications 4:
Structuring (matt finishing, brush matting and satin finishing)
Applications 5:
Surface work
CONTENT_UNIT:
C62
COUNTRY_OF_ORIGIN:
DE
CUSTOMS_NUMBER:
6805301000
DEPTH:
0.064
Dia. external:
1
Dia. external UNIT:
Inch
Dia. shank:
1/4
Dia. shank UNIT:
Inch
Drive types:
Flexible shaft drive
Drive types 1:
Straight grinder
EAN pcs.:
4007220303368
EAN type:
AR
Grit size:
180
Gross weight (Piece):
0.024
Gross weight (Piece) UNIT:
kg
Height (Packaging unit):
64
Height (Packaging unit) UNIT:
mm
INTERNATIONAL_PID (ean):
4007220138427
INTERNATIONAL_PID (edp):
46197
INTERNATIONAL_PID (gtin):
4007220138427
INTERNATIONAL_PID (upc):
97758461979
KEYWORD:
Non-woven products
KEYWORD 1:
POLINOX® mounted flap wheels, interleaved construction
KEYWORD 2:
Aluminum oxide A
LEADTIME:
3
LENGTH:
0.087
Length (Packaging unit):
87
Length (Packaging unit) UNIT:
mm
Length, shank:
1 1/2
Length, shank UNIT:
Inch
MANUFACTURER_NAME:
PFERD
MANUFACTURER_PID:
47803115
MANUFACTURER_TYPE_DESCR:
PNZ 3025/6,35 A 180
Materials that can be worked:
Aluminum
Materials that can be worked 1:
Brass
Materials that can be worked 10:
Steel materials with a hardness > 54 HRC
Materials that can be worked 11:
Steels up to 370 HV (< 38 HRC)
Materials that can be worked 12:
Thermoplastics
Materials that can be worked 13:
Titanium
Materials that can be worked 14:
Titanium alloys
Materials that can be worked 15:
Zinc
Materials that can be worked 2:
Bronze
Materials that can be worked 3:
Cast steel
Materials that can be worked 4:
Cobalt-based alloys
Materials that can be worked 5:
Copper
Materials that can be worked 6:
Fibre-reinforced thermosetting plastics (GRP, CRP)
Materials that can be worked 7:
Hardened, heat-treated steels over 370 HV (38 HRC)
Materials that can be worked 8:
Nickel-based alloys (e.g. Inconell and Hastelloy)
Materials that can be worked 9:
Stainless steel (INOX)
NO_CU_PER_OU:
1
ORDER_UNIT:
C62
Output name <= 80 characters:
PFERD POLINOX® Mounted Flap Wheel, 1"x1, 180 Grit,Interleaved,1/4"Shank,Aluminum Oxide
PFERDERGONOMICS:
PFERDERGONOMICS recommends POLINOX® mounted flap wheels to reduce vibration and noise produced during use and to improve comfort when working.
Product issue name web for bmecat:
POLINOX mounted grinding wheels PNZ
PRODUCT_ORDER:
30
prop65:
Warning: Cancer and Reproductive Harm -- www.P65Warnings.ca.gov
QUANTITY_INTERVAL:
10
QUANTITY_MIN:
10
Recommendations for use:
For the best performance, use with a recommended peripheral speed of 2,000-4,000 SFPM. This provides an ideal compromise between stock removal rate, surface quality, thermal load on the workpiece and flap wheel/cross buff wear.
REFERENCE_FEATURE_GROUP_ID:
P_16018_179784
RPM, max.:
20000
RPM, max. UNIT:
RPM
RPM, optimum:
10000
RPM, optimum UNIT:
RPM
Safety notes:
The maximum permitted peripheral speed is 6,300 SFPM.
Safety notes 1:
For safety reasons, the maximum permitted rotational speed indicated must never be exceeded.
SEGMENT:
Fine grinding and finishing products
SPECIAL_TREATMENT_CLASS:
Warning: Cancer and Reproductive Harm -- www.P65Warnings.ca.gov
TIME_BASE:
dayofweek
TIME_VALUE_END:
5
TIME_VALUE_START:
1
UNSPSC 25.0901:
31191600
UPC pcs.:
0
UPC type:
UC
UPC VE:
97758461979
VOLUME:
0.000753
Volume (Packaging unit):
753
Volume (Packaging unit) UNIT:
CCM
WEIGHT:
0.024
WIDTH:
0.064
Width:
1
Width (Packaging unit):
64
Width (Packaging unit) UNIT:
mm
Width UNIT:
Inch
Manufactured By:
PFERD
