Product Overview
Info & Guides

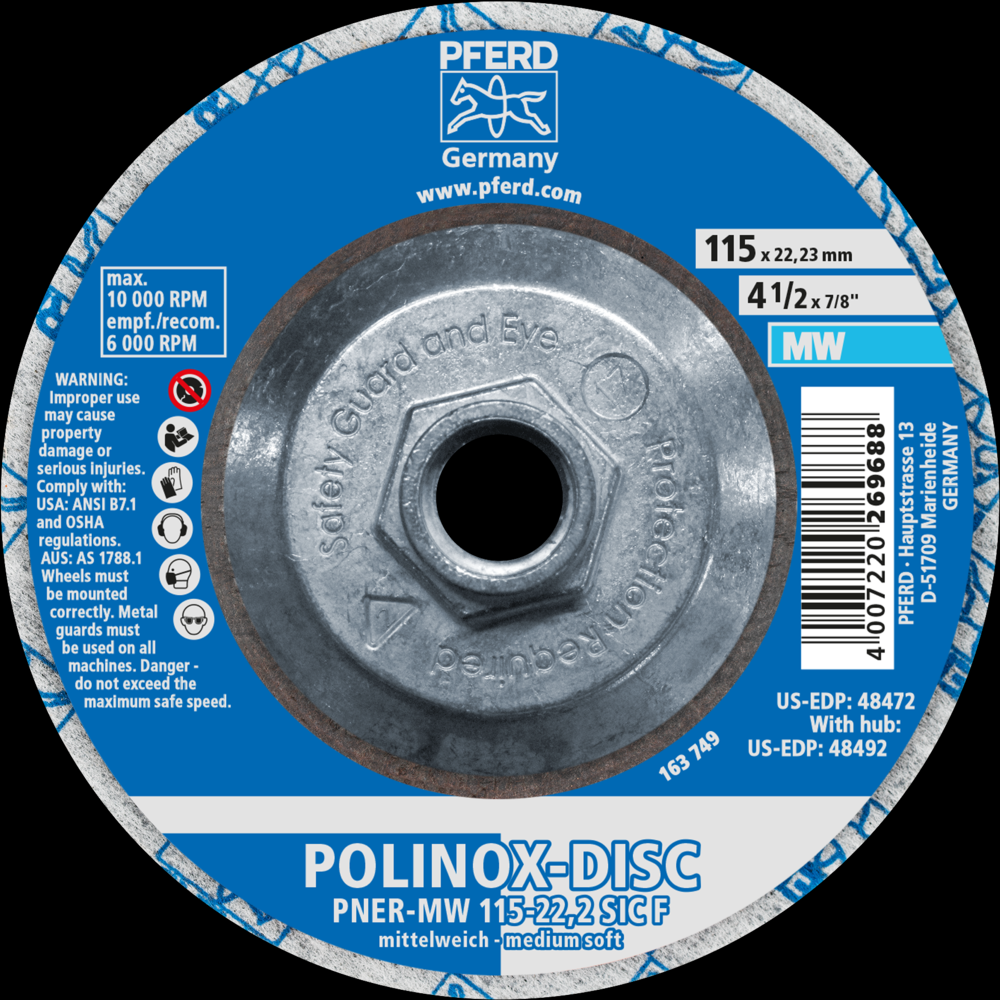

PFERD POLINOX® Unitized Disc, 4-1/2" x 1/2 x 5/8-11, T27,Fine,Soft,3SF,Silicon carbide
Long Description
POLINOX® unitized discs are used for face-down grinding with variable speed angle grinders. Ideal for larger surfaces. The compressed, non-woven material is bonded to a fiberglass back. POLINOX® unitized discs are made of multiple heavily compressed, non-woven layers, which are bonded together by a special grain/resin system. The different combinations of compression, fibres, grain, and the appropriate bond create non-woven products that offer a very good surface finish, high stock removal rate and long tool life. These tools can be used for a wide range of work on surfaces, from relatively coarse grinding to preparing the surface for polishing. Medium-hard version with increased edge strength and service life for coarse blending and polishing tasks. Good for working on edges.
Specifications
Details
Abrasive:
Silicon carbide SiC
Advantages:
Cost-effective due to high abrasive performance and durability.
Advantages 1:
Produces very good surface quality.
Advantages 2:
Can be profiled as desired, enabling optimal adjustment to the contour.
Applications:
Cleaning
Applications 1:
Deburring
Applications 2:
Step-by-step fine grinding
Applications 3:
Roughening
Applications 4:
Structuring (matt finishing, brush matting and satin finishing)
Applications 5:
Surface work
CONTENT_UNIT:
C62
COUNTRY_OF_ORIGIN:
US
DEPTH:
0.121
Dia. external:
4 1/2
Dia. external UNIT:
Inch
Dia. thread:
5/8-11
Drive types:
Angle grinder
Drive types 1:
Cordless angle grinder
EAN pcs.:
4007220271919
EAN type:
AR
Grit size:
fine
Gross weight (Piece):
0.101
Gross weight (Piece) UNIT:
kg
Height (Packaging unit):
121
Height (Packaging unit) UNIT:
mm
INTERNATIONAL_PID (ean):
4007220867426
INTERNATIONAL_PID (edp):
48492
INTERNATIONAL_PID (gtin):
4007220867426
INTERNATIONAL_PID (upc):
97758484923
KEYWORD:
Non-woven products
KEYWORD 1:
POLINOX® unitized discs
KEYWORD 2:
Silicon carbide SiC version
LEADTIME:
3
LENGTH:
0.121
Length (Packaging unit):
121
Length (Packaging unit) UNIT:
mm
MANUFACTURER_NAME:
PFERD
MANUFACTURER_PID:
47802694
MANUFACTURER_TYPE_DESCR:
DISC PNER-MW 115-22,2 C FEIN HUB
Materials that can be worked:
Aluminum
Materials that can be worked 1:
Brass
Materials that can be worked 10:
Steel materials with a hardness > 54 HRC
Materials that can be worked 11:
Steels up to 370 HV (< 38 HRC)
Materials that can be worked 12:
Thermoplastics
Materials that can be worked 13:
Titanium
Materials that can be worked 14:
Titanium alloys
Materials that can be worked 15:
Zinc
Materials that can be worked 2:
Bronze
Materials that can be worked 3:
Cast steel
Materials that can be worked 4:
Cobalt-based alloys
Materials that can be worked 5:
Copper
Materials that can be worked 6:
Fibre-reinforced thermosetting plastics (GRP, CRP)
Materials that can be worked 7:
Hardened, heat-treated steels over 370 HV (38 HRC)
Materials that can be worked 8:
Nickel-based alloys (e.g. Inconell and Hastelloy)
Materials that can be worked 9:
Stainless steel (INOX)
NO_CU_PER_OU:
1
ORDER_UNIT:
C62
Output name <= 80 characters:
PFERD POLINOX® Unitized Disc, 4-1/2" x 1/2 x 5/8-11, T27,Fine,Soft,3SF,Silicon carbide
PFERDERGONOMICS:
PFERDERGONOMICS recommends POLINOX® grinding discs to reduce vibration and noise produced during use and to improve comfort when working.
Product issue name web for bmecat:
POLINOX discs PNER
PRODUCT_ORDER:
40
prop65:
Warning: Cancer -- www.P65Warnings.ca.gov
QUANTITY_INTERVAL:
5
QUANTITY_MIN:
5
Recommendations for use:
Considerably reduce peripheral speed for work on materials with poor heat-conducting properties, e.g. titanium and stainless steel.
Recommendations for use 1:
For the best performance, use with a recommended peripheral speed of 3,000-6,000 SFPM. This provides an ideal compromise between stock removal rate, surface quality, thermal load on the workpiece and tool wear.
REFERENCE_FEATURE_GROUP_ID:
P_16021_179790
RPM, max.:
10000
RPM, max. UNIT:
RPM
RPM, optimum:
6000
RPM, optimum UNIT:
RPM
Safety notes:
For safety reasons, the maximum permitted rotational speed indicated must never be exceeded.
SEGMENT:
Fine grinding and finishing products
SPECIAL_TREATMENT_CLASS:
Warning: Cancer -- www.P65Warnings.ca.gov
Specification:
3SF
TIME_BASE:
dayofweek
TIME_VALUE_END:
5
TIME_VALUE_START:
1
UNSPSC 25.0901:
31191506
UPC pcs.:
0
UPC type:
UC
UPC VE:
97758484923
Version:
MW (medium-soft)
VOLUME:
0.00288
Volume (Packaging unit):
2880
Volume (Packaging unit) UNIT:
CCM
WEIGHT:
0.101
WIDTH:
0.121
Width:
1/2
Width (Packaging unit):
121
Width (Packaging unit) UNIT:
mm
Width UNIT:
Inch
Manufactured By:
PFERD
