Part Number: 47000594 / Vendor ID #: 1139477
PFERD 47000594
by PFERD
Call for Price
Item Sales Info
Add To Wishlist
Compare Item
Email
Print
Availability
- Manufacturer availability unknown.
Dimensions
Info & Guides

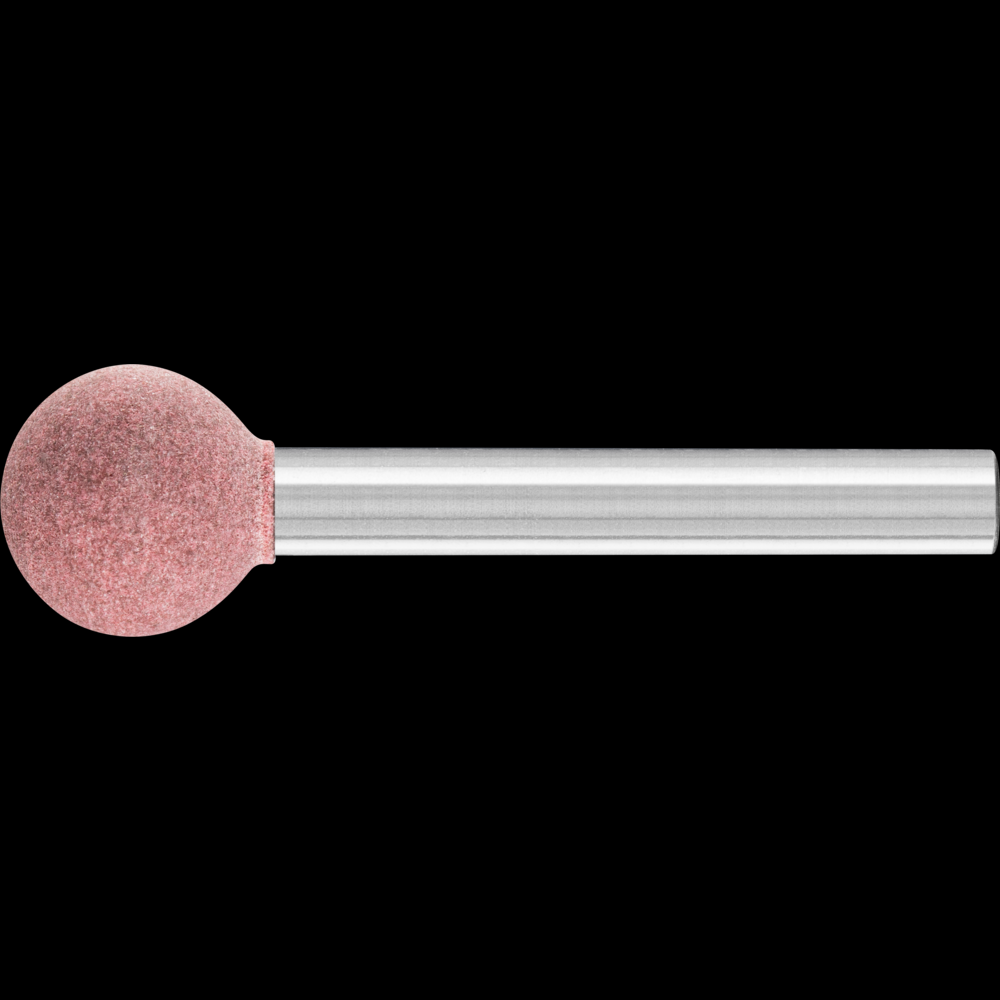

PFERD Poliflex® Mounted Point, Rubber Bond, A26 Shape, 120 Grit, 1/4" Shank
Poliflex® fine grinding tools are manufactured with high shape accuracy, outstandingly consistent quality and tight dimensional tolerances. They are ideally suited to fine grinding, structuring and preparations for polishing work, and are very frequently used for tool and mould-making applications. Poliflex® finishing points with the rubber bond are manufactured with pink aluminum oxide. The rubber (GR) bond is an elastomer-based soft bond. Ideal for use on surfaces. Finishing point in spherical shape for fine grinding inner radii, contours and transitions.
Abrasive:
Aluminium oxide A
Advantages:
Produces a fine, shiny surface finish.
Advantages 1:
Soft grinding due to soft, elastic bond.
Advantages 2:
Produces very good surface quality.
Advantages 3:
Cost-effective due to durability and high stock removal rate.
Advantages 4:
Highly convenient to use due to precise concentricity.
Applications:
Step-by-step fine grinding
Bond:
GR
CONTENT_UNIT:
C62
COUNTRY_OF_ORIGIN:
DE
DEPTH:
0.117
Dia. external:
3/5
Dia. external UNIT:
Inch
Dia. shank:
1/4
Dia. shank UNIT:
Inch
Drive types:
Flexible shaft drive
Drive types 1:
Straight grinder
EAN pcs.:
4007220291702
EAN type:
AR
Grit size:
120
Gross weight (Piece):
0.026
Gross weight (Piece) UNIT:
kg
Height (Packaging unit):
117
Height (Packaging unit) UNIT:
mm
INTERNATIONAL_PID (ean):
4007220451694
INTERNATIONAL_PID (edp):
36431
INTERNATIONAL_PID (gtin):
4007220451694
INTERNATIONAL_PID (upc):
97758364317
KEYWORD:
Bonded abrasives
KEYWORD 1:
Poliflex® fine grinding points
KEYWORD 2:
GR bond
LEADTIME:
3
LENGTH:
0.18
Length (Packaging unit):
180
Length (Packaging unit) UNIT:
mm
Length, shank:
1 1/2
Length, shank UNIT:
Inch
MANUFACTURER_NAME:
PFERD
MANUFACTURER_PID:
47000594
MANUFACTURER_TYPE_DESCR:
PF KU 15 6,3 AR 120 GR
Materials that can be worked:
Cast steel
Materials that can be worked 1:
Cobalt-based alloys
Materials that can be worked 2:
Hardened, heat-treated steels over 370 HV (38 HRC)
Materials that can be worked 3:
Nickel-based alloys (e.g. Inconell and Hastelloy)
Materials that can be worked 4:
Stainless steel (INOX)
Materials that can be worked 5:
Steel materials with a hardness > 54 HRC
Materials that can be worked 6:
Steels up to 370 HV (< 38 HRC)
NO_CU_PER_OU:
1
ORDER_UNIT:
C62
Output name <= 80 characters:
PFERD Poliflex® Mounted Point, Rubber Bond, A26 Shape, 120 Grit, 1/4" Shank
Product issue name web for bmecat:
Poliflex grinding points
PRODUCT_ORDER:
100
prop65:
Warning: Cancer and Reproductive Harm -- www.P65Warnings.ca.gov
QUANTITY_INTERVAL:
10
QUANTITY_MIN:
10
Recommendations for use:
Depending on the intended use, profile using a dressing diamond or ceramic dressing stone at a low rotational speed.
Recommendations for use 1:
For best performance, use at a recommended peripheral speed of 2,000-2,400 SFPM.
REFERENCE_FEATURE_GROUP_ID:
P_16028_179810
RPM max. 1 inch overhang:
40410
RPM max. 1 inch overhang UNIT:
RPM
RPM max. 1-2 inch overhang:
49980
RPM max. 1-2 inch overhang UNIT:
RPM
RPM optimum 1-2 inch overhang:
14000
RPM optimum 1-2 inch overhang UNIT:
RPM
Safety notes:
For safety reasons, the maximum permitted rotational speed indicated must never be exceeded.
Safety notes 1:
The clamping length of the shank must be at least 1/2".
SEGMENT:
Fine grinding and finishing products
Shape:
A 26
SPECIAL_TREATMENT_CLASS:
Warning: Cancer and Reproductive Harm -- www.P65Warnings.ca.gov
TIME_BASE:
dayofweek
TIME_VALUE_END:
5
TIME_VALUE_START:
1
UNSPSC 25.0901:
23131500
UPC pcs.:
0
UPC type:
UC
UPC VE:
97758364317
VOLUME:
0.002464
Volume (Packaging unit):
2464
Volume (Packaging unit) UNIT:
CCM
WEIGHT:
0.026
WIDTH:
0.117
Width:
5/8
Width (Packaging unit):
117
Width (Packaging unit) UNIT:
mm
Width UNIT:
Inch
Manufactured By:
PFERD
