Product Overview

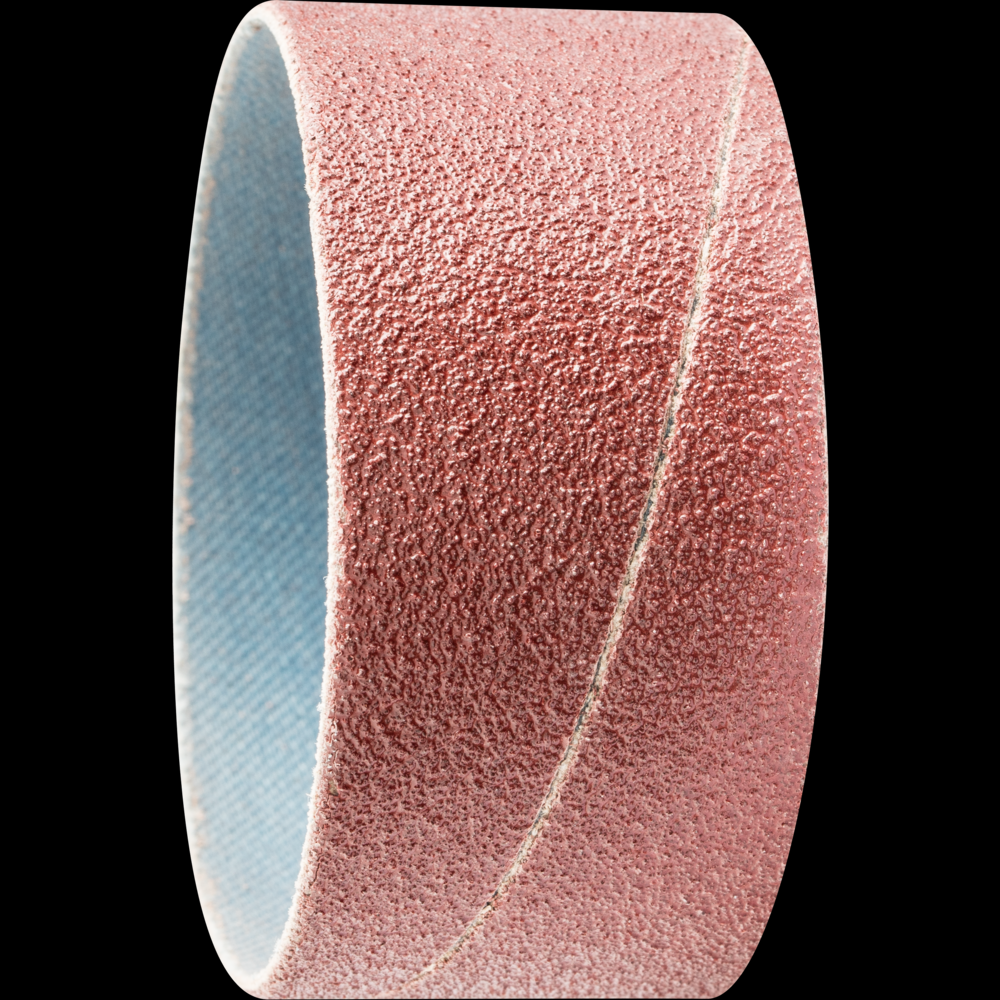

PFERD Spiral Band, 2-3/8" x 1-1/8, Cylindrical Shape, 80 Grit, Aluminum oxide

For universal applications from coarse to fine grinding. In ISO 2421, abrasive spiral bands are designated as "cylindrical sleeves". GSB = bulk pack of abrasive spiral bands

Product Specs

Abrasive:

Aluminium oxide A

Advantages:

Abrasive spiral bands fit securely on the rubber drum holder as the holder expands during use.

Advantages 1:

Outstanding service life even under the toughest work conditions, due to special manufacturing.

Advantages 2:

Highest possible cost-effectiveness due to particularly high stock removal rate and aggressiveness of the abrasive.

Applications:

Deburring

Applications 1:

Step-by-step fine grinding

Applications 2:

Leveling

Applications 3:

Roughening

Applications 4:

Sharpening

Applications 5:

Surface work

Applications 6:

Work on weld seams

Applications 7:

Working on edges

CONTENT_UNIT:

C62

COUNTRY_OF_ORIGIN:

DE

DEPTH:

0.153

Dia. external:

2 3/8

Dia. external UNIT:

Inch

Drive types:

Flexible shaft drive

Drive types 1:

Straight grinder

EAN pcs.:

4007220246344

EAN type:

AR

Grit size:

80

Gross weight (Piece):

0.012

Gross weight (Piece) UNIT:

kg

Height:

1 1/8

Height (Packaging unit):

153

Height (Packaging unit) UNIT:

mm

Height UNIT:

Inch

INTERNATIONAL_PID (ean):

4007220148563

INTERNATIONAL_PID (edp):

41298

INTERNATIONAL_PID (gtin):

4007220148563

INTERNATIONAL_PID (upc):

97758412988

KEYWORD:

Coated abrasives

KEYWORD 1:

Abrasive spiral bands, cylindrical

KEYWORD 2:

Aluminum oxide A

LEADTIME:

3

LENGTH:

0.263

Length (Packaging unit):

263

Length (Packaging unit) UNIT:

mm

MANUFACTURER_NAME:

PFERD

MANUFACTURER_PID:

42211108

MANUFACTURER_TYPE_DESCR:

GSB 6030 A 80

Materials that can be worked:

Aluminum

Materials that can be worked 1:

Annealed cast iron

Materials that can be worked 10:

Stainless steel (INOX)

Materials that can be worked 11:

Steel materials with a hardness > 54 HRC

Materials that can be worked 12:

Steels up to 370 HV (< 38 HRC)

Materials that can be worked 13:

Thermoplastics

Materials that can be worked 2:

Brass

Materials that can be worked 3:

Bronze

Materials that can be worked 4:

Cast steel

Materials that can be worked 5:

Cobalt-based alloys

Materials that can be worked 6:

Copper

Materials that can be worked 7:

Fibre-reinforced thermosetting plastics (GRP, CRP)

Materials that can be worked 8:

Grey/nodular cast iron (GG/GJL, GGG/GJS)

Materials that can be worked 9:

Hardened, heat-treated steels over 370 HV (38 HRC)

NO_CU_PER_OU:

1

Ordering notes:

Please order rubber drum holder separately.

ORDER_UNIT:

C62

Output name <= 80 characters:

PFERD Spiral Band, 2-3/8" x 1-1/8, Cylindrical Shape, 80 Grit, Aluminum oxide

Product issue name web for bmecat:

Abrasive spiral bands, cylindrical

PRODUCT_ORDER:

40

prop65:

Warning: Cancer -- www.P65Warnings.ca.gov

QUANTITY_INTERVAL:

100

QUANTITY_MIN:

100

Recommendations for use:

To easily change the abrasive spiral bands, give them a slight clockwise twist and pull them up and off. When doing so, leave the rubber drum holder clamped in the power tool.

Recommendations for use 1:

To ensure the abrasive spiral band is securely attached, follow the minimum speed for the rubber drum holder.

Recommendations for use 2:

For the best performance, use with a recommended peripheral speed of 4,000-6,000 SFPM.

Recommendations for use 3:

Use the appropriate grinding oil for the material to significantly increase the service life and the abrasive performance of the discs.

REFERENCE_FEATURE_GROUP_ID:

P_16010_179768

RPM, optimum, from:

6500

RPM, optimum, from UNIT:

RPM

RPM, optimum, to:

9500

RPM, optimum, to UNIT:

RPM

Safety notes:

The maximum permitted peripheral speed is 6,000 SFPM.

Safety notes 1:

For safety reasons, the maximum permitted rotational speed indicated must never be exceeded.

Safety notes 2:

Do not allow abrasive spiral bands to protrude beyond the rubber drum holder.

SEGMENT:

Fine grinding and finishing products

SPECIAL_TREATMENT_CLASS:

Warning: Cancer -- www.P65Warnings.ca.gov

TIME_BASE:

dayofweek

TIME_VALUE_END:

5

TIME_VALUE_START:

1

UNSPSC 25.0901:

23131508

UPC pcs.:

0

UPC type:

UC

UPC VE:

97758412988

VOLUME:

0.0152

Volume (Packaging unit):

15200

Volume (Packaging unit) UNIT:

CCM

WEIGHT:

0.012

WIDTH:

0.153

Width (Packaging unit):

153

Width (Packaging unit) UNIT:

mm

Manufacturer Info

Manufactured By:

PFERD
