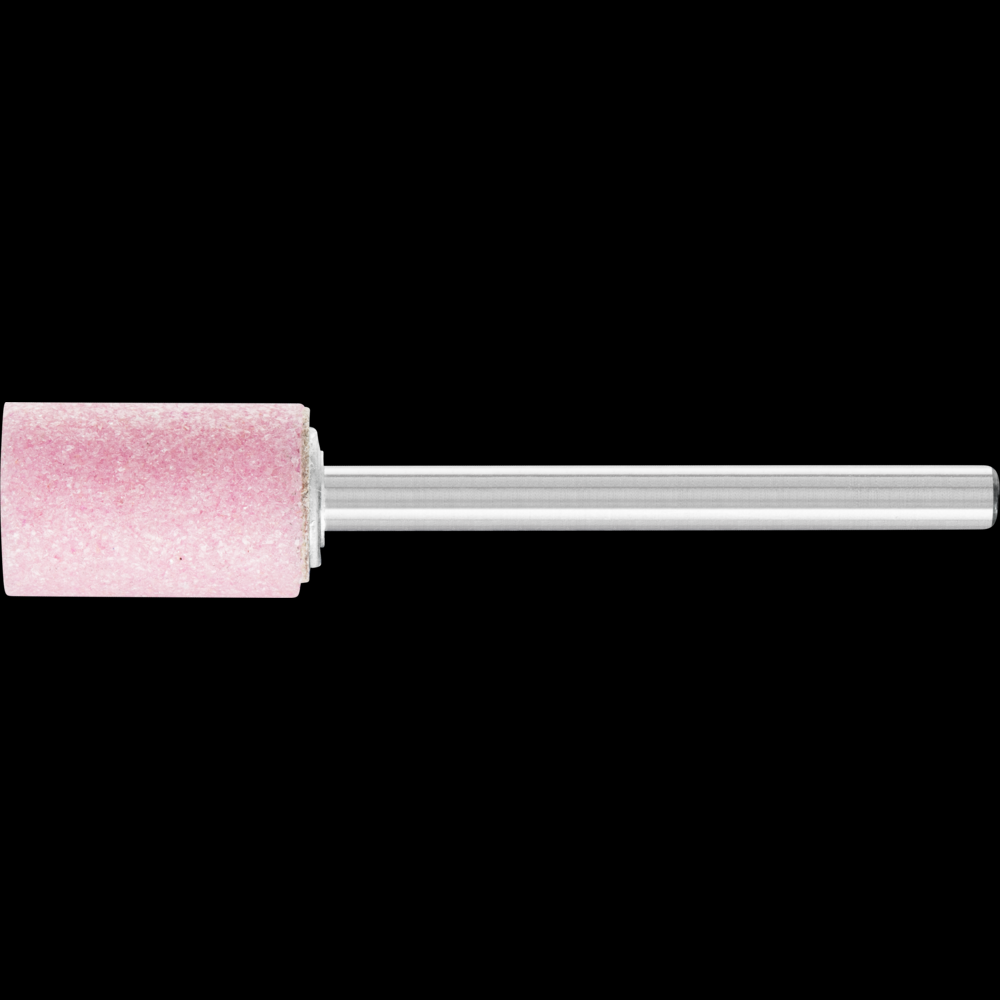

PFERD Vitrified Mounted Point, STEEL EDGE, 5/16" x 1/2, 80 Grit, W170, AO, 1/8" Shank

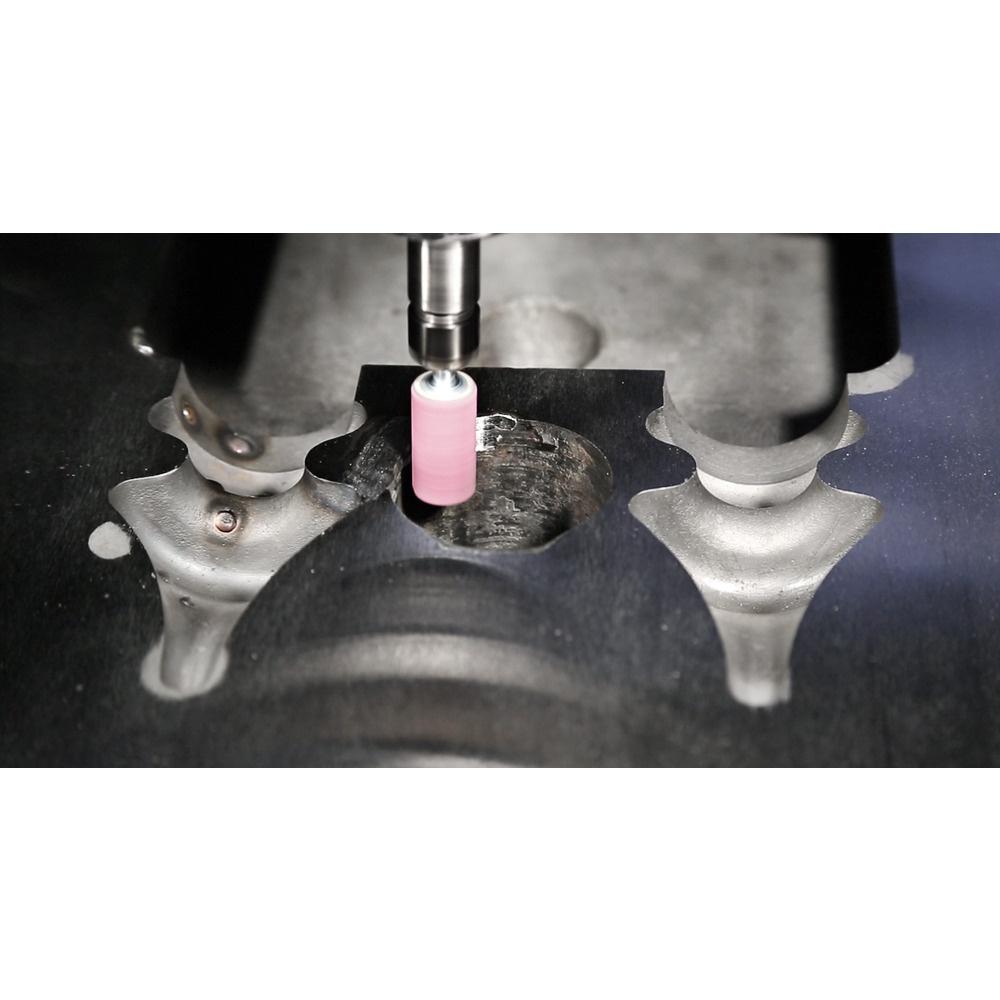

The STEEL EDGE type is ideal for edge grinding and deburring work on steel and cast steel components. Its applications also include grinding of chamfers in preparation for weld seams and grinding of contours. The cylindrical shape is ideal for grinding bores, radii and contours.
Advantages:
Long service life and low wear due to hard, dimensionally stable bond.
Advantages 1:
Cost-effective due to high edge stability, even on low-speed power tools.
Advantages 2:
Ideal for work on edges.
Applications:
Deburring
Applications 1:
Finishing
Applications 2:
Grinding out
Applications 3:
Grouting
Applications 4:
Leveling
Applications 5:
Surface work
Applications 6:
Work on weld seams
Applications 7:
Working on edges (chamfering, rounding)
CONTENT_UNIT:
C62
COUNTRY_OF_ORIGIN:
DE
CUSTOMS_NUMBER:
6804221000
DEPTH:
0.097
Dia. external:
5/16
Dia. external UNIT:
Inch
Dia. shank:
1/8
Dia. shank UNIT:
Inch
Drive types:
Flexible shaft drive
Drive types 1:
Straight grinder
EAN pcs.:
4007220259795
EAN type:
AR
Grit size:
80
Gross weight (Piece):
0.005
Gross weight (Piece) UNIT:
kg
Height (Packaging unit):
97
Height (Packaging unit) UNIT:
mm
INTERNATIONAL_PID (ean):
4007220116319
INTERNATIONAL_PID (edp):
33446
INTERNATIONAL_PID (gtin):
4007220116319
INTERNATIONAL_PID (upc):
97758334464
KEYWORD:
STEEL EDGE mounted points
LEADTIME:
3
LENGTH:
0.146
Length (Packaging unit):
146
Length (Packaging unit) UNIT:
mm
Length, shank:
1 1/4
Length, shank UNIT:
Inch
MANUFACTURER_NAME:
PFERD
MANUFACTURER_PID:
35330278
MANUFACTURER_TYPE_DESCR:
W 170 3,1 AR 80 O5V STEEL EDGE
Materials that can be worked:
Cast steel
Materials that can be worked 1:
Steel
NO_CU_PER_OU:
1
ORDER_UNIT:
C62
Output name <= 80 characters:
PFERD Vitrified Mounted Point, STEEL EDGE, 5/16" x 1/2, 80 Grit, W170, AO, 1/8" Shank
Product issue name web for bmecat:
Mounted points - cylindrical type STEEL EDGE
PRODUCT_ORDER:
1290
prop65:
Warning: Cancer and Reproductive Harm -- www.P65Warnings.ca.gov
QUANTITY_INTERVAL:
10
QUANTITY_MIN:
10
Recommendations for use:
STEEL EDGE mounted points perform best at a peripheral speed of 5,000-7,800 SFPM.
REFERENCE_FEATURE_GROUP_ID:
P_15063_169534
RPM max. 1 inch overhang:
33000
RPM max. 1 inch overhang UNIT:
RPM
RPM max. 1-2 inch overhang:
52500
RPM max. 1-2 inch overhang UNIT:
RPM
RPM optimum 1-2 inch overhang:
52500
RPM optimum 1-2 inch overhang UNIT:
RPM
Safety notes:
The maximum permitted rotational speed relates to the unsupported shank length of 1/2".
SEGMENT:
Mounted points
Shape:
W 170
SPECIAL_TREATMENT_CLASS:
Warning: Cancer and Reproductive Harm -- www.P65Warnings.ca.gov
TIME_BASE:
dayofweek
TIME_VALUE_END:
5
TIME_VALUE_START:
1
UNSPSC 25.0901:
23131500
UPC pcs.:
0
UPC type:
UC
UPC VE:
97758334464
VOLUME:
9.744e-005
Volume (Packaging unit):
97.44
Volume (Packaging unit) UNIT:
CCM
WEIGHT:
0.005
WIDTH:
0.097
Width:
1/2
Width (Packaging unit):
97
Width (Packaging unit) UNIT:
mm
Width UNIT:
Inch
Manufactured By:
PFERD
