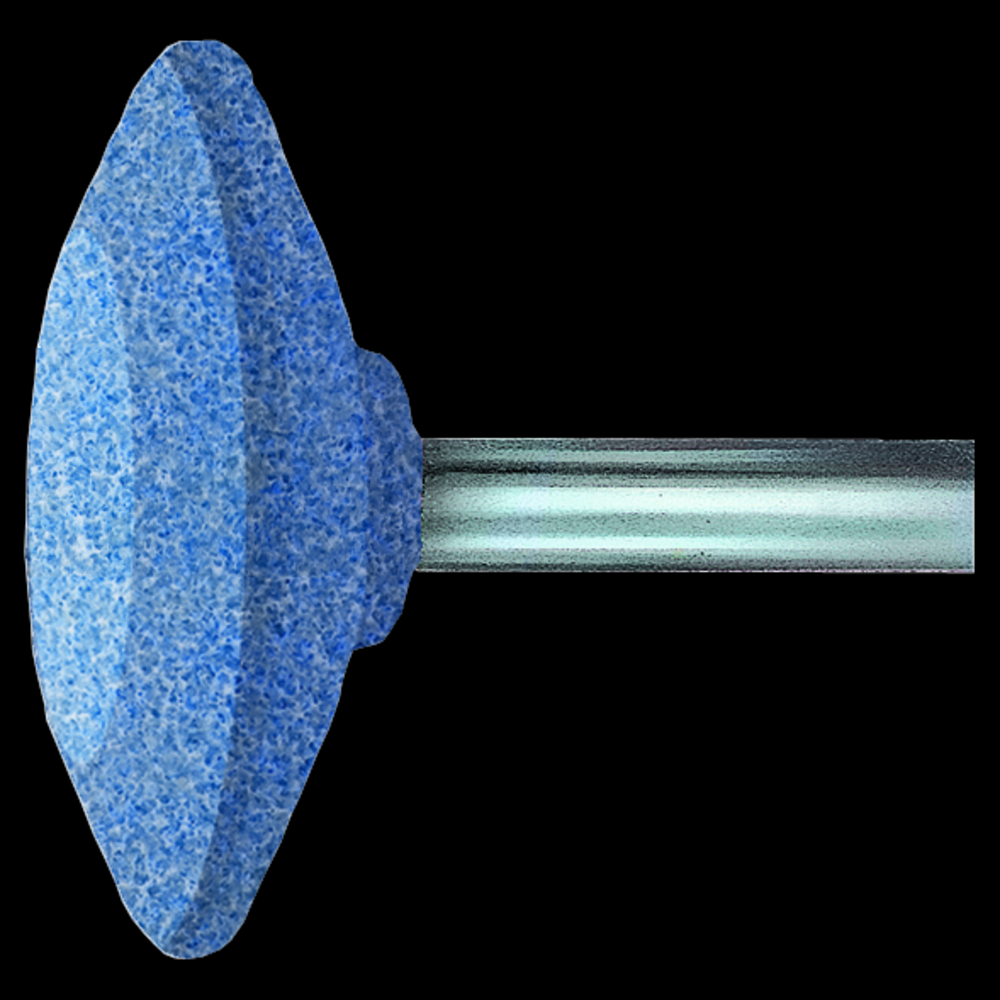

PFERD Vitrified Mounted Point, TOUGH, 1-5/8" x 3/8,80 Grit,A36,Ceramic Oxide,1/4"Shank
Long Description
The TOUGH type is specifically designed for use on titanium materials, nickel-based and cobalt-based alloys, hardened steel components and built-up weld deposits. Its applications include weld dressing on repair welds and reworking on turbine blades during aircraft maintenance and regrinding of repair welds in tool and die-making. Series A mounted points are generally used on larger components. Due to the special shapes of series A mounted points, it is possible to grind in a variety of contours. Applications include grinding out slits and grooves in hard-to-reach areas, machining bores and small holes, and smoothing surfaces.
Specifications
Details
Advantages:
Cool grinding due to the easily broken-down grain mixture.
Advantages 1:
High stock removal rate results in increased productivity.
Advantages 2:
The self-sharpening properties of the ceramic oxide grain provide consistent stock removal rates throughout the life of the product.
Applications:
Deburring
Applications 1:
Finishing
Applications 2:
Grinding out
Applications 3:
Grouting
Applications 4:
Leveling
Applications 5:
Surface work
Applications 6:
Work on weld seams
Applications 7:
Working on edges (chamfering, rounding)
CONTENT_UNIT:
C62
COUNTRY_OF_ORIGIN:
DE
DEPTH:
0.136
Dia. external:
1 5/8
Dia. external UNIT:
Inch
Dia. shank:
1/4
Dia. shank UNIT:
Inch
Drive types:
Flexible shaft drive
Drive types 1:
Straight grinder
EAN pcs.:
4007220007228
EAN type:
AR
Grit size:
80
Gross weight (Piece):
0.034
Gross weight (Piece) UNIT:
kg
Height (Packaging unit):
136
Height (Packaging unit) UNIT:
mm
INTERNATIONAL_PID (edp):
30032
INTERNATIONAL_PID (upc):
97758300322
KEYWORD:
TOUGH mounted points
LEADTIME:
3
LENGTH:
0.221
Length (Packaging unit):
221
Length (Packaging unit) UNIT:
mm
Length, shank:
1 1/2
Length, shank UNIT:
Inch
MANUFACTURER_NAME:
PFERD
MANUFACTURER_PID:
35036279
MANUFACTURER_TYPE_DESCR:
A 36 6,3 AWCO 80 J5V TOUGH
Materials that can be worked:
Cobalt-based alloys
Materials that can be worked 1:
Hardened, heat-treated steels over 370 HV (38 HRC)
Materials that can be worked 2:
High-temperature-resistant materials
Materials that can be worked 3:
Nickel-based alloys (e.g. Inconell and Hastelloy)
Materials that can be worked 4:
Titanium
Materials that can be worked 5:
Titanium alloys
NO_CU_PER_OU:
1
ORDER_UNIT:
C62
Output name <= 80 characters:
PFERD Vitrified Mounted Point, TOUGH, 1-5/8" x 3/8,80 Grit,A36,Ceramic Oxide,1/4"Shank
Product issue name web for bmecat:
Mounted points - Series A TOUGH
PRODUCT_ORDER:
200
prop65:
Warning: Cancer and Reproductive Harm -- www.P65Warnings.ca.gov
QUANTITY_INTERVAL:
10
QUANTITY_MIN:
10
Recommendations for use:
TOUGH mounted points perform best at a peripheral speed of 6,000-9,800 SFPM.
REFERENCE_FEATURE_GROUP_ID:
P_15064_169987
RPM max. 1 inch overhang:
23520
RPM max. 1 inch overhang UNIT:
RPM
RPM max. 1-2 inch overhang:
23520
RPM max. 1-2 inch overhang UNIT:
RPM
RPM optimum 1-2 inch overhang:
21000
RPM optimum 1-2 inch overhang UNIT:
RPM
Safety notes:
The maximum permitted rotational speed relates to the unsupported shank length of 1/2".
SEGMENT:
Mounted points
Shape:
A 36
SPECIAL_TREATMENT_CLASS:
Warning: Cancer and Reproductive Harm -- www.P65Warnings.ca.gov
TIME_BASE:
dayofweek
TIME_VALUE_END:
5
TIME_VALUE_START:
1
UNSPSC 25.0901:
23131500
UPC pcs.:
0
UPC type:
UC
UPC VE:
97758300322
VOLUME:
0.000505
Volume (Packaging unit):
505
Volume (Packaging unit) UNIT:
CCM
WEIGHT:
0.034
WIDTH:
0.136
Width:
3/8
Width (Packaging unit):
136
Width (Packaging unit) UNIT:
mm
Width UNIT:
Inch
