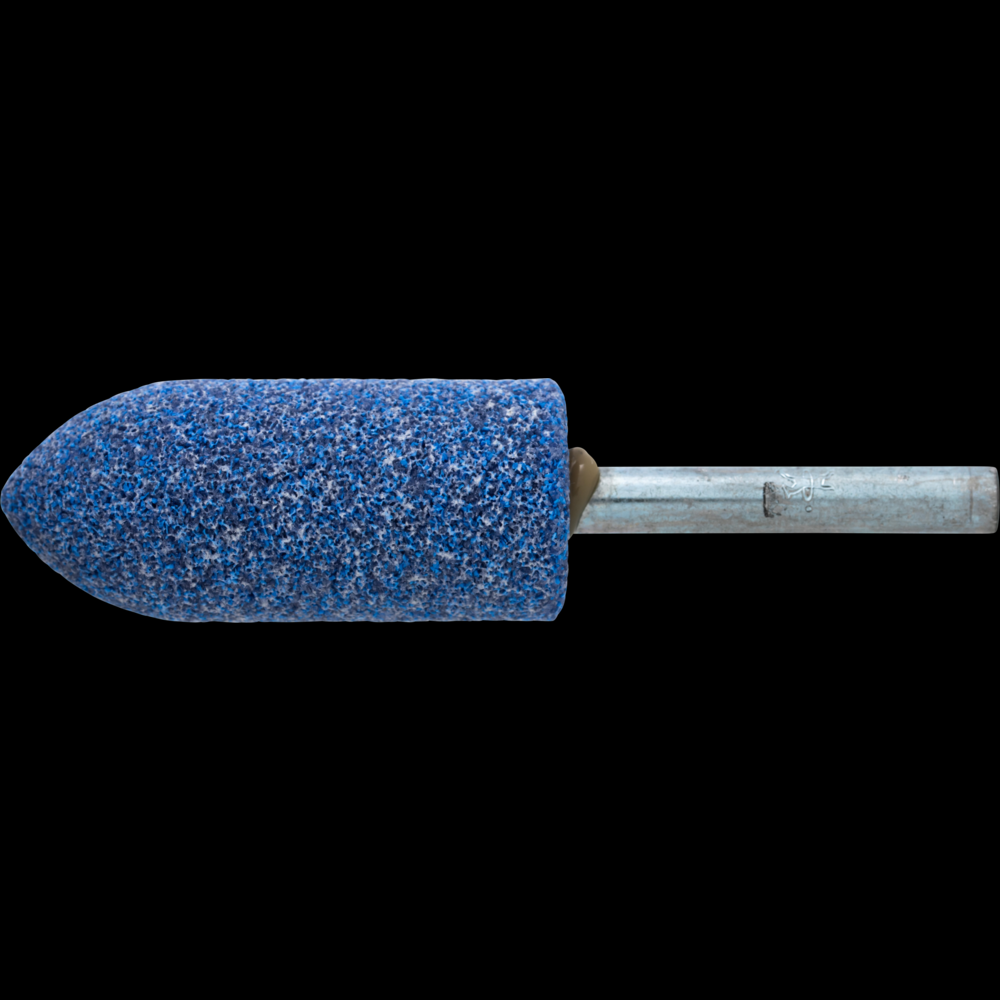

PFERD Vitrified Mounted Point, TOUGH, 7/8" x 2, 46 Grit, A11, Ceramic Oxide,1/4" Shank
The TOUGH type is specifically designed for use on titanium materials, nickel-based and cobalt-based alloys, hardened steel components and built-up weld deposits. Its applications include weld dressing on repair welds and reworking on turbine blades during aircraft maintenance and regrinding of repair welds in tool and die-making. Series A mounted points are generally used on larger components. Due to the special shapes of series A mounted points, it is possible to grind in a variety of contours. Applications include grinding out slits and grooves in hard-to-reach areas, machining bores and small holes, and smoothing surfaces.
Advantages:
Cool grinding due to the easily broken-down grain mixture.
Advantages 1:
High stock removal rate results in increased productivity.
Advantages 2:
The self-sharpening properties of the ceramic oxide grain provide consistent stock removal rates throughout the life of the product.
Applications:
Deburring
Applications 1:
Finishing
Applications 2:
Grinding out
Applications 3:
Grouting
Applications 4:
Leveling
Applications 5:
Surface work
Applications 6:
Work on weld seams
Applications 7:
Working on edges (chamfering, rounding)
CONTENT_UNIT:
C62
COUNTRY_OF_ORIGIN:
DE
CUSTOMS_NUMBER:
6804226000
DEPTH:
0.158
Dia. external:
7/8
Dia. external UNIT:
Inch
Dia. shank:
1/4
Dia. shank UNIT:
Inch
Drive types:
Flexible shaft drive
Drive types 1:
Straight grinder
EAN pcs.:
4007220259474
EAN type:
AR
Grit size:
46
Gross weight (Piece):
0.055
Gross weight (Piece) UNIT:
kg
Height (Packaging unit):
158
Height (Packaging unit) UNIT:
mm
INTERNATIONAL_PID (ean):
4007220847060
INTERNATIONAL_PID (edp):
30010
INTERNATIONAL_PID (gtin):
4007220847060
INTERNATIONAL_PID (upc):
97758300100
KEYWORD:
TOUGH mounted points
LEADTIME:
3
LENGTH:
0.261
Length (Packaging unit):
261
Length (Packaging unit) UNIT:
mm
Length, shank:
1 1/2
Length, shank UNIT:
Inch
MANUFACTURER_NAME:
PFERD
MANUFACTURER_PID:
35011281
MANUFACTURER_TYPE_DESCR:
A 11 6,3 AWCO 46 J5V TOUGH
Materials that can be worked:
Cobalt-based alloys
Materials that can be worked 1:
Hardened, heat-treated steels over 370 HV (38 HRC)
Materials that can be worked 2:
High-temperature-resistant materials
Materials that can be worked 3:
Nickel-based alloys (e.g. Inconell and Hastelloy)
Materials that can be worked 4:
Titanium
Materials that can be worked 5:
Titanium alloys
NO_CU_PER_OU:
1
ORDER_UNIT:
C62
Output name <= 80 characters:
PFERD Vitrified Mounted Point, TOUGH, 7/8" x 2, 46 Grit, A11, Ceramic Oxide,1/4" Shank
Product issue name web for bmecat:
Mounted points - Series A TOUGH
PRODUCT_ORDER:
70
prop65:
Warning: Cancer and Reproductive Harm -- www.P65Warnings.ca.gov
QUANTITY_INTERVAL:
10
QUANTITY_MIN:
10
Recommendations for use:
TOUGH mounted points perform best at a peripheral speed of 6,000-9,800 SFPM.
REFERENCE_FEATURE_GROUP_ID:
P_15064_169987
RPM max. 1 inch overhang:
15100
RPM max. 1 inch overhang UNIT:
RPM
RPM max. 1-2 inch overhang:
19860
RPM max. 1-2 inch overhang UNIT:
RPM
RPM optimum 1-2 inch overhang:
19860
RPM optimum 1-2 inch overhang UNIT:
RPM
Safety notes:
The maximum permitted rotational speed relates to the unsupported shank length of 1/2".
SEGMENT:
Mounted points
Shape:
A 11
SPECIAL_TREATMENT_CLASS:
Warning: Cancer and Reproductive Harm -- www.P65Warnings.ca.gov
TIME_BASE:
dayofweek
TIME_VALUE_END:
5
TIME_VALUE_START:
1
UNSPSC 25.0901:
23131500
UPC pcs.:
0
UPC type:
UC
UPC VE:
97758300100
VOLUME:
0.000857
Volume (Packaging unit):
857
Volume (Packaging unit) UNIT:
CCM
WEIGHT:
0.055
WIDTH:
0.158
Width:
2
Width (Packaging unit):
158
Width (Packaging unit) UNIT:
mm
Width UNIT:
Inch
