PFERD 35005303

PFERD 35005303 by PFERD

Call For Price
  • Part Number: 35005303
  • UPC:
  • Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview
Info & Guides

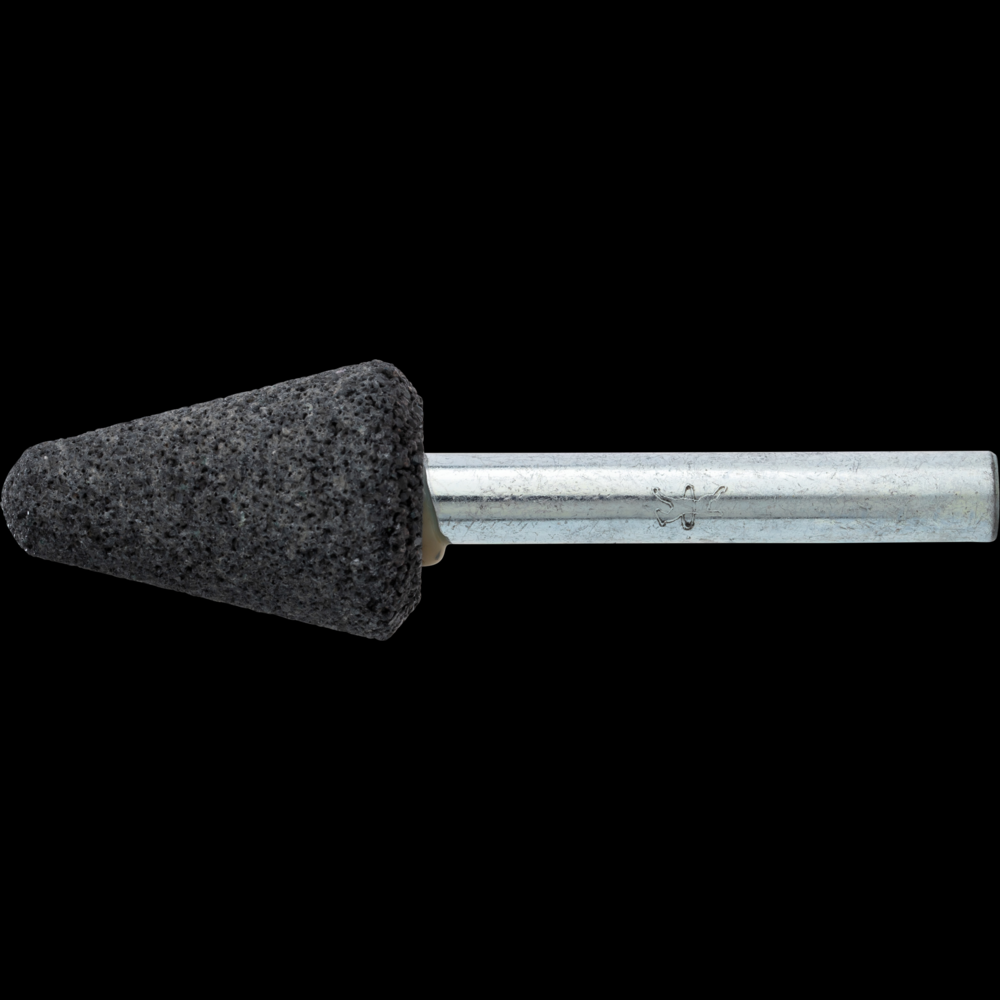

PFERD Vitrified Mounted Point, CAST EDGE, 3/4" x 1-1/8, 30 Grit, A5, SiC, 1/4" Shank
Long Description
Series A mounted points are generally used on larger components. Due to the special shapes of series A mounted points, it is possible to grind in a variety of contours. Applications include grinding out slits and grooves in hard-to-reach areas, machining bores and small holes, and smoothing surfaces. The CAST EDGE type is designed to work with high cutting speeds for edge grinding and grinding out sharp burrs, sand inclusions, and scale in grey and nodular cast iron. Its main applications include removal of sharp burrs and grinding out sand contamination and metal contamination on cast material parts.
Specifications
Details
Applications:
Deburring
Applications 1:
Finishing
Applications 2:
Grinding out
Applications 3:
Grouting
Applications 4:
Leveling
Applications 5:
Surface work
Applications 6:
Work on weld seams
Applications 7:
Working on edges (chamfering, rounding)
CONTENT_UNIT:
C62
COUNTRY_OF_ORIGIN:
DE
DEPTH:
0.136
Dia. external:
3/4
Dia. external UNIT:
Inch
Dia. shank:
1/4
Dia. shank UNIT:
Inch
Drive types:
Flexible shaft drive
Drive types 1:
Straight grinder
EAN pcs.:
4007220007303
EAN type:
AR
Grit size:
30
Gross weight (Piece):
0.023
Gross weight (Piece) UNIT:
kg
Height (Packaging unit):
136
Height (Packaging unit) UNIT:
mm
INTERNATIONAL_PID (edp):
31042
INTERNATIONAL_PID (upc):
97758310420
KEYWORD:
CAST EDGE mounted points
LEADTIME:
3
LENGTH:
0.221
Length (Packaging unit):
221
Length (Packaging unit) UNIT:
mm
Length, shank:
1 1/2
Length, shank UNIT:
Inch
MANUFACTURER_NAME:
PFERD
MANUFACTURER_PID:
35005303
MANUFACTURER_TYPE_DESCR:
A 5 6,3 CU 30 R 5V CAST EDGE
Materials that can be worked:
Annealed cast iron
Materials that can be worked 1:
Grey/nodular cast iron (GG/GJL, GGG/GJS)
NO_CU_PER_OU:
1
ORDER_UNIT:
C62
Output name <= 80 characters:
PFERD Vitrified Mounted Point, CAST EDGE, 3/4" x 1-1/8, 30 Grit, A5, SiC, 1/4" Shank
Product issue name web for bmecat:
Mounted points - Series A CAST EDGE
PRODUCT_ORDER:
50
prop65:
Warning: Cancer and Reproductive Harm -- www.P65Warnings.ca.gov
QUANTITY_INTERVAL:
10
QUANTITY_MIN:
10
Recommendations for use:
CAST EDGE mounted points perform best at a peripheral speed of 6,000-9,800 SFPM.
REFERENCE_FEATURE_GROUP_ID:
P_15067_170085
RPM max. 1 inch overhang:
33750
RPM max. 1 inch overhang UNIT:
RPM
RPM max. 1-2 inch overhang:
45000
RPM max. 1-2 inch overhang UNIT:
RPM
RPM optimum 1-2 inch overhang:
45000
RPM optimum 1-2 inch overhang UNIT:
RPM
Safety notes:
The maximum permitted rotational speed relates to the unsupported shank length of 1/2".
SEGMENT:
Mounted points
Shape:
A 5
SPECIAL_TREATMENT_CLASS:
Warning: Cancer and Reproductive Harm -- www.P65Warnings.ca.gov
TIME_BASE:
dayofweek
TIME_VALUE_END:
5
TIME_VALUE_START:
1
UNSPSC 25.0901:
23131500
UPC pcs.:
0
UPC type:
UC
UPC VE:
97758310420
VOLUME:
0.000505
Volume (Packaging unit):
505
Volume (Packaging unit) UNIT:
CCM
WEIGHT:
0.023
WIDTH:
0.136
Width:
1 1/8
Width (Packaging unit):
136
Width (Packaging unit) UNIT:
mm
Width UNIT:
Inch
Manufactured By:
PFERD
