PFERD 21823325 by PFERD
Call For Price
- Part Number: 21823325
- UPC:
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview
Info & Guides

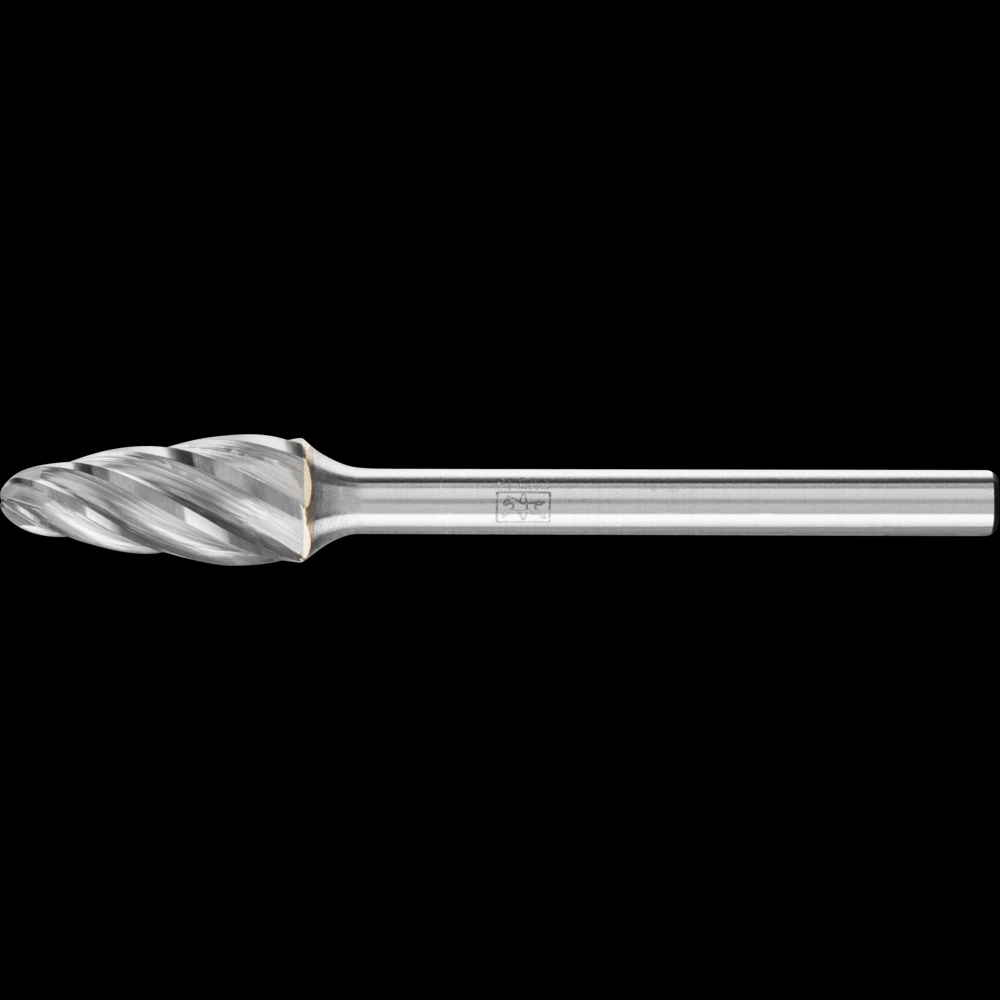

PFERD Carbide Bur SF-51 Tree Shape ALU Cut 1/4" x 1/2" x 1/8" Shank
Long Description
PFERD has developed the ALU cut specifically for stock removal on aluminum. This cut achieves a high stock removal rate. Tree bur with radius end, shape F.
Specifications
Details
Category:
Abrasives
Subcategory:
Points & Burrs
Subtype:
Burrs
Advantages:
Extremely high stock removal rate.
Advantages 1:
Creates large chips.
Advantages 2:
Reduced material adhesion.
Advantages 3:
Long service life and smooth running.
Advantages 4:
Can be used with peripheral speeds of up to 3,600 SFPM.
Advantages 5:
The highly accurate concentricity enables precise work free from chatter marks. This considerably reduces wear on the bur and power tool or machine.

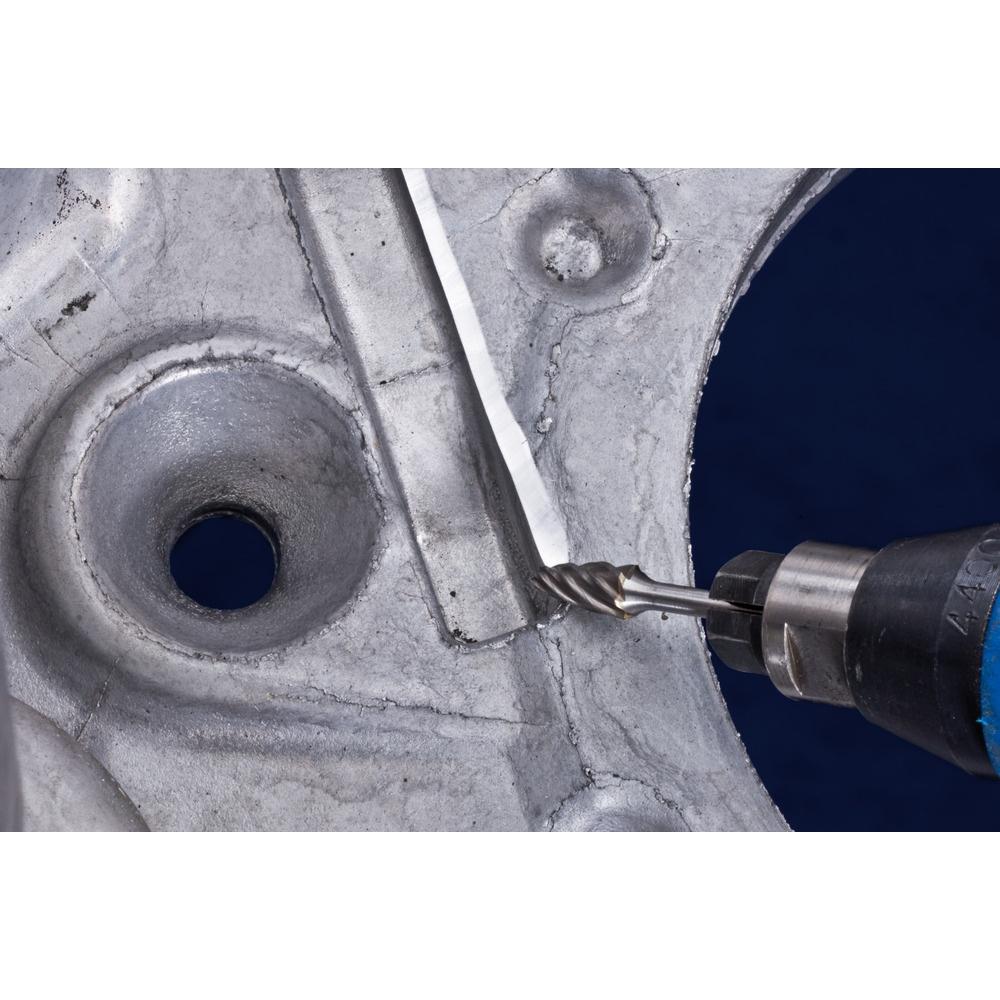

Applications:
Cutting out holes
Applications 1:
Deburring
Applications 2:
Leveling
Applications 3:
Milling
Applications 4:
Milling out
Applications 5:
Surface work
Applications 6:
Work on weld seams
CONTENT_UNIT:
C62
COUNTRY_OF_ORIGIN:
DE
CUSTOMS_NUMBER:
8207703030
Cut:
ALU
DEPTH:
0.017
Dia. external:
1/4
Dia. external UNIT:
Inch
Dia. shank:
1/8
Dia. shank UNIT:
Inch
Drive types:
Flexible shaft drive
Drive types 1:
Tool machine
Drive types 2:
Robot
Drive types 3:
Stationary machines
Drive types 4:
Straight grinder
EAN pcs.:
4007220848098
EAN type:
AR
Gross weight (Piece):
0.007
Gross weight (Piece) UNIT:
kg
Height (Packaging unit):
17
Height (Packaging unit) UNIT:
mm
INTERNATIONAL_PID (edp):
23325
INTERNATIONAL_PID (upc):
97758233255
KEYWORD:
Tungsten carbide burs
KEYWORD 1:
High-performance ALU cut
KEYWORD 2:
Tree shape with radius end RBF
LEADTIME:
3
LENGTH:
0.089
Length (Packaging unit):
89
Length (Packaging unit) UNIT:
mm
Length, cut:
1/2
Length, cut UNIT:
Inch
MANUFACTURER_NAME:
PFERD
MANUFACTURER_PID:
21823325
MANUFACTURER_TYPE_DESCR:
RBF 6,35x12,7x3,17 C ALU
Materials that can be worked:
Aluminum
Materials that can be worked 1:
Brass
Materials that can be worked 10:
Thermoplastics
Materials that can be worked 11:
Tough aluminium alloys
Materials that can be worked 12:
Zinc
Materials that can be worked 2:
Bronze
Materials that can be worked 3:
Copper
Materials that can be worked 4:
Fibre-reinforced thermosetting plastics (GRP, CRP)
Materials that can be worked 5:
Hard aluminium alloys
Materials that can be worked 6:
Hard non-ferrous metal
Materials that can be worked 7:
Plastics
Materials that can be worked 8:
Soft aluminium alloys
Materials that can be worked 9:
Soft non-ferrous metal
NO_CU_PER_OU:
1
ORDER_UNIT:
C62
Output name <= 80 characters:
PFERD Carbide Bur SF-51 Tree Shape ALU Cut 1/4" x 1/2" x 1/8" Shank
Overall length:
1 11/16
Overall length UNIT:
Inch
Product issue name web for bmecat:
High-performance tungsten carbide burs, ALU/Non-Ferrous cut, Tree bur with radius end - Shape F
prop65:
Warning: Cancer -- www.P65Warnings.ca.gov
QUANTITY_INTERVAL:
1
QUANTITY_MIN:
1
Radius:
0.059
Radius UNIT:
Inch
Recommendations for use:
Use the burs on powerful power tools with elastically mounted spindles to avoid unwanted vibration.
Recommendations for use 1:
Observe the recommended rotational speed.
Recommendations for use 2:
The smaller the bur diameter is in the area being used, the higher the recommended rotational speed can be.
Recommendations for use 3:
For the most cost-effective bur use, work with higher rotational/peripheral speeds. For burs with a 1/8" shank diameter, use power tools with a power output of 75 to 300 watts.
REFERENCE_FEATURE_GROUP_ID:
P_15276_178406
RPM from, hard non-ferrous metals:
32000
RPM from, hard non-ferrous metals UNIT:
RPM
RPM from, soft non-ferrous metals:
32000
RPM from, soft non-ferrous metals UNIT:
RPM
RPM from, thermoplastics, fibre-reinforced plastic:
32000
RPM
RPM to, hard non-ferrous metals:
59000
RPM to, hard non-ferrous metals UNIT:
RPM
RPM to, soft non-ferrous metals:
59000
RPM to, soft non-ferrous metals UNIT:
RPM
RPM to, thermoplastics, fibre-reinforced plastics:
59000
RPM
SCTI-No.:
SF-51
SEGMENT:
Milling, holemaking and deburring products
SPECIAL_TREATMENT_CLASS:
Warning: Cancer -- www.P65Warnings.ca.gov
TIME_BASE:
dayofweek
TIME_VALUE_END:
5
TIME_VALUE_START:
1
UNSPSC 25.0901:
23251706
UPC pcs.:
0
UPC type:
UC
UPC VE:
97758233255
VOLUME:
1.8304e-005
Volume (Packaging unit):
18.304
Volume (Packaging unit) UNIT:
CCM
WEIGHT:
0.007
WIDTH:
0.017
Width (Packaging unit):
17
Width (Packaging unit) UNIT:
mm
Manufactured By:
PFERD
