Product Specs

Bed Width:

5.31 in

Center Height:

4.92 in

Chuck Size:

4.92 in

Compound Travel:

4.33 in

Country of Origin:

CN

Distance Between Centers:

20"

Lathes Type:

Bench Top

Longitudinal Feed Rates:

0.002 & 0.012 in

Max Swing over Compound Slide:

5.91 in

Motor HP:

1

Number of Spindle Speeds:

6

Optional Accessories:

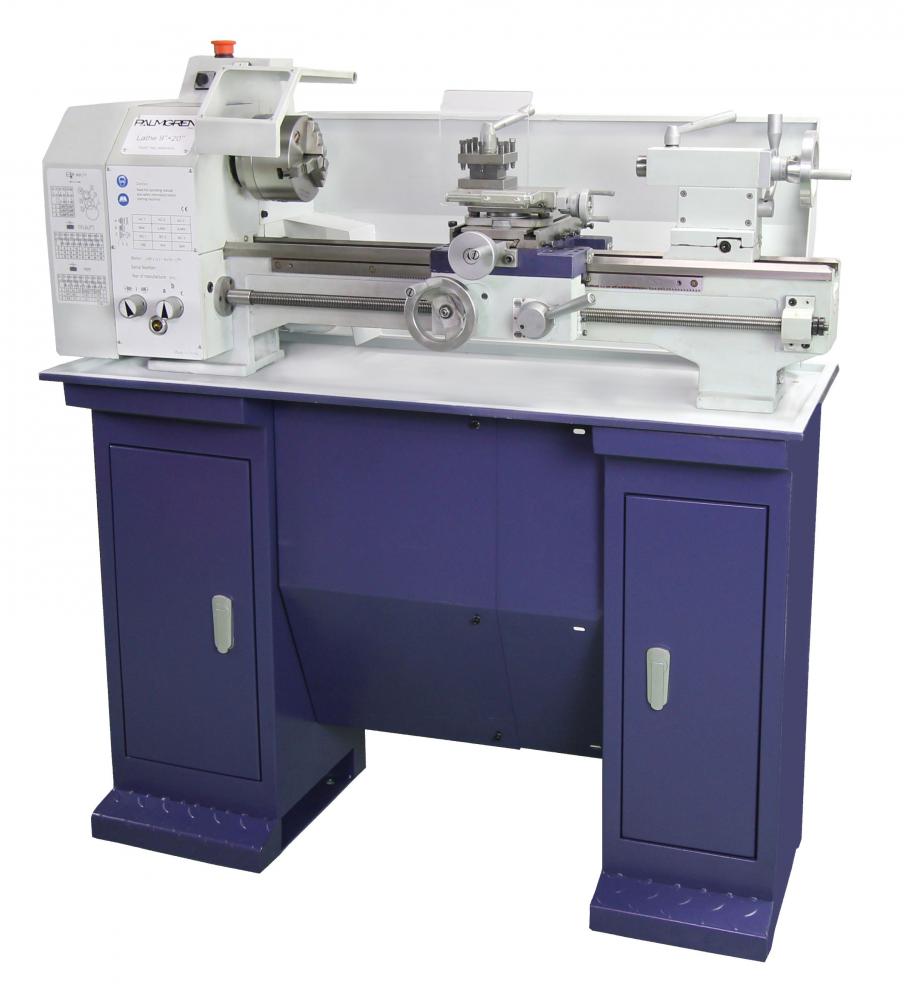

Optional extras include: a heavy duty steel floor stand with hinged doors for added storage (9684505)

Phase:

Single

Pitch:

56 - 8 in

Product Copy:

Palmgren’s 9˝ bench engine lathe delivers the precision, power and versatility to handle a wide range of turning operations normally found in much larger machines. Heavy cast iron construction, smooth power transmission, precision thrust and ball bearin

Product Features:

Dual P5 tapper roller bearings on spindle. Prismatic bed of solid aged cast iron - hardened to HRO 45 - 52 for long life. Precision machine slide with adjustable hand wells with 0.002 in / 0.001 in scales

Retail Height (inches):

19

Retail Length (inches):

50

Retail Weight (lbs):

325

Retail Width (inches):

23

Shipping Height:

18.7

Shipping Length:

49.21

Shipping Weight:

276

Shipping Width:

23

Spindle Bore:

1.02

Spindle Hole:

1.02"

Spindle Taper:

MT4

Stock UOM:

Each

Swing:

9.84 in

Tailstock Sleeve Travel:

2.56 in

Tailstock Taper:

MT2

Tool Holder Seat Height:

0.5 in

Top Slide Travel:

2.76 in

UPC:

726896845043

Voltage:

115

Warranty:

3 Year

Manufacturer Info

Manufactured By:

Palmgren
