![12" X 36" Engine Lathe](/vendors/1176731/large/khzw1c31ebhgvsawnimz.jpg "12" X 36" Engine Lathe")

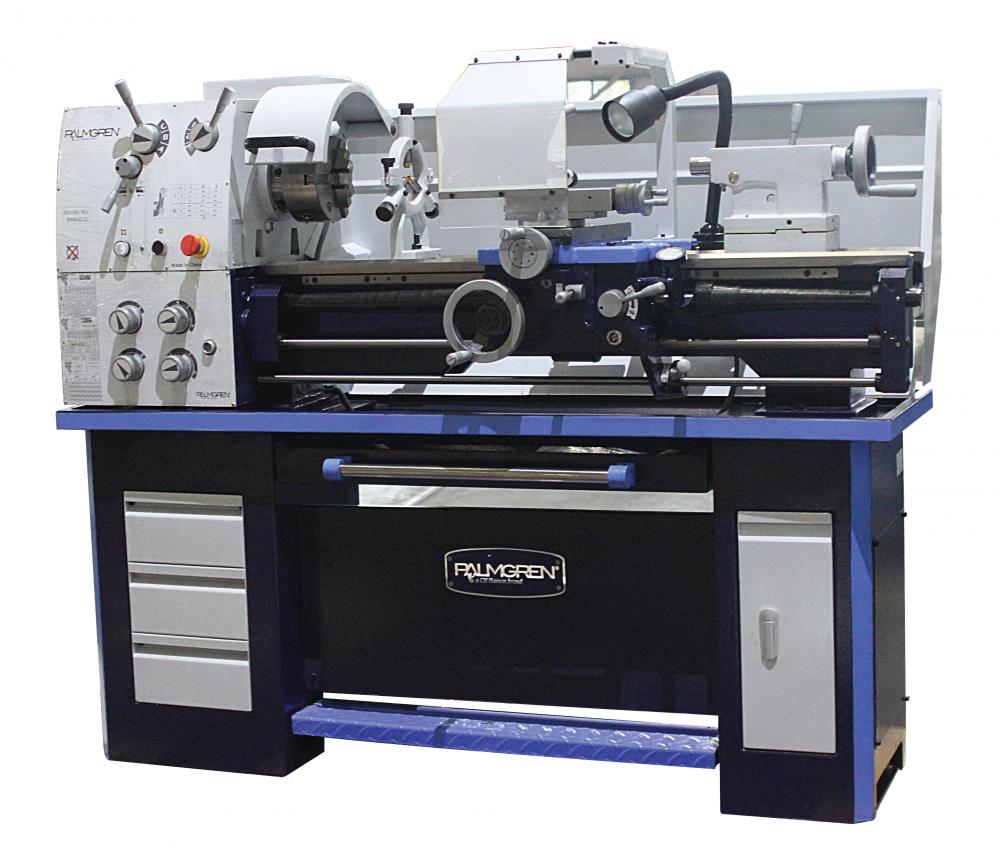

12" X 36" Engine Lathe by Palmgren
Call For Price
- Part Number: 9684510
- UPC:
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Specifications
Details
Bed Width:
7-1/4"
Compound Travel:
3-11/32"
Country of Origin:
CN
Cross Slide Travel:
6-3/8"
Distance Between Centers:
36"
Lathes Type:
Gear Head
Longitudinal Feed Rates:
0.002 - 0.055
Model Number:
D320x920
Motor HP:
2
Number of Spindle Speeds:
18
Overall Dimensions (LxWxH):
66" x 30" x 56"
Phase:
Single
Product Copy:
Palmgren's 12" model engine lathe delivers the precision, power and versatility to handle a wide range of turning operations normally found in much larger machines. Heavy cast construction, smooth power transmission with helical gears, hardened and
Product Features:
LATHE COMES STANDARD WITH. 3 & 4 Jaw Chucks. Splash Guards. Chuck and Tool Post Safety Guard. MT3 Live Center. Inch & Metric Gears for Threading. Steady Rest. Follow Rest. Work Light
Retail Height (inches):
52
Retail Length (inches):
66
Retail Weight (lbs):
1245
Retail Width (inches):
30
Shipping Height:
52
Shipping Length:
66
Shipping Weight:
1298
Shipping Width:
30
Spindle Bore:
1-1/2"
Spindle seat:
Camlock ASA D1-4
Spindle Taper:
MT5
Stock UOM:
Each
Swing Over Bed:
12"
Tailstock Taper:
MT 3
Tailstock Travel:
3-15/16"
Thread Range (In.):
4 to 56
Thread Range (mm):
0.4 - 7
UPC:
726896845104
Voltage:
115/230
Warranty:
3 Year
Manufactured By:
Palmgren
