Product Overview

Solid Carbide Thread Mills Thread Mill End Mill

Niagara Solid Carbide Thread Mills Thread Mill End Mill NTM300-3/4X14NPTF-.500

Category Path

Category:

Threading

Subcategory:

Thread Mills

Subtype:

Solid Threading Mills

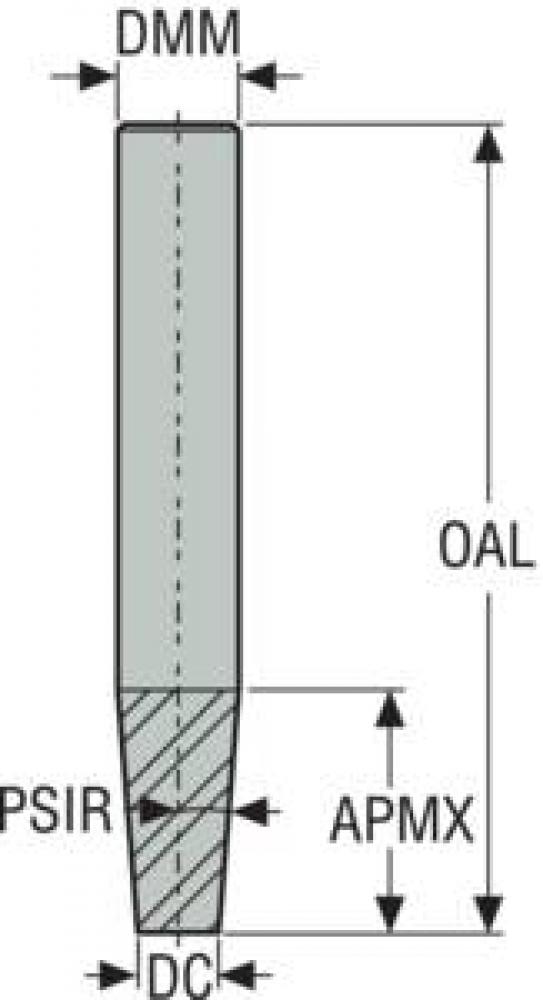

Product Specs

End Type:

Thread Mill

Material:

CARBIDE

APMX - Maximum Depth of Cut:

0.875 in

APMXS - Max Depth Feed Direction:

0.875 in

Application:

Thread Milling

Brand Name:

Niagara

CNSC - Coolant Entry:

No

DC - Cutting Diameter:

0.495 in

DCN - Cutting Diameter Minimum:

0.9062 in

DMM - Shank Diameter:

0.5 in

HAND - Cutting Direction:

Both

Item Quantity:

1

KAPR - Cutting Edge Angle:

88.217 deg

LPR - Protruding Length:

1.781 in

LS - Shank Length:

3.125 in

LUX - Usable Length Maximum:

0.875 in

NOF - Number of Flutes:

4

NT - Number of Teeth:

13.0

OAL - Overall Length:

4 in

Package Height (inches):

0.709

Package Length (inches):

5.118

Package Weight (lbs):

0.026

Package Width (inches):

0.709

PNA - Profile Included Angle:

60.0 deg

Product Series:

0

RE - Corner Radius:

0.002 in

RPM Maximum:

10000

ShankType:

Cylindrical

STA - Step Included Angle:

45.0 deg

TDZ - Thread Diameter Size:

3/4

THFT - Thread form type:

NPTF

TPIN - Threads per Inch Minimum:

14.0

TPIX - Threads Per Inch Maximum:

14.0

Trademark:

NIAGARA CUTTER

TTP - Thread Type:

Both

UPC Number:

04511170000104

VER - Version (Internal/External/Both):

Both

Workpiece Material:

General Purpose

ZEFP - Number of Effective Cutting Edges:

4

ZNP - Number of Peripheral Cutting Edges:

4

Manufacturer Info

Manufactured By:

Niagara
