Part Number: 17004479 / Vendor ID #: 11403
NTM100-1X8UN-.625
by Niagara
Call for Price
Item Sales Info
Add To Wishlist
Compare Item
Email
Print
Availability
- Manufacturer availability unknown.
Dimensions
Solid Carbide Thread Mills Thread Mill End Mill
Niagara Solid Carbide Thread Mills Thread Mill End Mill NTM100-1X8UN-.625
Category:
Threading
Subcategory:
Thread Mills
Subtype:
Solid Threading Mills
End Type:
Thread Mill
Material:
CARBIDE

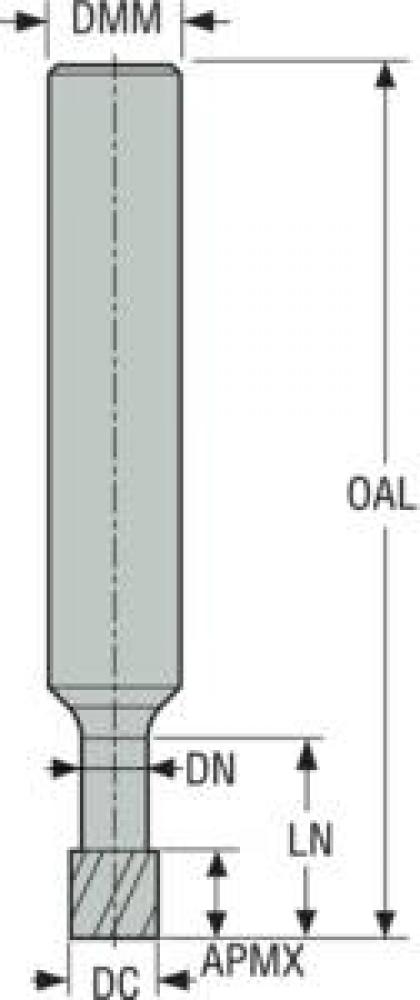

APMX - Maximum Depth of Cut:
1.375 in
APMXS - Max Depth Feed Direction:
1.375 in
Application:
Thread Milling
Brand Name:
Niagara
CNSC - Coolant Entry:
No
DC - Cutting Diameter:
0.62 in
DCN - Cutting Diameter Minimum:
0.875 in
DMM - Shank Diameter:
0.625 in
HAND - Cutting Direction:
Both
Item Quantity:
1
KAPR - Cutting Edge Angle:
90.0 deg
LPR - Protruding Length:
1.906 in
LS - Shank Length:
2.315 in
LUX - Usable Length Maximum:
1.375 in
NOF - Number of Flutes:
4
NT - Number of Teeth:
11.0
OAL - Overall Length:
4 in
Package Height (inches):
0.984
Package Length (inches):
6.299
Package Weight (lbs):
0.053
Package Width (inches):
0.984
PNA - Profile Included Angle:
60.0 deg
Product Series:
0
RE - Corner Radius:
0.01 in
RPM Maximum:
10000
ShankType:
Cylindrical
STA - Step Included Angle:
45.0 deg
TDZ - Thread Diameter Size:
1
THFT - Thread form type:
UN
TPIN - Threads per Inch Minimum:
8.0
TPIX - Threads Per Inch Maximum:
8.0
Trademark:
NIAGARA CUTTER
TTP - Thread Type:
Both
UPC Number:
04479170000107
VER - Version (Internal/External/Both):
Both
Workpiece Material:
General Purpose
ZEFP - Number of Effective Cutting Edges:
4
ZNP - Number of Peripheral Cutting Edges:
4
Manufactured By:
Niagara
