MZN410R-0.500-E1-R120.0-Z4 by Niagara
Call For Price
- Part Number: 02942334
- UPC:
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Variations (11)
Product Overview
Long Description

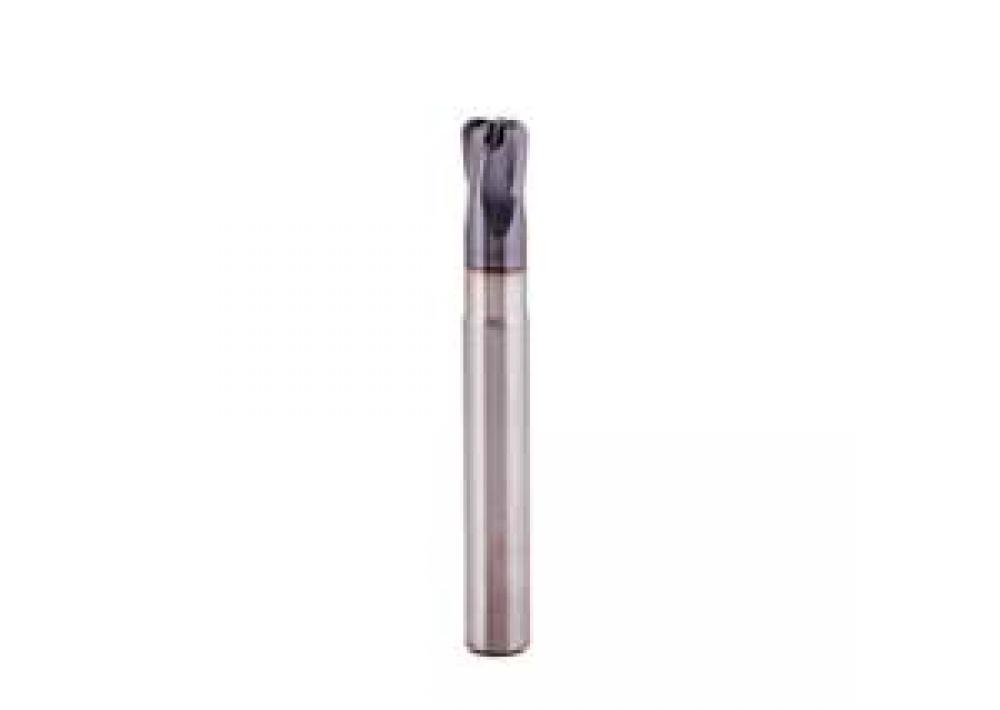

Niagara Solid Carbide High Feed High Feed End Mill MZN410R-0.500-E1-R120.0-Z4
Specifications
Details
Category:
Milling
Subcategory:
Solid
Subtype:
Milling Cutters
Coating:
AlTiN
End Type:
High Feed
Material:
CARBIDE
Series:
MZN410R

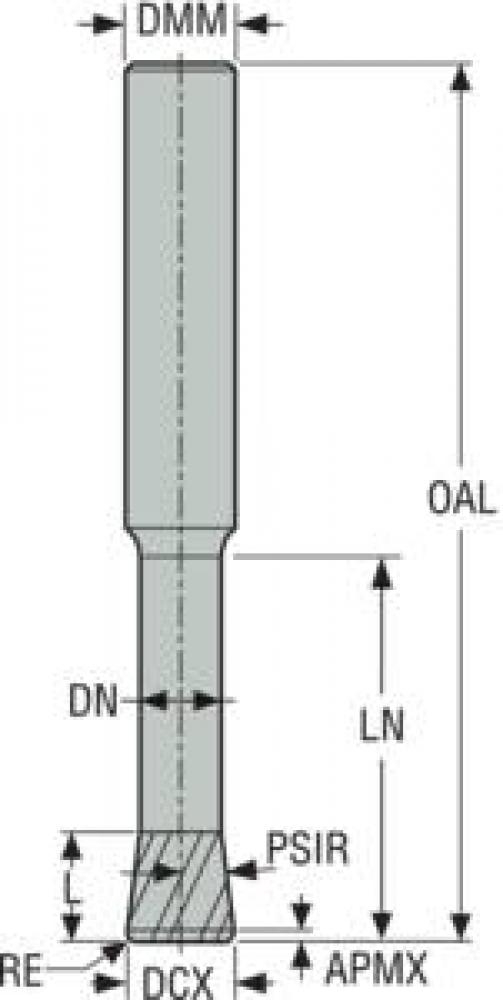

APMX - Maximum Depth of Cut:
0.12 in
APMXE - Maximum Depth of Cut Feed Direction:
0.1 in
APMXS - Max Depth Feed Direction:
0.12 in
Application:
Slotting; Profiling
Brand Name:
Niagara
CCC- Center Cutting:
No
CCER - Curved Cutting Edge Radius:
0.12 in
CEDC - Cutting Edge Count:
4
Cmax - Maximum Helical Interpolation Hole Diameter:
0.748 In
Cmin - Minimum Helical Interpolation Hole Diameter:
0.338 in
DC - Cutting Diameter:
0.26 in
DC1 - Cutting Diameter 1:
0.26 in
DCTOLL - Lower Cutting Diameter Tolerance:
0.0001 in
DCX - Maximum Cutting Diameter:
0.5 in
DMM - Shank Diameter:
0.5 in
DN - Neck Diameter:
0.468 in
FCEDC - Face Cutting Edge Count:
4
FHA - Flute Helix Angle:
10.0 deg
FHH - Flute Helix Hand:
Right
HAND - Cutting Direction:
Right
ICC - Coolant Thru:
No
Item Quantity:
1
KAPR - Cutting Edge Angle:
92.0 deg
KAPRS - Tool Angle Feed Direction:
92.0 deg
L - Theoretical Cutting Edge Length:
0.12 in
LE - Cutting Edge Effective Length:
0.12 in
LN - Neck Length:
1.5 in
LN1 - Neck Length 1:
1.5 in
LSCN - Clamping Length Minimum:
1.7811 in
LVCatalogue - Catalog Length Value:
1
Neck Angle:
0.0 deg
NOF - Number of Flutes:
4
OAL - Overall Length:
4 in
Package Height (inches):
0.709
Package Length (inches):
5.118
Package Weight (lbs):
0.026
Package Width (inches):
0.709
PCEDC - Pheripheral Cutting Edge Count:
4
Product Series:
MZN410R
PSIR - Tool Lead Angle:
-2.0 deg
RE - Corner Radius:
0.12 in
RMPX - Maximum Ramping Angle:
1.5 deg
RNA - Axial Runout:
0.00002 in
RNR - Radial Runout:
0.00002 in
ShankType:
Cylindrical
Trademark:
NIAGARA CUTTER
TSCAT - Catalog Tool Shape:
E
UPC Number:
42334029000106
Workpiece Material:
H > 48 HRc, Ni Alloys
ZEFP - Number of Effective Cutting Edges:
4
ZNP - Number of Peripheral Cutting Edges:
4
Manufactured By:
Niagara
