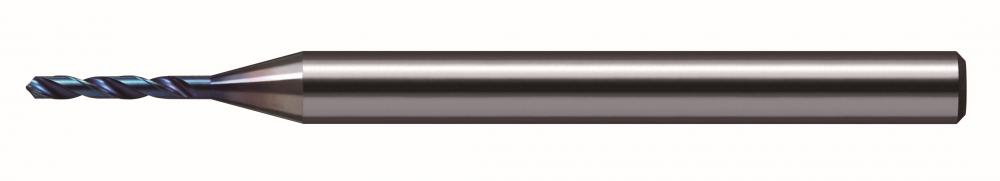

L9878 Aqua REVO Drill Micro 5D 1.56mm

L9878 Aqua REVO Drill Micro 5D 1.56mm by Nachi

Call For Price
  • Part Number: 0787570
  • UPC:
  • Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Variations (150)
Failed to load
Specifications
Details
Category:
Holemaking
Subcategory:
Drilling
Subtype:
Jobber Length Drill Bits
# of Flutes:
2
Bill Unit of Measure ("Each"):
Each
Coolant Thru:
No
Cutting Direction:
Right
Decimal Equivalent:
0.061417200000000005
Diameter Callout:
Metric
Diameter Master:
1.56
Diameter Metric:
1.56
Drill Bit Type:
Carbide 5D Micro Drill Bits
Drill Material:
SOLID CARBIDE
Drill Point Angle:
135
Drill Point Style:
CONVENTIONAL
Drill Suitable for Drilling in::
Structural Steels, Carbon Steels, Cast Irons, Alloy Steels, Heat Treated Steels, Mold Steels, Hardened Steels, Ductile Cast Iron, Stainless Steels, Aluminum Alloy
Finish / Coating:
REVO-D
Flute Length:
11.3
Flute Type:
CONVENTIONAL SPIRAL
Inner Pack Dim. UOM:
mm
Inner Pack Height:
12
Inner Pack Length:
65
Inner Pack Unit of Measure:
Each
Inner Pack Weight (g):
9
Inner Pack Width:
12
List Number:
L9878
Neck Length:
12.3
Outer Pack Height:
24
Outer Pack Length:
120
Outer Pack Quantity:
10
Outer Pack Weight (g):
97.02
Outer Pack Width:
65
Overall length:
38
Package Dimension UOM:
mm
Package Qty (Min.Qty Buy):
1
Point Length (Inch):
0
Shank size:
3
Shank Transition Angle:
15°
Shank Type:
Endmill Type Shank
Variable helix, variable index to reduce vibration:
- High performance carbide micro drill - Ultra-fine grain substrate for improved durability - REVO-D coating for increased wear resistance - Exceptional hole position accuracy - Great for a wide variety of materials
Manufactured By:
Nachi
