Category Path

Category:

Holemaking

Subcategory:

Drilling

Subtype:

Stub Length Drill Bit

Product Specs

# of Flutes:

2

Bill Unit of Measure ("Each"):

Each

Coolant Thru:

No

Cutting Direction:

Right

Decimal Equivalent:

0.3125

Diameter Callout:

Fractional

Diameter Fractional:

0.3125

Diameter Master:

0.3125

Drill Bit Type:

HSS PM Short Drill Bits

Drill Material:

POWDERED HSCO

Drill Point Angle:

135

Drill Point Style:

CONVENTIONAL

Drill Suitable for Drilling in::

Stainless Steel, Carbon Steel, Alloy Steel, Aluminum, Cast Irons

Finish / Coating:

SG (TiN+TiCN)

Flute Length:

1.5

Flute Type:

CONVENTIONAL SPIRAL

Inner Pack Dim. UOM:

mm

Inner Pack Height:

12

Inner Pack Length:

12

Inner Pack Unit of Measure:

Each

Inner Pack Weight (g):

55.7

Inner Pack Width:

85.725

List Number:

L7573P

Neck Length:

40.099999999999994

Outer Pack Height:

66

Outer Pack Length:

27

Outer Pack Quantity:

10

Outer Pack Weight (g):

557

Outer Pack Width:

85.725

Overall length:

3.375

Package Dimension UOM:

mm

Package Qty (Min.Qty Buy):

1

Point Length (Inch):

0

Shank size:

0.375

Shank Transition Angle:

30°

Shank Type:

Endmill Type Shank

Variable helix, variable index to reduce vibration:

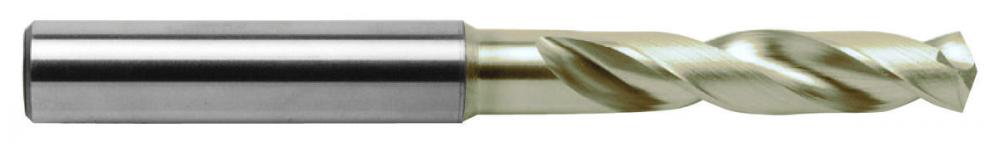

- SG-ESS Stub Length High Performance Drill - Premium Powdered Metal Cobalt Substrate - SG (TiN+TiCN) Coated - Self-Centering Point Geometry - Precision h6 Ground Shank

Manufacturer Info

Manufactured By:

Nachi
