Product Overview

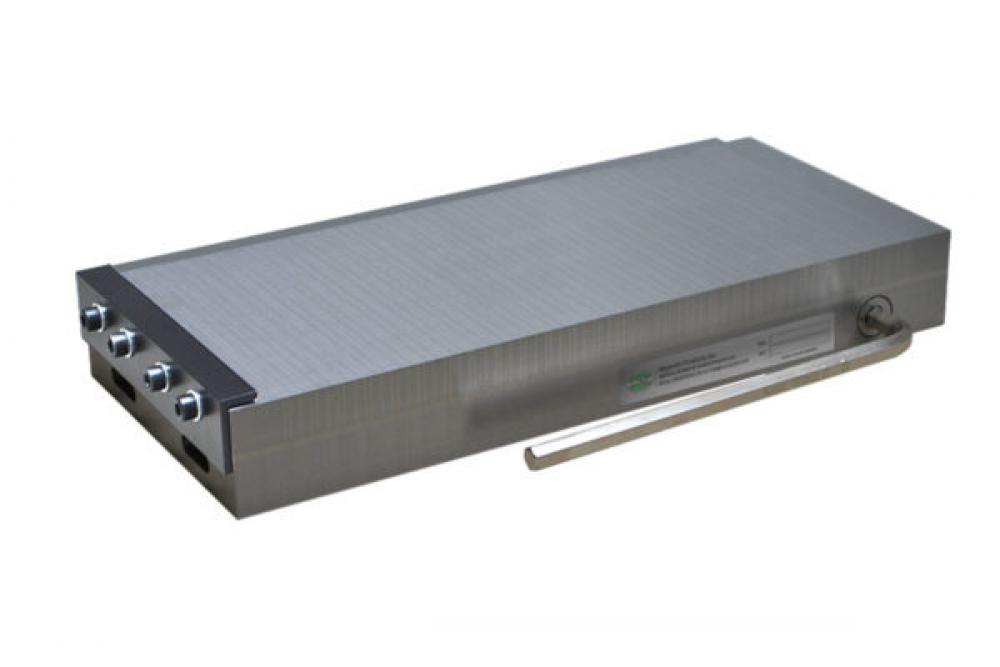

Dymax 12" x 24" Rare Earth Surface Grinder Chuck 120N/cm² holding force

MPI Dymax Permanent Magnetic Chucks have a double neodymium magnetic system creating an extremely high holding force. Dymax chucks are suitable for demanding machining operations such as heavy surface grinding or light milling operations. The top plate is made of steel/stainless steel material with transverse combined poles. waterproof design allows the Dymax Permanent Magnetic chuck to be immersed in coolant as well as dielectric liquid during EDM machining. One (1) year warranty for the magnetic system Manufactured in Europe to the highest quality standards.

Product Specs

Brand Name:

Magnetic Products Inc.

Feature 1:

Application: Grinding/EDM/Light Milling

Feature 10:

Manufactured in Europe to the highest quality standards

Feature 2:

Technology: Permanent

Feature 3:

Chuck dimensions: from 6" x 12"

Feature 4:

Holding force: 120N/cm² / 174lbs/in²

Feature 5:

Minimum workpiece size: 10mm x 10mm x 5 mm /.393” x .393” x .196”

Feature 6:

Regrinding limit: 6mm / .236”

Feature 7:

Pole pitch: 15mm further refined 5/1/5/1/2/1mm - .600" further refined 0.2/.04/.2/ .04/ .08/.04"(steel/stainless steel)

Feature 8:

Poles: Transverse

Feature 9:

One (1) year warranty for the magnetic system

Included Products/Items:

Rear and side stop blocks, Allen Key

Item Height (inches):

2.2

Item Length (inches):

24

Item Weight (lbs):

172

Item Width (inches):

12

List Price:

$7,346.00

Package Height (inches):

5

Package Length (inches):

27

Package Weight (lbs):

236

Package Width (inches):

16

Trade Name:

MPI

UNSPSC Number:

27112109

Manufacturer Info

Manufactured By:

Magnetic Products Inc.
