Product Overview

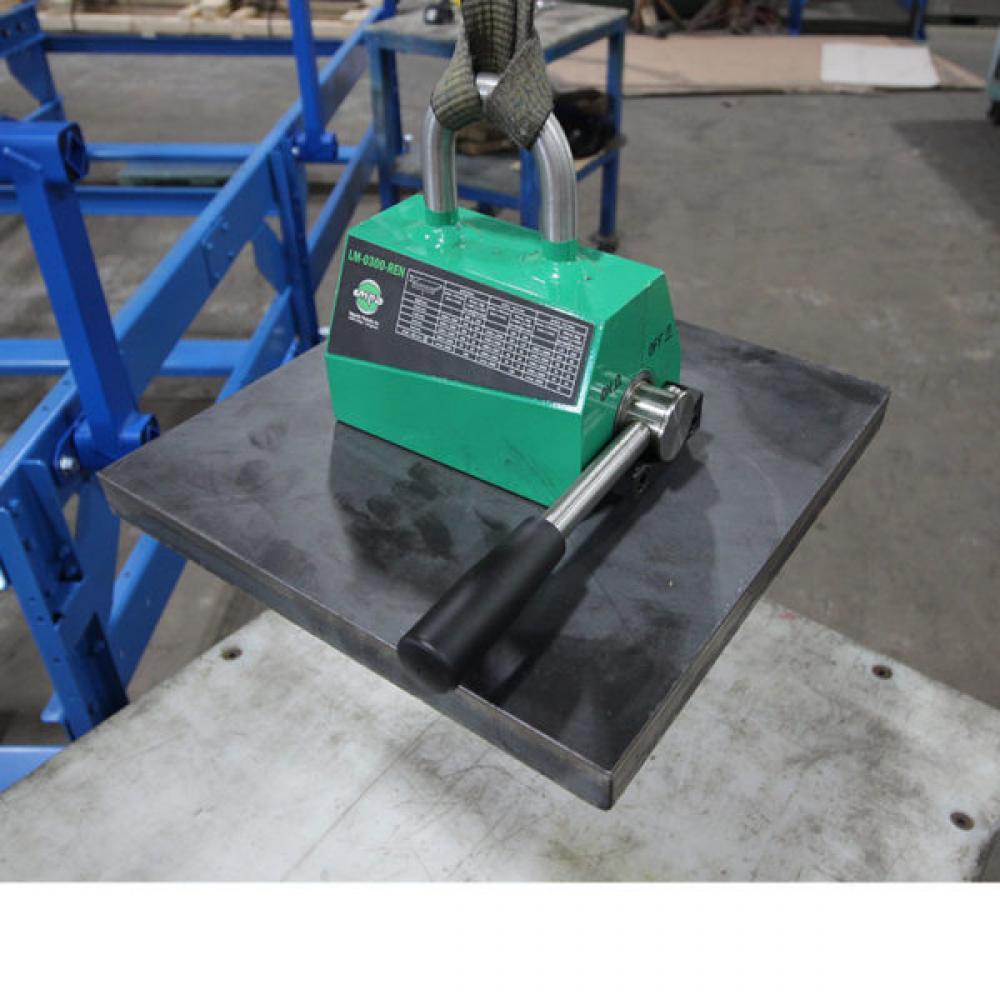

LM2000 Lifting Magnet - 4400 lbs. workload limit flat material - 2204 lbs. round material

MPI Permanent Lift Magnets feature a strong welded design, compact body with only two recessed handle screws – no load bearing screws to come loose, Stainless steel robust lifting eye permanently welded to the body, A simple Easy Switch control switches magnet on and off easily, quickly, and safely with one hand. 3:1 safety factor – every lifter is individually tested to meet load specifications and the results are recorded by serial number. Meets all the requirements of ANSI/ASME B30.20 (safety standard). Air Gap Test – tear-off test is conducted with an air gap that simulates real operating conditions Five Year Warranty, Manufactured in Europe to the highest quality standards.

Product Specs

Brand Name:

Magnetic Products Inc.

Feature 1:

Application: Lifting

Feature 2:

Technology: Permanent

Feature 3:

Nominal lifting capacity for flat material: up to 2,000kgs/4,409lbs

Feature 4:

Nominal lifting capacity for round material: up to 1,000kgs/2,204lbs

Feature 5:

Temperature max: 80°C/176°F

Feature 6:

Safety factor: 3:1

Feature 7:

Five (5) year warranty for the magnetic system

Feature 8:

Manufactured in Europe to the highest quality standards

Item Height (inches):

10.8

Item Length (inches):

18.8

Item Weight (lbs):

198.4

Item Width (inches):

6.5

List Price:

$4,450.00

Package Height (inches):

22

Package Length (inches):

11

Package Weight (lbs):

234

Package Width (inches):

19

Trade Name:

MPI

UNSPSC Number:

24101658

Video 1:

https://youtu.be/GmVERyfkyPs

Manufacturer Info

Manufactured By:

Magnetic Products Inc.
