Product Overview

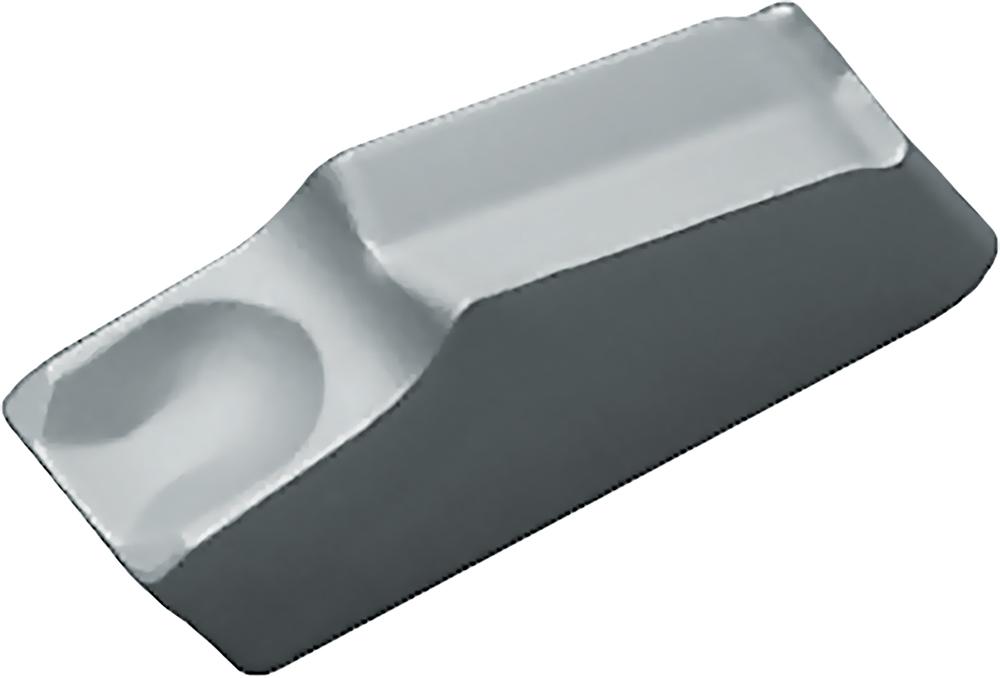

Kyocera TKN 24 TN90 Grade Uncoated Cermet, Indexable Cut-Off Insert

Kyocera TKN 24 TN90 Grade Uncoated Cermet, 2.40mm Cutting Width, Neutral Cut-Off Insert for Continuous and Finishing-Medium in (P) Steel and (M) Stainless Steel

Category Path

Category:

Cutting Tools

Subcategory:

Inserts

Subtype:

Indexable Cutting Tools

Category Level 4:

Cut-Off Inserts

Product Specs

Coating Process:

Uncoated

Insert Holding Method:

Self-Clamp

Material:

Cermet

Number of Cutting Edges:

1

Primary Workpiece Material:

(P) Steel

Rake:

Positive

Additional Manufacturer Part Number:

8802948

ANSI Part Number:

TKN24TN90

Application:

Cut-Off

California Prop 65 Item:

View

Country of Origin:

US, JAPAN, CHINA, SOUTH KOREA, OTHER

Cutting Range:

Finishing-Medium

Discount Category Description:

Carbide / Cermet

ECCN:

EAR99

Feature 1:

Insert for Cut-Off

Feature 2:

1 Cutting Edge

Feature 3:

Cermet with great surface finish eliminates many secondary operations

Feature 4:

Application: For grooving and cut-off of steel

Full Radius:

No

Hand:

Neutral

Harmonized Code:

8209.00.0060

Insert Grade:

TN90

Insert Size:

24

ISO Part Number:

TKN2.4

Material Group / Grade:

TN90

Min Order Qty:

10

Origin:

JPN

Pack Height:

0.394

Pack Length:

4.134

Pack Width:

1.772

Product URL:

https://app.catsy.com/app/share/739/o/collections/4004662142/digitalcatalog/item?sku=8802948

Series Description:

KTK Cut-Off

Series.1:

KTKC

Shipping Weight:

0.0441

Tool Style:

TKN

Unit (inch/mm):

mm

UNSPSC:

23242107

UNSPSC Title:

Insert Carbide

Usage Classification:

Continuous

[CWN] Cutting Width Minimum (Decimal Inch):

0.0945

[CWN] Cutting Width Minimum (mm):

2.40

[CWX] Cutting Width Maximum (Decimal Inch):

0.0945

[CWX] Cutting Width Maximum (mm):

2.40

[CW] Cutting Width (Decimal Inch):

0.0945

[CW] Cutting Width (mm):

2.40

[RE] Corner Radius:

0.008"

[RE] Corner Radius (mm):

0.20

Manufacturer Info

Manufactured By:

KYOCERA Precision Tools
