Part Number: TLZ00046 / Vendor ID #: 10831
KYOCERA Precision Tools TLZ00046
by KYOCERA Precision Tools
Call for Price
Item Sales Info
Add To Wishlist
Compare Item
Email
Print
Availability
- Manufacturer availability unknown.
Dimensions
Info & Guides
Chipbreaker: GM
Material: Carbide
Primary Workpiece Material: (P) Steel
Coating Process: PVD
Specific Products: TLZ00046

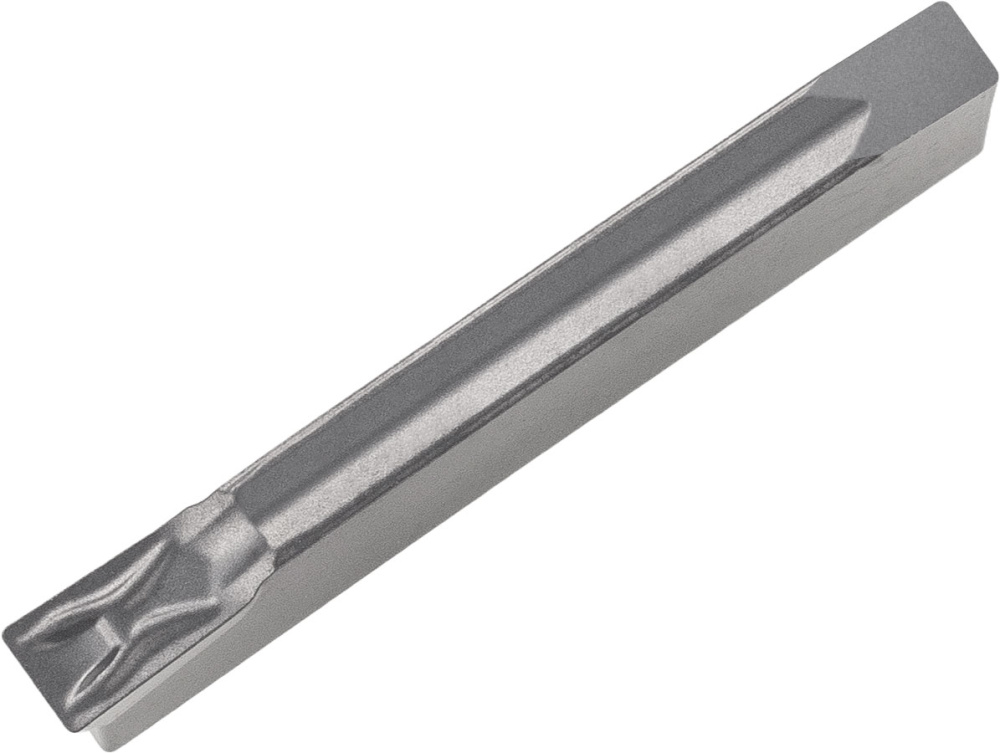

Kyocera GZMS 3020N040GM PR2035 Grade PVD Carbide, Indexable Grooving Insert
Kyocera GZMS 3020N040GM PR2035 Grade PVD Carbide, 3.00mm Groove Width, Neutral Grooving Insert for Continuous and Medium-Roughing in (P) Steel and (M) Stainless Steel
Category:
Grooving
Subcategory:
Indexable Cutting Tools
Subtype:
Grooving Inserts
ANSI Part Number:
GZMS3020N040GMPR2035
Application:
External Grooving|Traversing
California Prop 65 Item:
View
Chipbreaker:
GM
Coating / Composition:
MEGACOAT NANO EX
Coating Process:
PVD
Compatible Toolholder (Partial):
Please Refer to Master Catalog or KGZ Brochure for Compatible Toolholders
Country of Origin:
US, JAPAN, CHINA, SOUTH KOREA, OTHER
Cutting Edge Style:
General Purpose / 1-edge
Cutting Range:
Medium-Roughing
Cutting Width Tolerance (Decimal Inch):
+0.0012/-0.0012
Cutting Width Tolerance (mm):
+0.03/-0.03
Discount Category Description:
Carbide / Cermet
ECCN:
EAR99
Full Radius:
No
Hand:
Neutral
Harmonized Code:
8209.00.0030
Insert Grade:
PR2035
Insert Holding Method:
Clamp
Insert Size:
3020
Insert Size (ISO):
30
ISO Part Number:
GZMS3020N-040GM
Lead Time:
7 - 10
Material:
Carbide
Material Group / Grade:
PR2035
Min Order Qty:
10
Number of Cutting Edges:
1
Origin:
JPN
Pack Height:
0.394
Pack Length:
4.134
Pack Width:
1.772
Primary Workpiece Material:
(P) Steel
Rake:
Positive
Secondary Workpiece Material:
(M) Stainless Steel

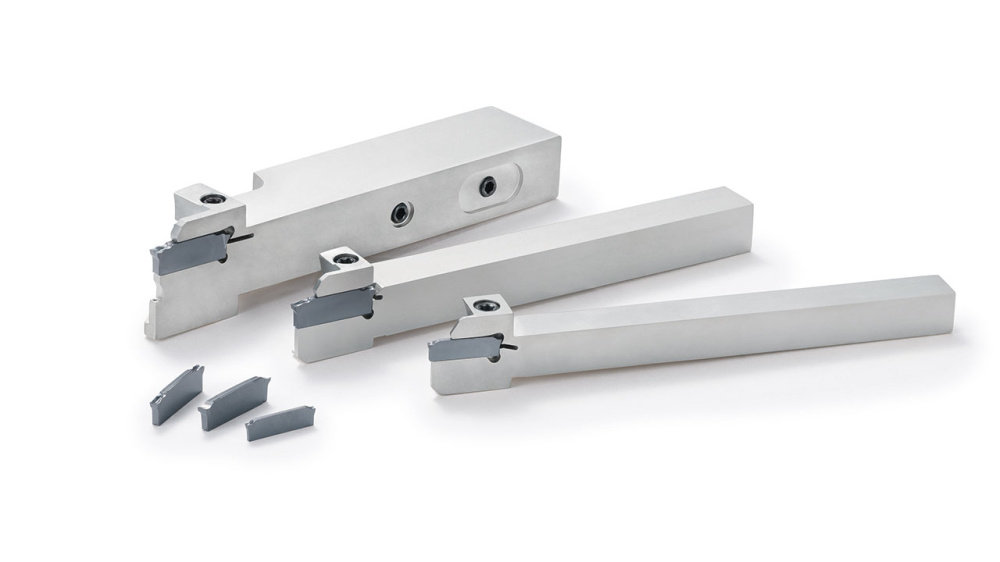

Series:
KGZ
Series Description:
KGZ Cut-Off
Shipping Weight:
0.0944
Tool Style:
GZMS
Unit (inch/mm):
mm
UNSPSC:
23242107
UNSPSC Title:
Insert Carbide
Usage Classification:
Continuous

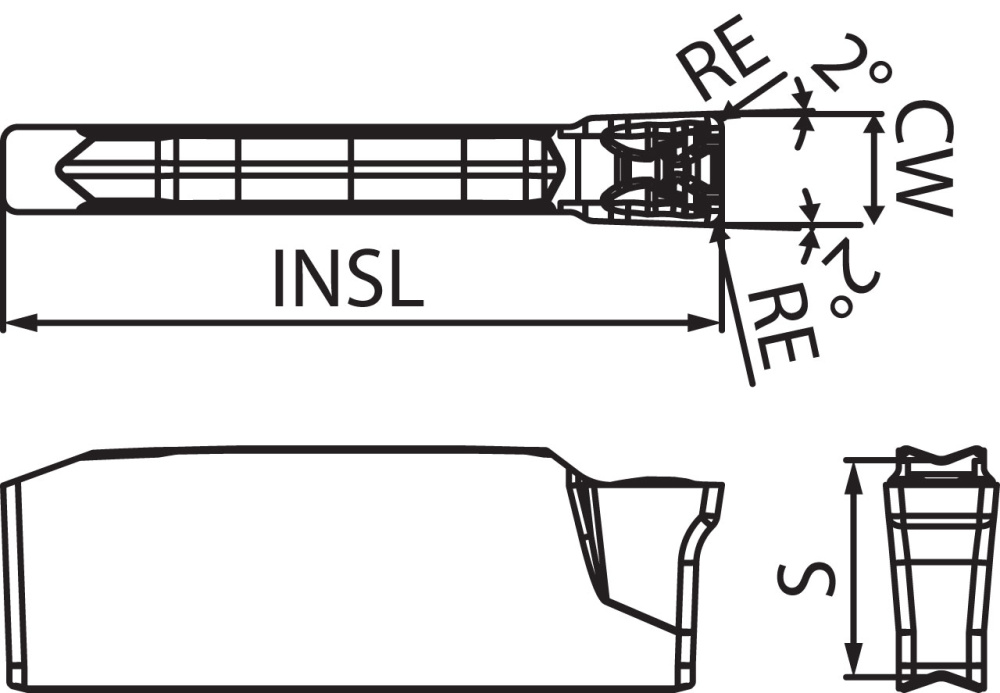

[CWN] Cutting Width Minimum (Decimal Inch):
0.1181
[CWN] Cutting Width Minimum (mm):
3.00
[CWX] Cutting Width Maximum (Decimal Inch):
0.1181
[CWX] Cutting Width Maximum (mm):
3.00
[CW] Cutting Width (Decimal Inch):
0.1181
[CW] Cutting Width (mm):
3.00
[INSL] Insert Length (Decimal Inch):
0.7874
[INSL] Insert Length (mm):
20.00
[RE] Corner Radius:
1/64"
[RE] Corner Radius (mm):
0.40
[S] Thickness:
0.232"
[S] Thickness (mm):
5.90
Manufactured By:
KYOCERA Precision Tools
