Return to Catalog
Part Number: THC89946
/ Vendor ID #: 10831
KYOCERA Precision Tools THC89946
by KYOCERA Precision Tools
Call for Price
Item Sales Info
-
+
Add To Cart
Add To Wishlist
Compare Item
Email
Print
Availability
Manufacturer availability unknown.
Dimensions
Info & Guides
Literature 1
Insert Shape:
80 Degree Diamond
80 Degree Diamond
55 Degree Diamond
35 Degree Diamond
Specific Products:
THC89946
THC89946
Product Overview
Kyocera SCLCR 103FFJCTM, Direct Coolant-Through Turning Toolholder
Kyocera SCLCR 103FFJCTM, Right-Hand, Positive Rake, 95 Degree Lead Angle, Direct Coolant-Through Turning Toolholder for Swiss, External Turning, Facing Applications
Category Path
Category:
Turning
Subcategory:
Indexable Cutting Tools
Subtype:
Turning Toolholders
Product Specs
ANSI Part Number:
SCLCR103FFJCTM
Application:
External Turning|Facing|Small Parts Machining
California Prop 65 Item:
View
Compatible Insert Hand:
Neutral or Right-Hand
Compatible Inserts (Partial):
CCGT325…, CCMT325…, CCGW325…, CCMW325…
Coolant Pressure Resistance (psi):
2,900
Coolant Through (Yes/No):
Yes
Country of Origin:
US, JAPAN, CHINA, SOUTH KOREA, OTHER
Discount Category Description:
Steel / Hardware
ECCN:
EAR99
Hand:
Right-Hand
Harmonized Code:
8466.10.0130
Insert Holding Method:
Screw
Insert Shape:
80 Degree Diamond
Insert Size (ISO):
R1
ISO Part Number:
SCLCR10-3FFJCTM
Lead Time:
2
Material:
Steel
Material Group / Grade:
GR99
Min Order Qty:
1
Multi-Use Tool (Yes/No):
Yes
Origin:
JPN
Pack Height:
1.535
Pack Length:
8.268
Pack Width:
1.535
Rake:
Positive
Series:
SSTJ
Series Description:
Swiss JCT Turning Holder
Shipping Weight:
0.8662
Tool Style:
SCLC-JCTM
Unit (inch/mm):
inch
UNSPSC:
23242106
UNSPSC Title:
Indexable Tool Bodies or Holders

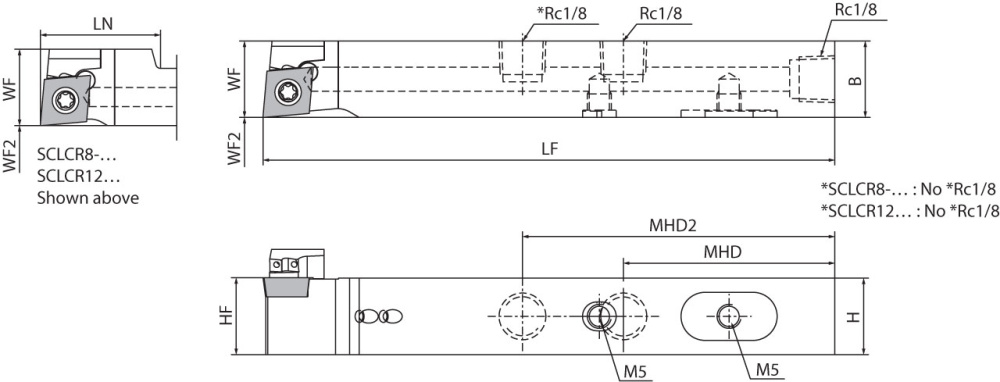

[B] Shank Width (Decimal Inch):
0.6250
[B] Shank Width (mm):
15.875
[GAMF] Rake Angle Radial (Degree):
0
[GAMO] Rake Angle Orthogonal (Degree):
0
[GAMP] Rake Angle Axial (Degree):
0
[G] Coolant Hole Thread Size:
Rc1/8
[G] Coolant Hole Thread Size 1:
Rc1/8
[G] Coolant Hole Thread Size 2:
Rc1/8
[HF] Cutting Edge Height (Decimal Inch):
0.6250
[HF] Cutting Edge Height (mm):
15.875
[H] Shank Height (Decimal Inch):
0.6250
[H] Shank Height (mm):
15.875
[IC] Insert Inscribed Circle (Decimal Inch):
0.3752
[IC] Insert Inscribed Circle (mm):
9.53

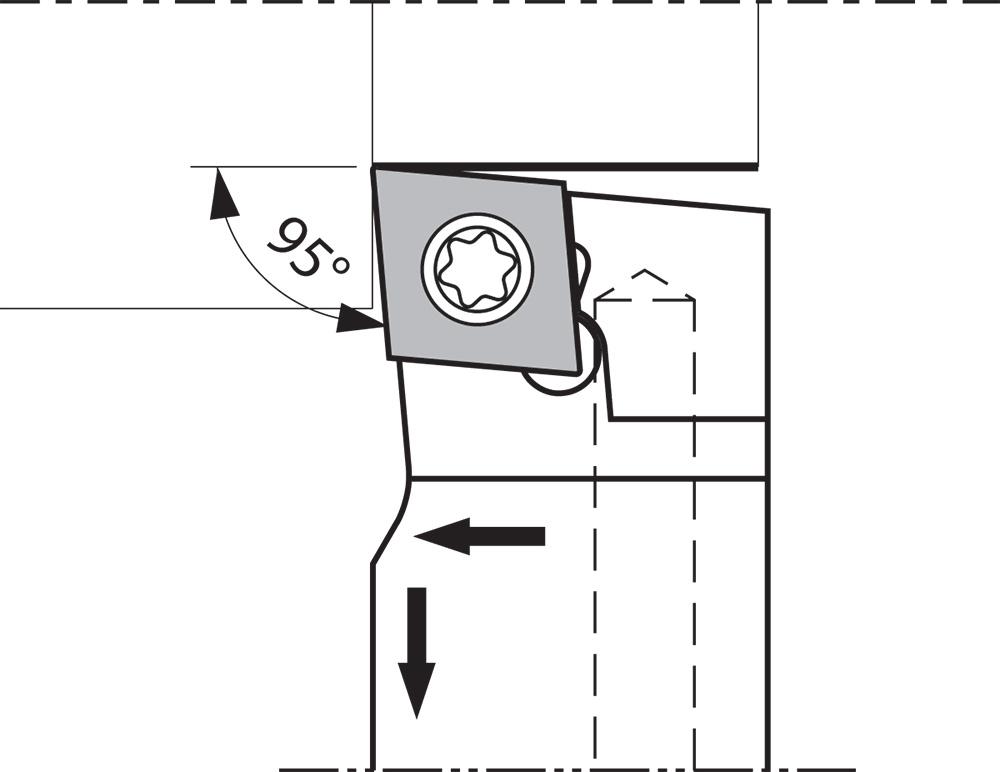

[KAPR] Tool Entering Angle (Degree):
95
[LAMS] Inclination Angle (Degree):
0
[LF] Functional Length (Decimal Inch):
4.7500
[LF] Functional Length (mm):
120.65
[MHD2] Mounting Hole Distance Secondary (Decimal I:
2.5591
[MHD2] Mounting Hole Distance Secondary (mm):
65.00
[MHD] Mounting Hole Distance (Decimal Inch):
1.7323
[MHD] Mounting Hole Distance (mm):
44.00
[RE] Standard Corner Radius (Decimal Inch):
0.0079
[RE] Standard Corner Radius (mm):
0.20
[S] Insert Thickness (Decimal Inch):
0.1563
[S] Insert Thickness (mm):
3.97
[WF2] Cutting Edge Distance Secondary (Decimal Inc:
0.0000
[WF2] Cutting Edge Distance Secondary (mm):
0
[WF] Cutting Edge Distance (Decimal Inch):
0.6250
[WF] Cutting Edge Distance (mm):
15.875
Application: Swiss, External Turning, Copying
Compatible with Right-Hand or Neutral CCGT325…, CCMT325…, CCGW325…, CCMW325… Style Inserts
Direct Coolant-Through Holders for Small Parts Machining

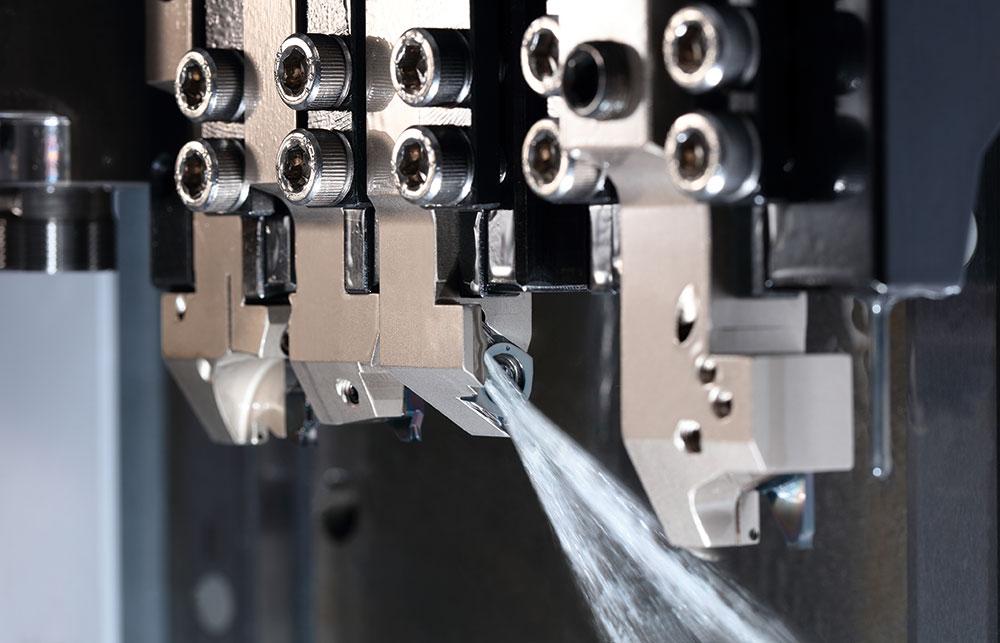

Double coolant holes simultaneously cool insert cutting edge and control chip flow
Supports Internal Coolant with or without Piping Systems
Manufacturer Info
Manufactured By:
KYOCERA Precision Tools
