Part Number: THC15475 / Vendor ID #: 10831
KYOCERA Precision Tools THC15475
by KYOCERA Precision Tools
Call for Price
Item Sales Info
Add To Wishlist
Compare Item
Email
Print
Availability
- Manufacturer availability unknown.
Dimensions
Info & Guides
Specific Products: THC15475
Kyocera KGZR 1616JX3D26JCTM, Coolant-Through External Grooving & Cut-Off Toolholder
Kyocera KGZR 1616JX3D26JCTM, Right-Hand, Coolant-Through External Grooving & Cut-Off Toolholder with a 13.00mm Max Depth of Cut for Grooving and Cut-Off Applications
Category:
Cutting Tools
Subcategory:
Cut-Off
Subtype:
Indexable Cutting Tools
Category Level 4:
Cut-Off Toolholders
ANSI Part Number:
KGZR1616JX3D26JCTM
Application:
Cut-Off|External Grooving|Small Parts Machining
California Prop 65 Item:
View
Compatible Insert Hand:
Neutral
Compatible Inserts (Partial):
GZG3020…, GZM3020…, GZMS3020…
Coolant Pressure Resistance (psi):
With Coupler (Pump Pressure: Up to 1,090 psi), Without Coupler (Pump Pressure: up to 2,900 psi)
Coolant Through (Yes/No):
Yes
Country of Origin:
US, JAPAN, CHINA, SOUTH KOREA, OTHER
Discount Category Description:
Steel / Hardware
ECCN:
EAR99
Grooving Type:
External Grooving
Hand:
Right-Hand
Harmonized Code:
8466.10.0130
Insert Holding Method:
Clamp
Insert Size (ISO):
16
ISO Part Number:
KGZR1616JX-3D26JCTM
Lead Time:
7 - 10
Material:
Steel
Material Group / Grade:
GR99
Min Order Qty:
1
Multi-Use Tool (Yes/No):
Yes
Origin:
JPN
Pack Height:
1.378
Pack Length:
5.906
Pack Width:
1.575
Series:
KGZJ
Series Description:
KGZ JCT Cut-Off
Shipping Weight:
0.4973
Tool Style:
KGZ-JCTM
Unit (inch/mm):
mm
UNSPSC:
23242106
UNSPSC Title:
Indexable Tool Bodies or Holders

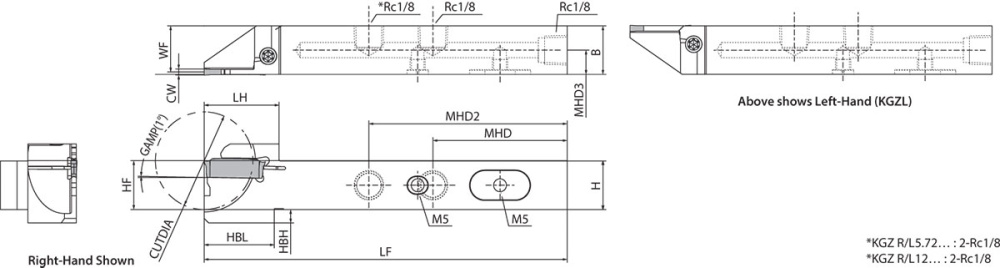

[B] Shank Width (Decimal Inch):
0.6299
[B] Shank Width (mm):
16.00
[CDX] Max Depth of Cut (Decimal Inch):
0.5118
[CDX] Max Depth of Cut (mm):
13.00
[CUTDIA] Maximum Cut-Off Diameter (Decimal Inch):
1.0236
[CUTDIA] Maximum Cut-Off Diameter (mm):
26.00
[CWN] Cutting Width Minimum (Decimal Inch):
0.1181
[CWN] Cutting Width Minimum (mm):
3.00
[CWX] Cutting Width Maximum (Decimal Inch):
0.1181
[CWX] Cutting Width Maximum (mm):
3.00
[CW] Cutting Width (Decimal Inch):
0.1181
[CW] Cutting Width (mm):
3.00
[GAN] Insert Rake Angle (Degree):
Insert Dependant
[G] Coolant Hole Thread Size:
Rc1/8
[HBH] Head Bottom Offset Height (Decimal Inch):
0.0394
[HBH] Head Bottom Offset Height (mm):
1.00
[HBL] Head Bottom Offset Length (Decimal Inch):
0.9134
[HBL] Head Bottom Offset Length (mm):
23.20
[HF] Cutting Edge Height (Decimal Inch):
0.6299
[HF] Cutting Edge Height (mm):
16.00
[H] Shank Height (Decimal Inch):
0.6299
[H] Shank Height (mm):
16.00
[LF] Functional Length (Decimal Inch):
4.7244
[LF] Functional Length (mm):
120.00
[LH] Head Length (Decimal Inch):
0.9764
[LH] Head Length (mm):
24.80
[MHD2] Mounting Hole Distance Secondary (Decimal I:
2.5591
[MHD2] Mounting Hole Distance Secondary (mm):
65.00
[MHD3] Mounting Hole Distance 3 (Decimal Inch):
0.3150
[MHD3] Mounting Hole Distance 3 (mm):
8.00
[MHD] Mounting Hole Distance (Decimal Inch):
1.7323
[MHD] Mounting Hole Distance (mm):
44.00
[WF] Cutting Edge Distance (Decimal Inch):
0.5827
[WF] Cutting Edge Distance (mm):
14.80
Compatible with GZG3020…, GZM3020…, GZMS3020… Inserts
Direct Coolant-Through Holders for Small Parts Machining
Long tool life and stable machining by internal coolant with or without piping system
Shank with optimized coolant channel design
Manufactured By:
KYOCERA Precision Tools
