Part Number: THC05847 / Vendor ID #: 10831
KYOCERA Precision Tools THC05847
by KYOCERA Precision Tools
Call for Price
Availability
  • Manufacturer availability unknown.
Dimensions
Chipbreaker: ...
Material: Steel
Number of Flutes: 1
Coating Process: ...
Specific Products: THC05847
Product Overview
Kyocera MCSE 10860D 60 Degree, Chamfer End Mill
Kyocera MCSE 10860D 1-Flute, 60 Degree, Standard Length Shank, Chamfer End Mill with a 8.00mm Minimum and 19.50mm Maximum Cutting Diameter for Chamfering, Back Chamfering, V-Shape Slotting, Countersinking Applications
Category Path
Category:
Milling
Subcategory:
Indexable
Subtype:
Indexable End Mills
Product Specs
Insert Holding Method:
Screw
Material:
Steel
Number of Flutes:
1
Shank Type:
Standard Length
Additional Manufacturer Part Number:
8812458
ANSI Part Number:
MCSE10860D
Application:
Back Chamfering|Chamfering|Countersinking|V-Shape Slotting
California Prop 65 Item:
View
Coolant Through (Yes/No):
No
Country of Origin:
US, JAPAN, CHINA, SOUTH KOREA, OTHER
Discount Category Description:
Steel / Hardware
ECCN:
EAR99
Feature 1:
For Chamfering, Back Chamfering, V-Shape Slotting, Countersinking Applications
Feature 2:
Compatible with (1) SEKW421TN, SEKW422TN, SEKW421FN, SEKW422FN, SEMT421C style inserts
Hand:
Right-Hand
Harmonized Code:
8466.10.0130
ISO Part Number:
MCSE108-60D
Material Group / Grade:
GR99
Min Order Qty:
1
Number of Inserts:
1
Origin:
CHN
Pack Height:
1.535
Pack Length:
5.748
Pack Width:
1.890
Product URL:
https://app.catsy.com/app/share/739/o/collections/4004662142/digitalcatalog/item?sku=8812458
Series Description:
MCSE Chamfer Mill
Series.1:
MCSE
Shipping Weight:
0.6217
Tool Style:
MCSE
Unit (inch/mm):
mm
UNSPSC:
27112803
UNSPSC Title:
End Mills
Weldon Flat:
No

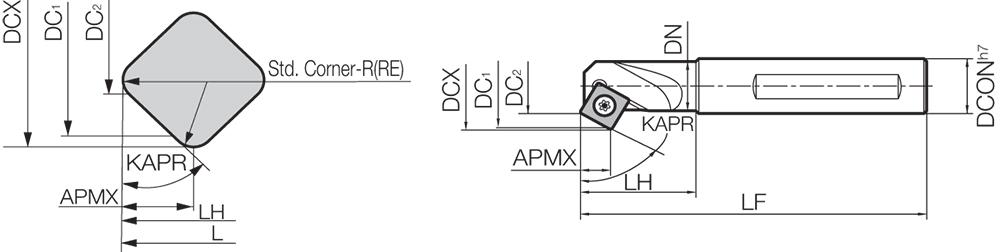

[APMX] Maximum Depth of Cut (Decimal Inch):
0.3937
[APMX] Maximum Depth of Cut (mm):
10.00
[DCON] Connection Diameter (Decimal Inch):
0.7874
[DCON] Connection Diameter (mm):
20.00
[DCX] Cutting Diameter Maximum (Decimal Inch):
0.7677
[DCX] Cutting Diameter Maximum (mm):
19.50
[DC] Cutting Diameter (Decimal Inch):
0.7677 - 0.7677
[DC] Cutting Diameter (mm):
19.50 - 19.50
[KAPR] Tool Entering Angle (Degree):
60
Manufacturer Info
Manufactured By:
KYOCERA Precision Tools
