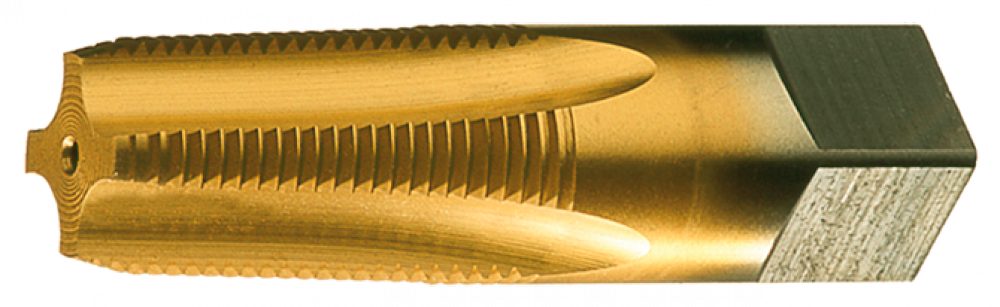

Pipe Tap by Greenfield
Call For Price
- Part Number: 385409
- UPC:
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Variations (20)
Failed to load
Product Overview
Pipe Tap
Long Description
Specifications
Details
Category:
Threading
Subcategory:
Taps
Subtype:
Pipe Taps
Flute Type:
Straight
Material Application:
K: Cast Iron;M: Stainless Steel;P: Steel
Overall Length (mm):
61.91
Shank Size:
0.5625
Square Length (Decimal Inch):
0.4375
Tap Type:
Pipe Tap
Thread Size:
0.25
Application:
General Purpose
Brand Name:
Greenfield
Diameter:
0.25
Diameter (Decimal Inch):
0.25
Diameter (Fraction):
1/4
Diameter (Metric):
6.35
Diameter (Wire):
E
ECCN:
EAR99
Hand Of Cut:
Right
Measurement System:
Imperial
Number of Flutes.1:
4
Operation Type:
Thru Hole
Overall Length (Metric):
61.91
Pack Qty:
1
Package Type:
Snap Pack
Set:
No
Shank Configuration:
Straight w/ Square
Shank End Feature:
Square
Shank Size (Metric):
14.29
Shank Square Length:
0.4375
Shank Square Width:
0.421
Surface Condition:
TiN
Tap Blank Construction:
USCTI Table 311
Tap Chamfer:
Semi-Bottoming
Tap Construction:
Medium Hook Taper
Tap Ground Threads:
Yes
Tap Hook:
Medium (5-10)
Tap Interrupted Thread:
No
Tap Spiral Point:
No
Tap Standard Projection:
0.459
Tap Style:
Tapered Pipe Tap
Tap Truncated Threads:
No
Thread Creation:
Thread Cutting
Thread Form:
NPT
Thread Length:
1.0625
Thread Pitch:
18
Thread Size Decimal Equiv:
0.25
Tool Size:
1/4-18 NPT
Tool Type:
Tap
UNSPSC:
27112806
Manufactured By:
Greenfield
