Fullerton 92583 by Fullerton
Call For Price
- Part Number: 92583
- UPC:
- Availability: Loading Availability...
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Variations (193)
Failed to load
Product Overview

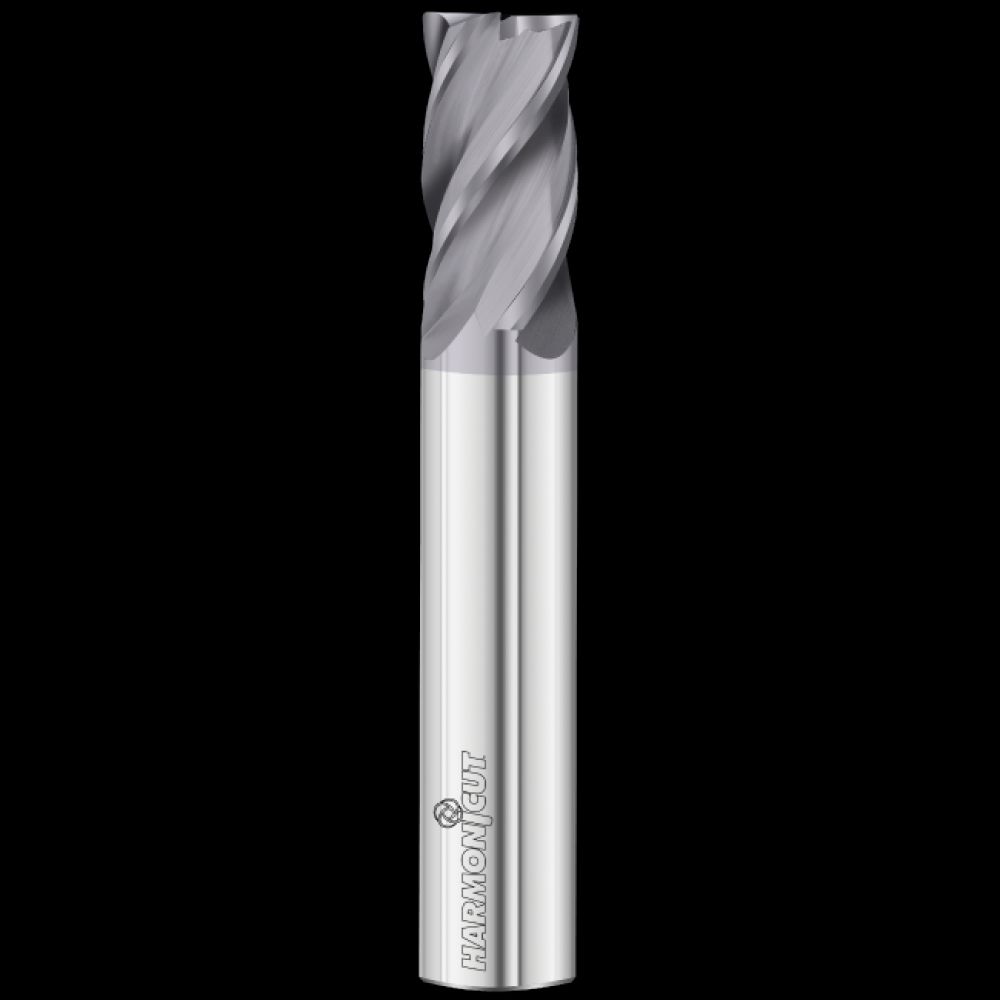

The Harmon-i-cut excels in difficult-to-machine ferrous materials like cast iron.
Long Description
Specifications
Details
Category:
Milling
Subcategory:
Solid
Subtype:
Corner Radius and Corner Chamfer End Mills
Helix Angle:
0.00
Number of Flutes:
4
Coating Color:
Blue-Gray
Coating Description:
Terrific for levels of oxidation resistance and hot hardness. Exemplary wear resistance. Excellent in hi-speed machining parameters for milling, stainless steels, alloy steels, titanium and h
Coating ID:
FC18
Coating Image Name:
Coating Name:
FULCOAT 18
Coolant:
No
Cutting Direction Description:
Right Hand Cutting
Cutting Direction ID:
RH
Double Ended:
No
Drill Ratio:
SD
End Type Description:
Corner Radius
End Type ID:
R
Feature 1:
The 3400 Harmon-i-Cut is a 4-flute, high performance end mill designed for difficult to machine ferrous materials. It features a variable helix, variable index, and variable rake which maximizes tool life and removal rates by minimizing the effects of har
Flute Spiral Description:
Right Hand Spiral
Flute Spiral ID:
RH
Imperial Cutting Diam:
0.3937
Imperial Cutting Flute Length:
0.9843
Imperial Overall Length:
2.5197
Imperial Radius:
0.0394
Imperial Shank Diam:
0.3937
Length Description:
Standard
Length ID:
SD
Measurement Unit ID:
M
Measurement Unit Name:
Millimeter
Measurement Unit System Of Unit:
Metric
Metric Cutting Diam:
10.00
Metric Cutting Flute Length:
25.00
Metric Overall Length:
64.00
Metric Radius:
1.00
Metric Shank Diam:
10.00
Part Package Height:
0.5500
Part Package Length:
3.5000
Part Package Weight:
0.0705
Part Package Width:
0.5500
Manufactured By:
Fullerton
