Fullerton 92527

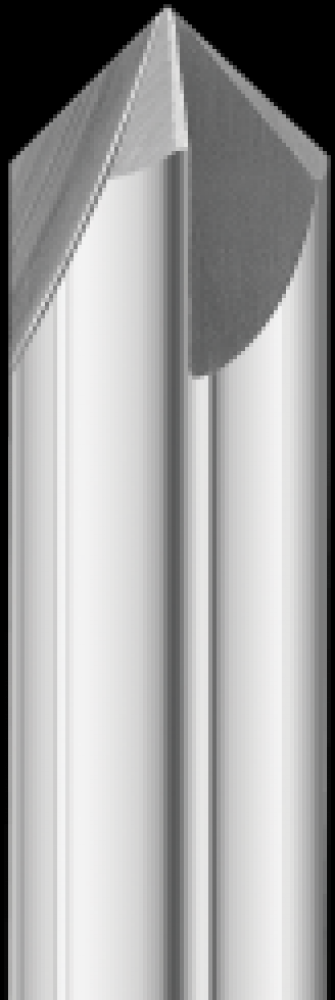

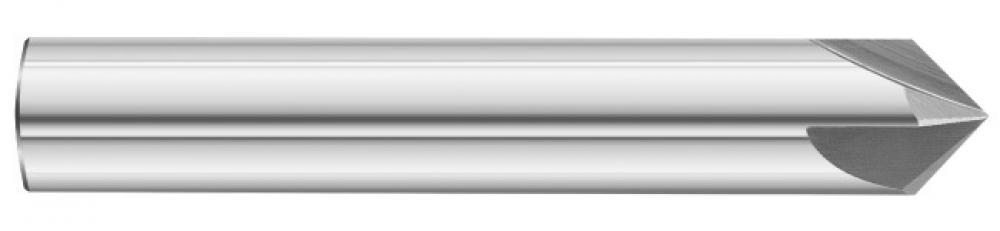

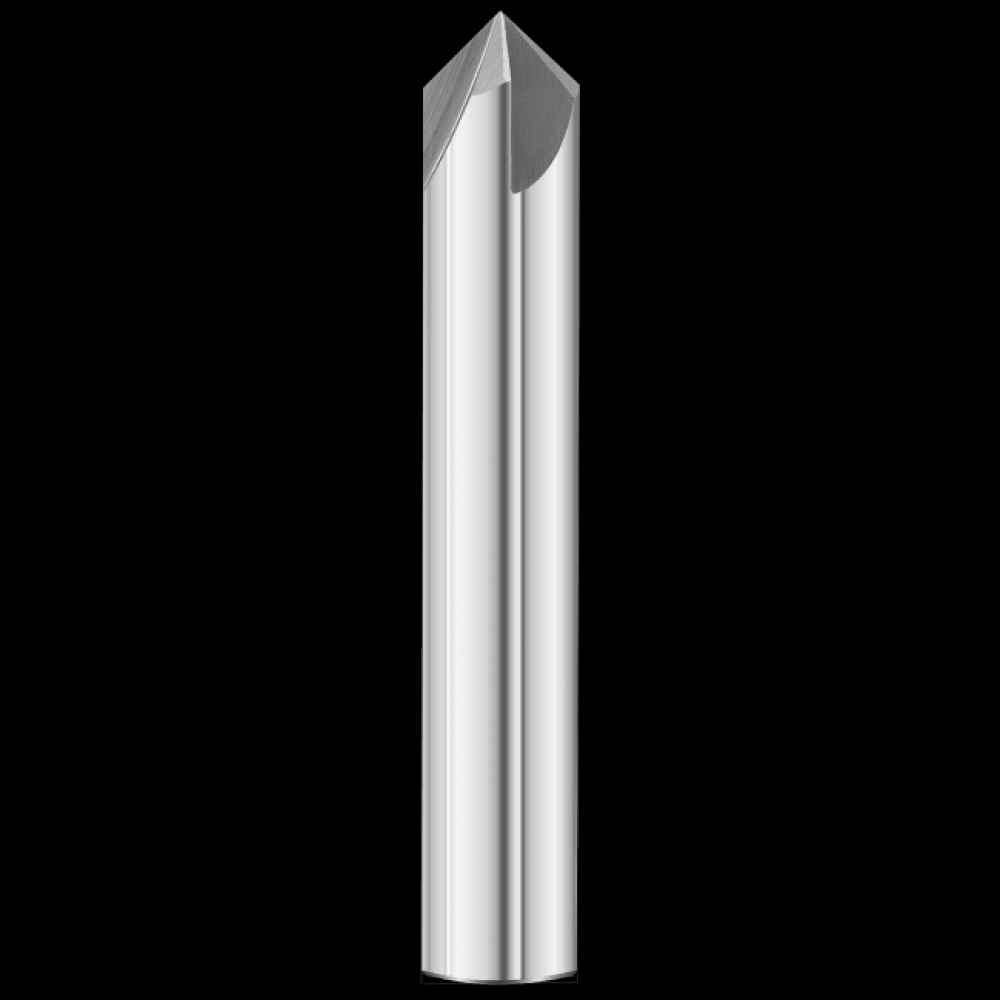

Fullerton 92527 by Fullerton

Call For Price
  • Part Number: 92527
  • UPC:
  • Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Variations (70)
Product Overview
The Chamfer Mill was designed for deburring and chamfering in small grooves and holes.
Long Description
Specifications
Details
Category:
Milling
Subcategory:
Solid
Subtype:
Corner Radius and Corner Chamfer End Mills
Chamfer Angle:
90.00
Number of Flutes:
4
Coolant:
No
Cutting Direction Description:
Right Hand Cutting
Cutting Direction ID:
RH
Double Ended:
No
Drill Ratio:
SD
End Type Description:
Chamfer
End Type ID:
C
Feature 1:
The 3730 Chamfer Mill is a general performance end mill available with 2 or 4-flutes. It was designed for deburring and chamfering in small grooves and holes. It improves tool life and finish for profiling and chamfering of large features. The 3730 Cham
Flute Spiral Description:
Straight
Flute Spiral ID:
ST
Imperial Cutting Diam:
0.4724
Imperial Cutting Flute Length:
0.2362
Imperial Non Cutting Tip:
0.0354
Imperial Overall Length:
2.9921
Imperial Shank Diam:
0.4724
Length Description:
Standard
Length ID:
SD
Measurement Unit ID:
M
Measurement Unit Name:
Millimeter
Measurement Unit System Of Unit:
Metric
Metric Cutting Diam:
12.00
Metric Cutting Flute Length:
6.00
Metric Non Cutting Tip:
0.90
Metric Overall Length:
76.00
Metric Shank Diam:
12.00
Part Package Height:
0.5500
Part Package Length:
3.5000
Part Package Weight:
0.0625
Part Package Width:
0.5500
Manufactured By:
Fullerton
