Fullerton 38492 by Fullerton
Call For Price
- Part Number: 38492
- UPC:
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Variations (4)
Failed to load
Product Overview

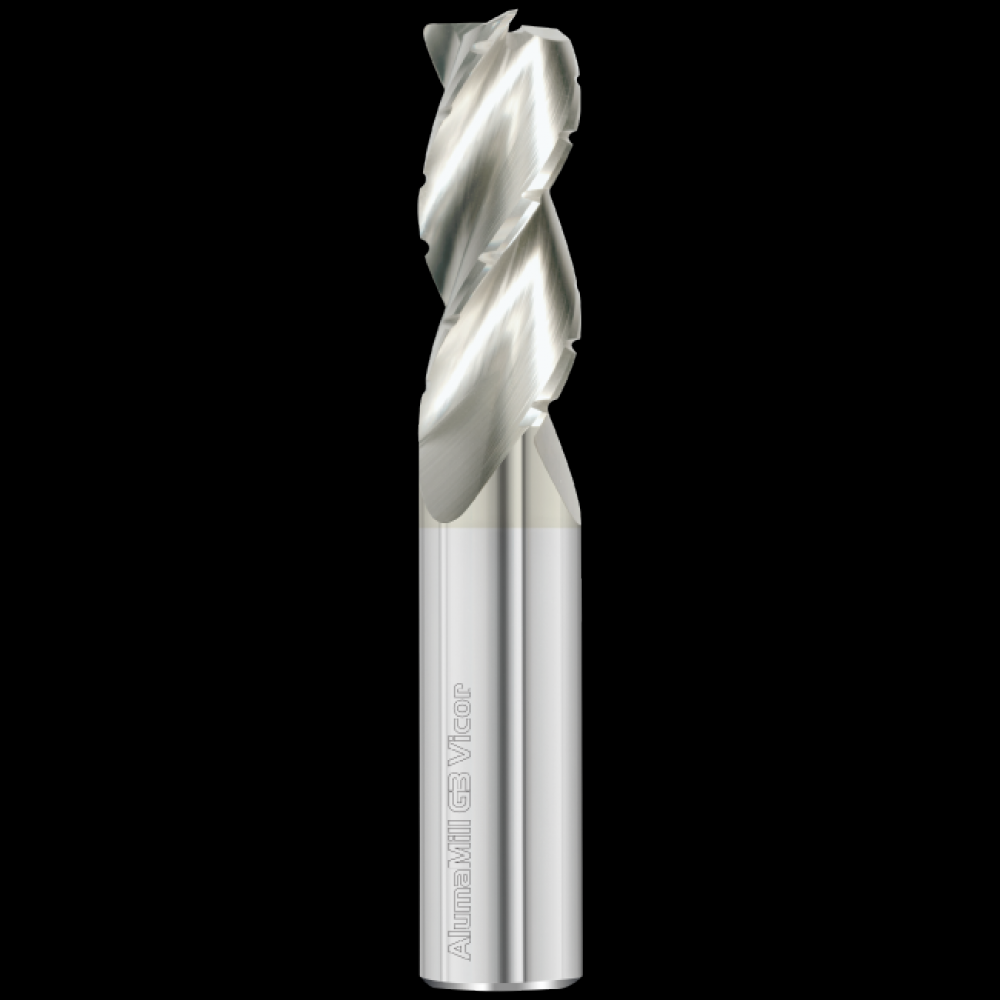

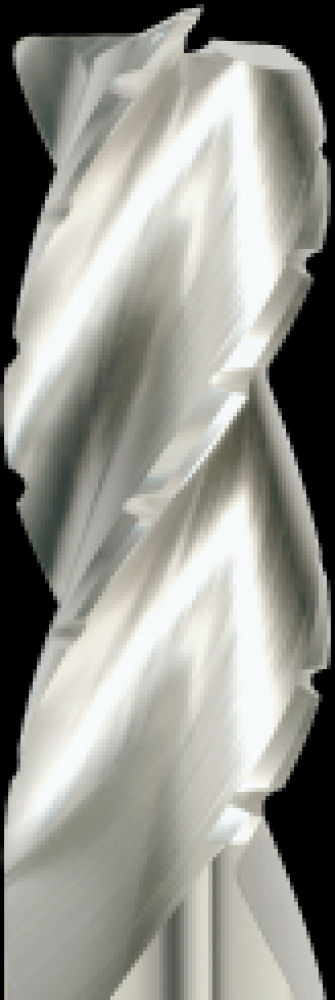

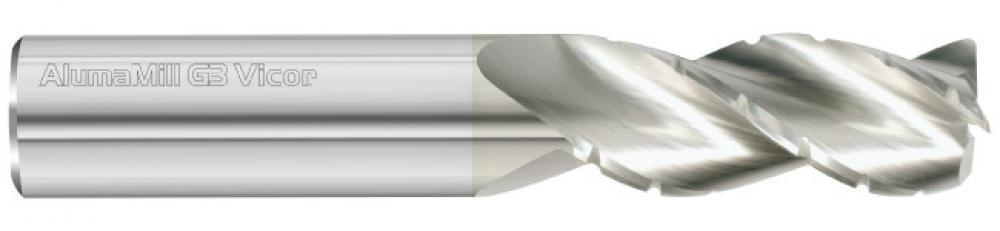

The AlumaMill G3 Vicor excels in roughing, finishing, plunging, and ramping aluminum and brass & copper.
Long Description
Specifications
Details
Category:
Milling
Subcategory:
Solid
Subtype:
Corner Radius and Corner Chamfer End Mills
Helix Angle:
37.50
Number of Flutes:
3
Coating Color:
Pale Yellow
Coating Description:
Special purpose single layer coating reduces built-up edge when machining aluminum and titanium alloys.
Coating ID:
FC5
Coating Image Name:
Coating Name:
FULCOAT 05
Coolant:
No
Cutting Direction Description:
Right Hand Cutting
Cutting Direction ID:
RH
Double Ended:
No
Drill Ratio:
SD
End Type Description:
Corner Radius
End Type ID:
R
Feature 1:
The 3805 AlumaMill G3 Vicor is a 3-flute, high performance end mill with chip breakers designed for roughing and finishing aluminum and non-ferrous materials. It excels in aggressive plunging and ramping speed environments and was designed for fast materi
Flute Spiral Description:
Right Hand Spiral
Flute Spiral ID:
RH
Fractional Cutting Diam:
5/8
Fractional Cutting Flute Length:
1-5/8
Fractional Overall Length:
3-1/2
Fractional Shank Diam:
5/8
Imperial Cutting Diam:
0.6250
Imperial Cutting Flute Length:
1.6250
Imperial Overall Length:
3.5000
Imperial Radius:
0.0300
Imperial Shank Diam:
0.6250
Length Description:
Standard
Length ID:
SD
Measurement Unit ID:
I
Measurement Unit Name:
Inch
Measurement Unit System Of Unit:
Imperial
Metric Cutting Diam:
15.88
Metric Cutting Flute Length:
41.28
Metric Overall Length:
88.90
Metric Radius:
0.76
Metric Shank Diam:
15.88
Part Package Height:
0.5000
Part Package Length:
3.4430
Part Package Weight:
0.0450
Part Package Width:
0.5000
Manufactured By:
Fullerton
