Fullerton 34930 by Fullerton
Call For Price
- Part Number: 34930
- UPC:
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Variations (193)
Product Overview

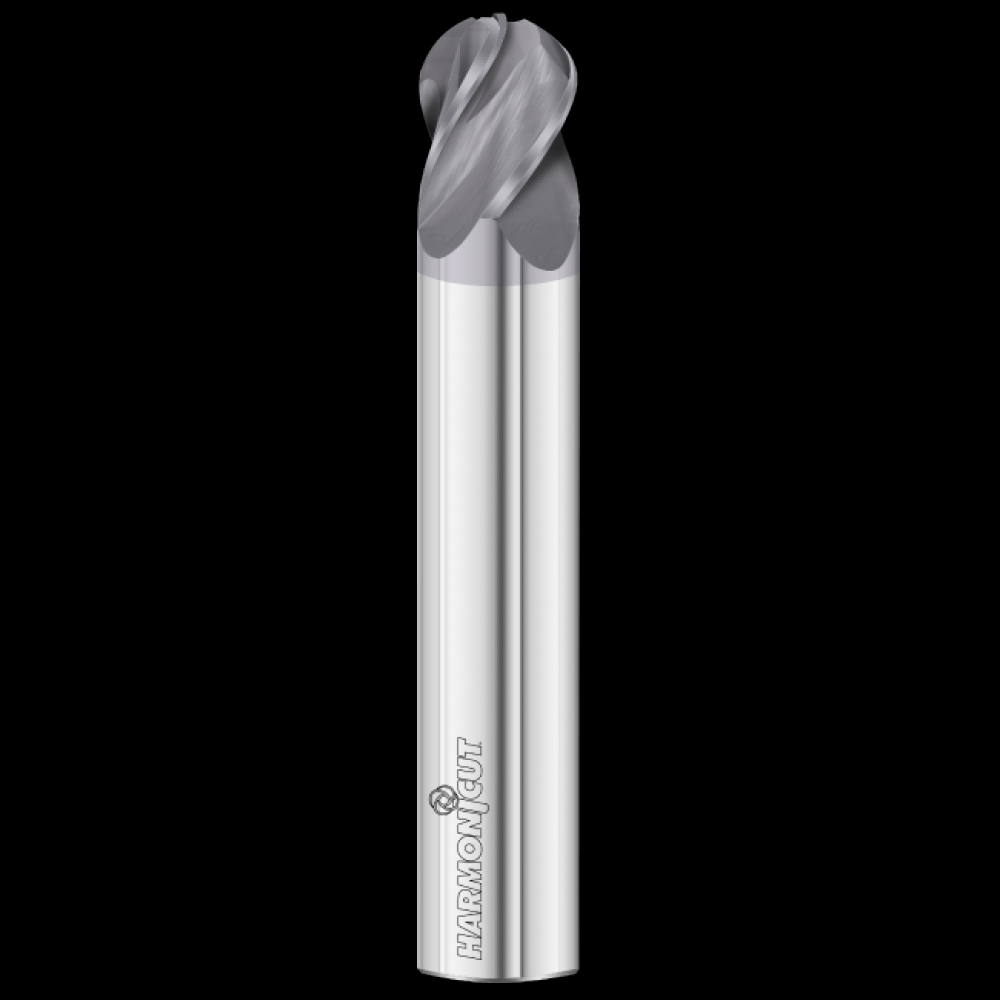

The Harmon-i-cut excels in difficult-to-machine ferrous materials like cast iron.
Long Description
Specifications
Details
Category:
Milling
Subcategory:
Solid
Subtype:
Ballnose End Mills
Helix Angle:
0.00
Number of Flutes:
4
Coating Color:
Blue-Gray
Coating Description:
Terrific for levels of oxidation resistance and hot hardness. Exemplary wear resistance. Excellent in hi-speed machining parameters for milling, stainless steels, alloy steels, titanium and h
Coating ID:
FC18
Coating Image Name:
Coating Name:
FULCOAT 18
Coolant:
No
Cutting Direction Description:
Right Hand Cutting
Cutting Direction ID:
RH
Double Ended:
No
Drill Ratio:
STB
End Type Description:
Ball
End Type ID:
B
Feature 1:
The 3400 Harmon-i-Cut is a 4-flute, high performance end mill designed for difficult to machine ferrous materials. It features a variable helix, variable index, and variable rake which maximizes tool life and removal rates by minimizing the effects of har
Flute Spiral Description:
Right Hand Spiral
Flute Spiral ID:
RH
Fractional Cutting Diam:
1/2
Fractional Cutting Flute Length:
5/8
Fractional Overall Length:
3
Fractional Shank Diam:
1/2
Imperial Cutting Diam:
0.5000
Imperial Cutting Flute Length:
0.6250
Imperial Overall Length:
3.0000
Imperial Shank Diam:
0.5000
Length Description:
Stub
Length ID:
STB
Measurement Unit ID:
I
Measurement Unit Name:
Inch
Measurement Unit System Of Unit:
Imperial
Metric Cutting Diam:
12.70
Metric Cutting Flute Length:
15.88
Metric Overall Length:
76.20
Metric Shank Diam:
12.70
Part Package Height:
1.5500
Part Package Length:
6.0920
Part Package Weight:
1.8150
Part Package Width:
1.5500
Manufactured By:
Fullerton
