Product Overview

The Fantom Vicor excels in difficult-to-machine materials like hardened steels, super alloys, stainless steels, and steels.

Category Path

Category:

Milling

Subcategory:

Solid

Subtype:

Corner Radius and Corner Chamfer End Mills

Product Specs

Helix Angle:

40.00

Number Of Flutes:

5

Coating Color:

Old Rose

Coating Description:

High hardness, elasticity, oxidation and low friction. Excellent for machining stainless steel and nickel-based high temperature alloys.

Coating ID:

FC20

Coating Image Name:


Coating Name:

FULCOAT 20

Coolant:

No

Cutting Direction Description:

Right Hand Cutting

Cutting Direction ID:

RH

Double Ended:

No

Drill Ratio:

SD

End Type Description:

Corner Radius

End Type ID:

R

Feature 1:

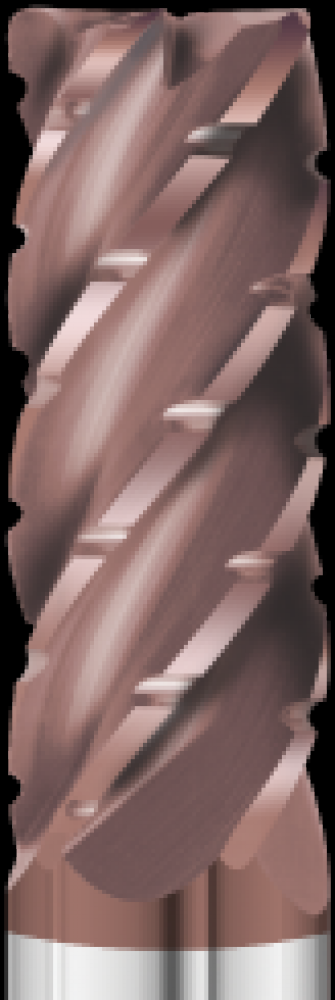

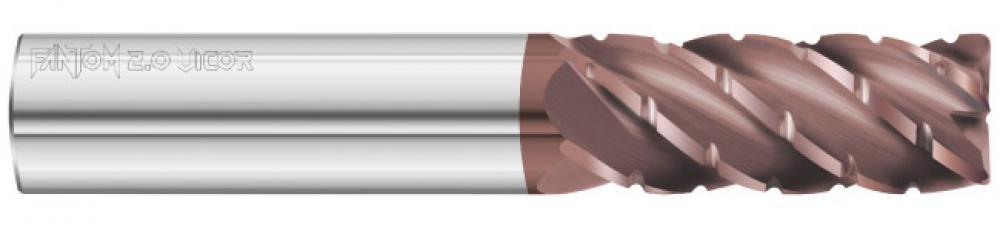

The 3415 Fantom Vicor is a 5-flute, high performance end mill with chip breakers. The chip breakers allow reduced cutting forces and provides excellent chip control when machining difficult to machine materials like steels, stainless steels, super alloys,

Flute Spiral Description:

Right Hand Spiral

Flute Spiral ID:

RH

Fractional Cutting Diam:

3/4

Fractional Cutting Flute Length:

2-1/4

Fractional Overall Length:

5

Fractional Shank Diam:

3/4

Imperial Cutting Diam:

0.7500

Imperial Cutting Flute Length:

2.2500

Imperial Overall Length:

5.0000

Imperial Radius:

0.0350

Imperial Shank Diam:

0.7500

Length Description:

Standard

Length ID:

SD

Measurement Unit ID:

I

Measurement Unit Name:

Inch

Measurement Unit System Of Unit:

Imperial

Metric Cutting Diam:

19.05

Metric Cutting Flute Length:

57.15

Metric Overall Length:

127.00

Metric Radius:

0.89

Metric Shank Diam:

19.05

Manufacturer Info

Manufactured By:

Fullerton
