Fullerton 32880 by Fullerton
Call For Price
- Part Number: 32880
- UPC:
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Variations (1628)
Failed to load
Product Overview

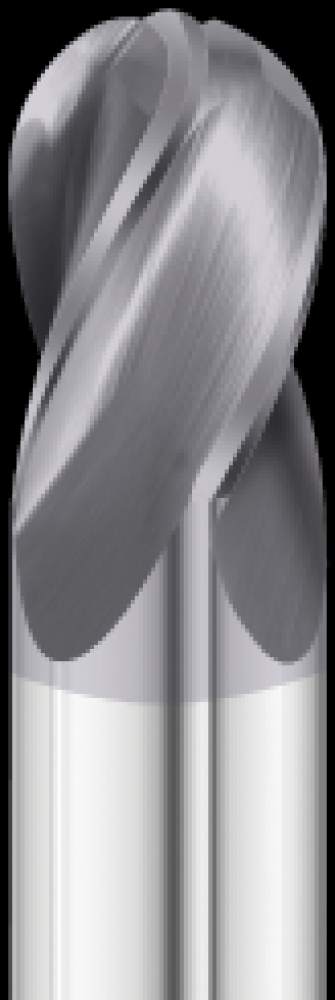

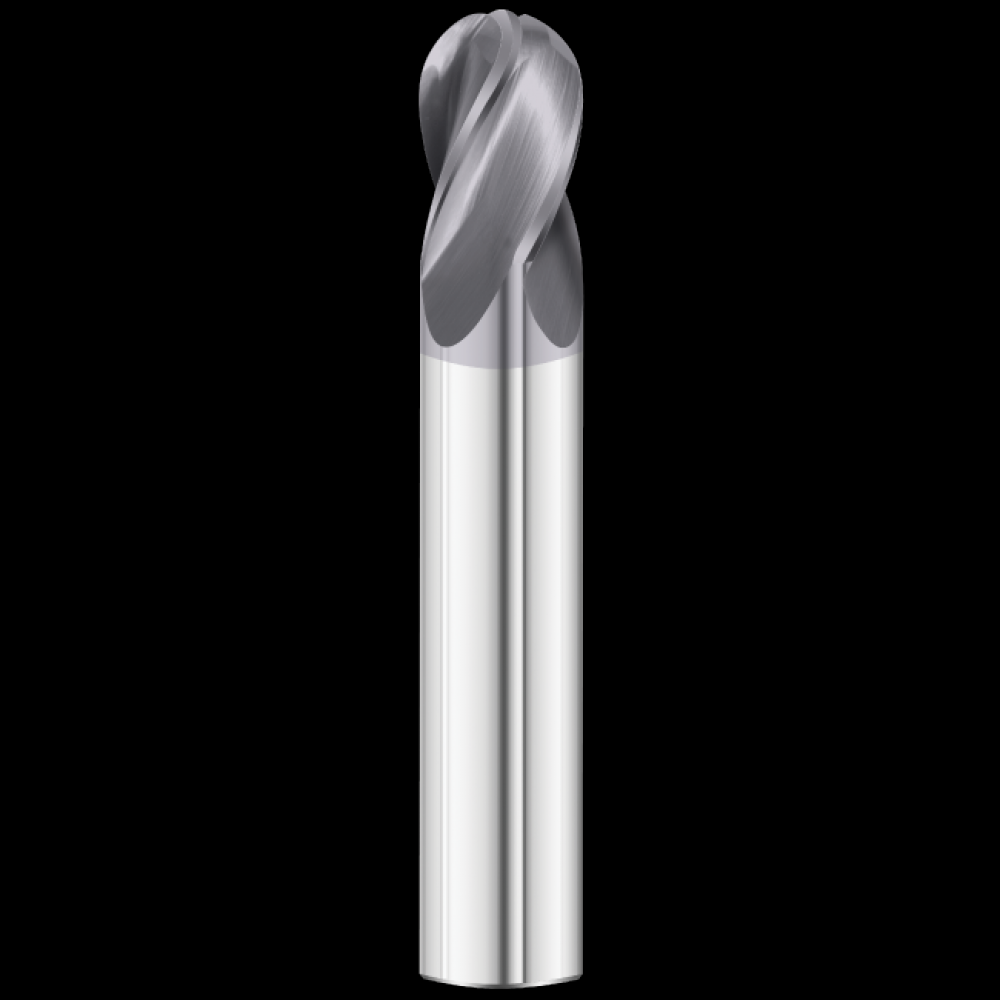

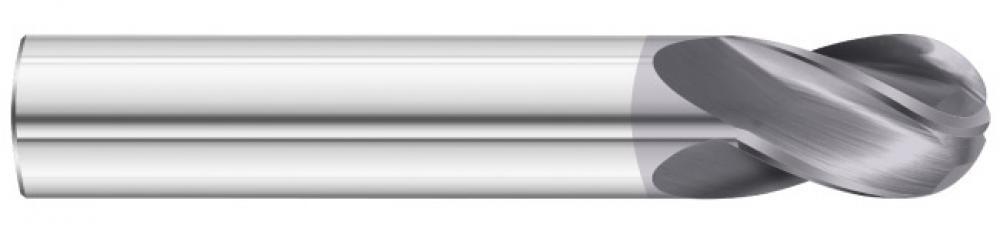

The General Purpose End Mill was designed for use in titanium, super alloys, hardened steels, stainless steels, cast iron, brass & copper, and low si aluminum.
Long Description
Specifications
Details
Category:
Milling
Subcategory:
Solid
Subtype:
Ballnose End Mills
Helix Angle:
30.00
Number of Flutes:
4
Coating Color:
Violet-Gray
Coating Description:
Excellent for high strength steels, hard die steels and high temperature and titanium alloys. Possible for dry machining, which eliminates thermal shocks created by flood coolants.
Coating ID:
TIALN
Coating Image Name:
Coating Name:
TiAlN - Titanium Aluminum Nitride
Coolant:
No
Cutting Direction Description:
Right Hand Cutting
Cutting Direction ID:
RH
Double Ended:
No
Drill Ratio:
STB
End Type Description:
Ball
End Type ID:
B
Feature 1:
The 3200 General Purpose end mill has 4-flutes and was designed for use in titanium, super alloys, hardened steels, stainless steels, steels, cast iron, brass & copper, and low si aluminum. It is offered in a variety of configurations and is available wit
Flute Spiral Description:
Right Hand Spiral
Flute Spiral ID:
RH
Fractional Cutting Diam:
1
Fractional Cutting Flute Length:
1
Fractional Overall Length:
4
Fractional Shank Diam:
1
Imperial Cutting Diam:
1.0000
Imperial Cutting Flute Length:
1.0000
Imperial Overall Length:
4.0000
Imperial Shank Diam:
1.0000
Length Description:
Stub
Length ID:
STB
Measurement Unit ID:
I
Measurement Unit Name:
Inch
Measurement Unit System Of Unit:
Imperial
Metric Cutting Diam:
25.40
Metric Cutting Flute Length:
25.40
Metric Overall Length:
101.60
Metric Shank Diam:
25.40
Part Package Height:
0.7500
Part Package Length:
4.0200
Part Package Weight:
0.2200
Part Package Width:
0.7500
Manufactured By:
Fullerton
