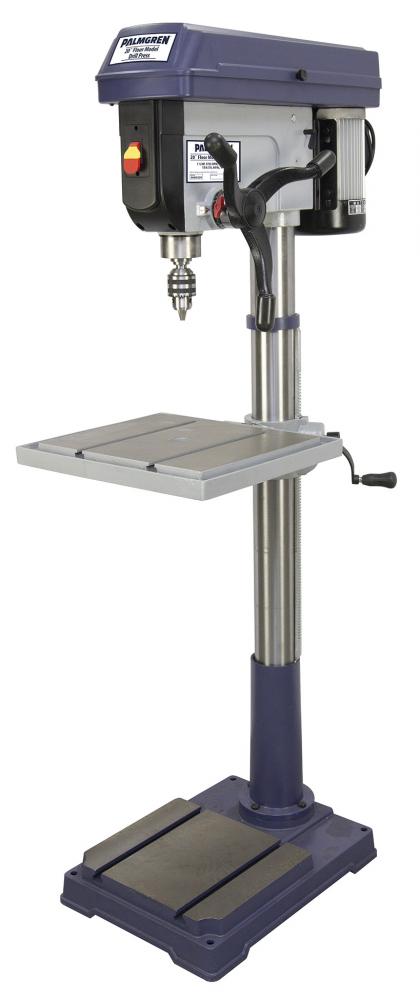

20" Floor 16-Speed Drill Press by C.H. Hanson
Call For Price
- Part Number: 9680220
- UPC:
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview
Info & Guides
The Palmgren step pulley drill presses have the weight and rigidity to maintain the built-in tolerances for metal and woodworking applications. 16 Speeds allow the operator to drill a wide range of large and small holes into a variety of materials.
Long Description
Specifications
Details
Brand:
Palmgren
Catalog Product Features:
• Quick change vertical depth stop for repetitive accurate operations ■ Rack and pinion table height adjustment ■ Front mounted locking rocker switch to prevent unauthorized use. 5/8" Chuck and key
Country of Origin:
CHINA
Freight Class:
150
Motor HP:
1.5HP / 120/240V / 13 / 6.5 A / 1PH
Number of Speeds:
12
Overall Dimensions (LxWxH):
29-1/2"D x 18-1/2"W x 68"H
Product Features:
Quick change vertical depth stop for repetitive accurate operations ■ Rack and pinion table height adjustment ■ Front mounted locking rocker switch to prevent unauthorized use. 5/8" Chuck and key
Retail Height (inches):
68
Retail Length (inches):
29.5
Retail Weight (lbs):
260
Retail Width (inches):
18.5
RPM:
180-2940
Spindle Travel:
5"
Status:
A
Swing:
20"
Table Dimensions:
18-1/2" x 16-1/2"
Taper range:
MT3/JT3
UPC:
7.26897E+11
Manufactured By:
C.H. Hanson
