Part Number: 9683413
/Vendor ID Number: 1152311
/Custom:
10-inch Left Tilt Cabinet Saw
by C.H. Hanson
Call For Price
Call for Availability
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Qty
Product Overview
Palmgren cabinet table saws offer precise cutting performance for all woods up to 3" thick for item 9683413 and 4" for item 9683416. Ruggedly constructed for continuous service. The saw features an extra large cast iron table with extensions for ripping a max of 50" to the right of the blade. For dado cuts a 5/8" diameter arbor and 5/8" diameter arbor extension along with a 1" arbor extension are included with the dado table insert. Max 13/16" dado capacity. The rip fence assembly is designed for simple one-hand maneuverability. Table height is 34" high.
Product Availability
Item is usually in stock, but we'll be in touch if there's a problem
Technical Details
Details
AMPS:
16A
Blade Length:
10" -5/8" Bore
Blade Speed (SFPM):
4000 RPM
Brand:
Palmgren
Catalog Product Features:
• Includes rip fence, miter gauge, 10" x 40 tooth general purpose blade, 5/8" dado extension, dado insert 12" x 40 tooth general purpose blade, 5/8" arbor extension, 5/8" dado extension, 1" arbor extension, dado table insert
Catalog Product Features-2:
• Left tilt or right tilt blade
Catalog Product Features-3:
• Machined cast iron table w/cast iron extensions: 10" - 37"W x 27"D with 2 miter gauge slots 12" - 48"W x 30"D with 2 miter gauge slots. "T" Style rip fence assembly glides smoothly on front and rear rails
Catalog Product Features-4:

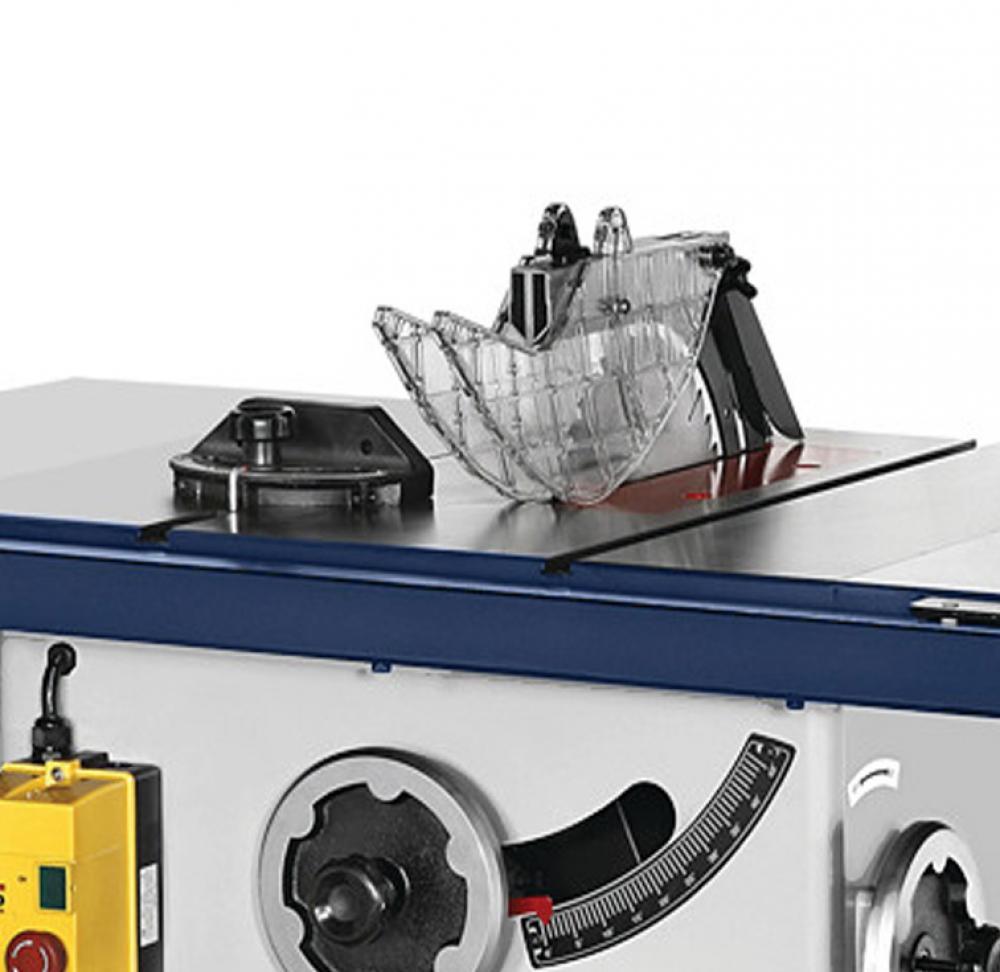

• Quick release blade guard system with riving knife and anti-kickback pawls
Country of Origin:
TAIWAN
Cutting Depth 45°:
2-1/8"
Cutting Depth 90°:
3"
Dust Port:
4"
Freight Class:
150
Harmonizing Code:
8465.91.0036
Motor HP:
3 HP
Phase:
1PH
Product Features:
Left tilt or right tilt blade. Machined cast iron table w/cast iron extensions: 10" - 37"W x 27"D with 2 miter gauge slots 12" - 48"W x 30"D with 2 miter gauge slots. "T" Style rip fence assembly glides smoothly on front and
