Part Number: 9683409 / Vendor ID #: 1152311
10 in. Table Saw with Stand
by C.H. Hanson
Call for Price
Item Sales Info
Add To Wishlist
Compare Item
Email
Print
Availability
- Manufacturer availability unknown.
Dimensions

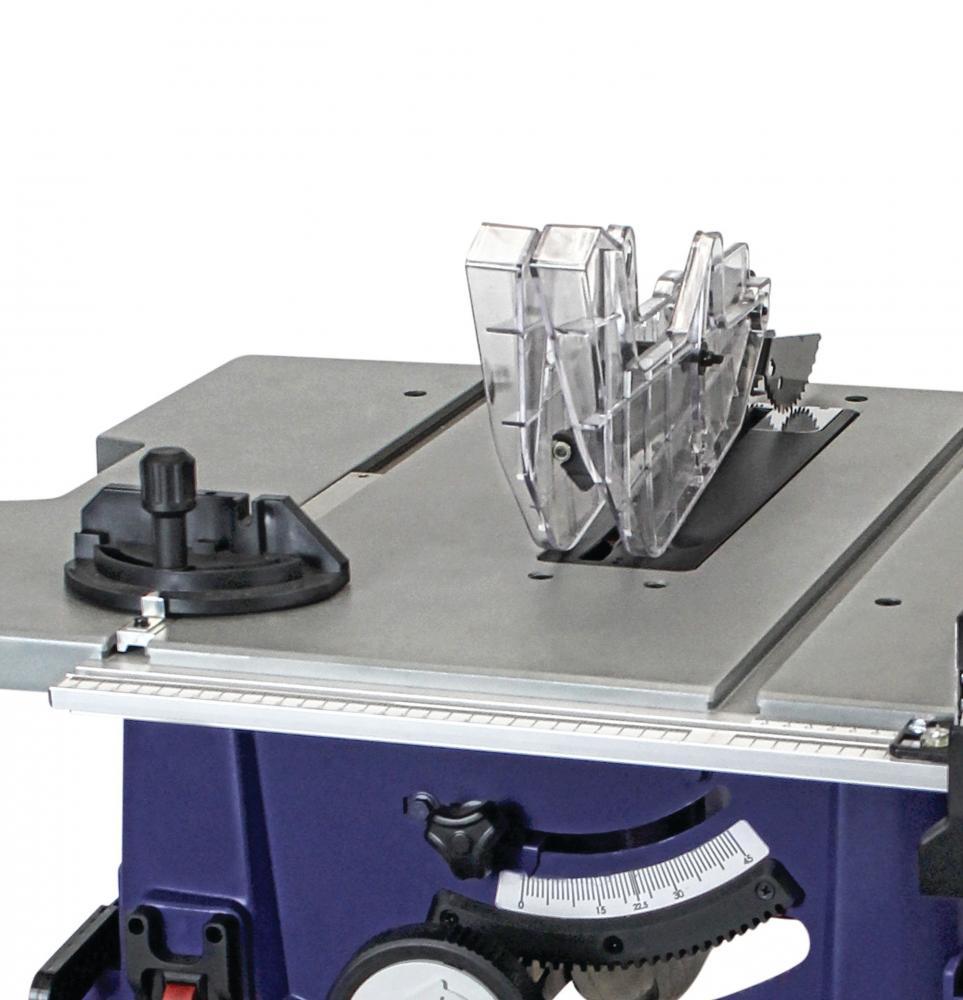

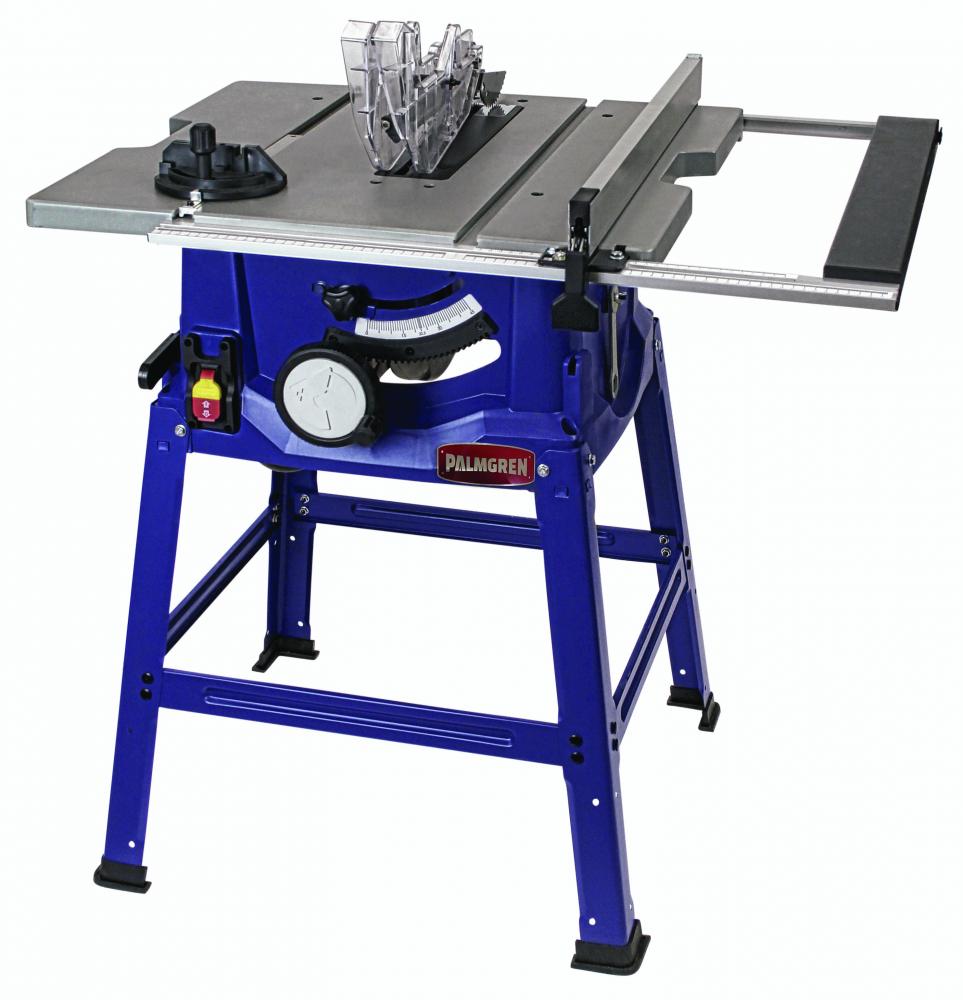

The 10 inch Palmgren table saw has a bonus. It is a bench top design that includes a stand so that you may cut larger workpieces. With the table extensions you get up to a 39W x22-1/2D table top (24-1/2 cut to the right of the blade) allowing you to easily rip a 4' x 8' sheet of plywood. The rear table extension gives you the support and safety when finishing your cut. The blade / riving knife system meet the UL standards for quick release and quick re-assembly for safety. The saw comes with a miter gauge, rip fence and 24 tooth blade so you have every you need for your first cut, right out of the box.
AMPS:
15A
Bench or Stationary:
BENCH
Blade Length:
10" -5/8" Bore
Blade Speed (SFPM):
5000 RPM
Brand:
Palmgren
Catalog Product Features:
• 15A Universal motor.10 inch X 24 Tooth blade.25-3/8 inch rip capacity to the right of the blade.39 inch W X 22-1/2 inch D
Catalog Product Features-2:
• Miter gauge included
Catalog Product Features-3:
• Rip fence included
Catalog Product Features-4:
• Table surface
Color:
Blue
Country of Origin:
CHINA
Cutting Depth 45°:
2-1/4"
Cutting Depth 90°:
3-1/4"
Dust Port:
1-1/4"
Export Harmonized Tariff Code:
8465910064
Freight Class:
85
Gross Weight:
77
Harmonizing Code:
8465.91.0036
Motor HP:
2 hp
Number of Blades:
1
Package Depth (inches):
29.5
Package Height (inches):
13
Package Width (inches):
25
Product Features:
15A Universal motor.10 inch X 24 Tooth blade.25-3/8 inch rip capacity to the right of the blade.39 inch W X 22-1/2 inch D.Table surface.Miter gauge included.Rip fence included.
Prop 65 Compliant:
View
Retail Height (inches):
34
Retail Length (inches):
21
Retail Weight (lbs):
38
Retail Width (inches):
16.5
Ripping Capacity Left:
8"
Ripping Capacity Right:
25-3/8"
Standard-Number of Blades:
1
Status:
A
Table w/ Ext:
39" x 22-1/2"
Tool Type:
Table Saw
UPC:
7.26897E+11
Voltage:
120V
Warranty:
1 year
Warranty (PDF):
http://images.salsify.com/image/upload/s--GWGwYXUY--/lah2ua8q8firvswhi3mg.pdf
Warranty url link:
http://images.salsify.com/image/upload/s--uHCmvRPH--/gzddlj5wed5r7viu6r0l
What’s in the Box:
TABLE SAW, BLADE, BLADE GUARD, MITER GAUGE, RIP FENCE, LEG SET, MANUAL
Manufactured By:
C.H. Hanson
