MONO CLAMP BORING BAR GX 09

MONO CLAMP BORING BAR GX 09 by Ceratizit

Call For Price
  • Part Number: 70859012
  • UPC:
  • Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview
Info & Guides
I12L90-2.5D-GX09
Long Description

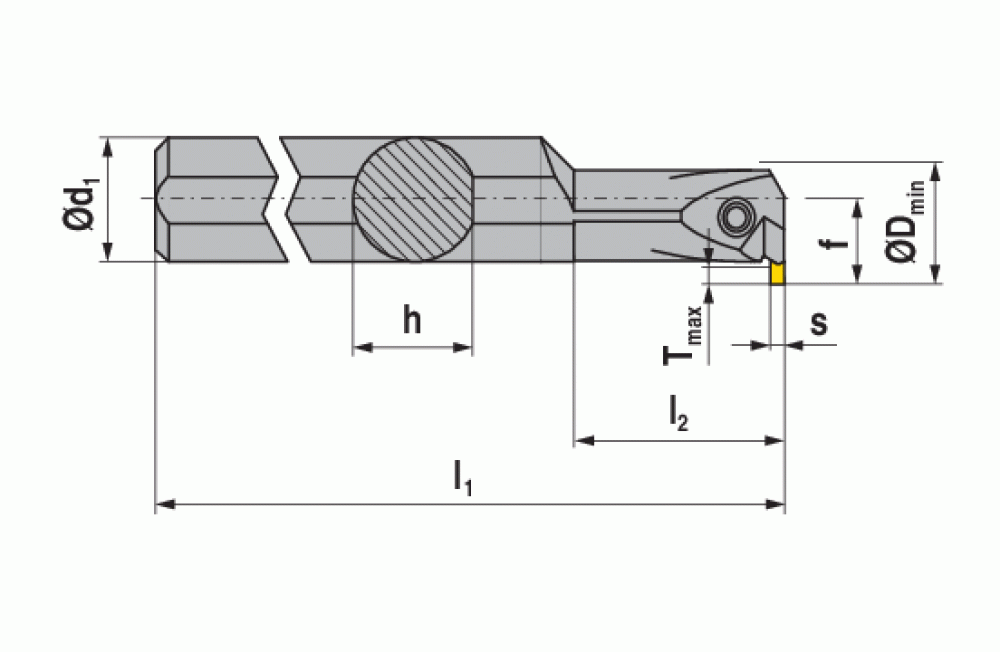

MONO CLAMP BORING BAR GX 09 I12L90-2.5D-GX09
Specifications
Details
Category:
Turning
Subcategory:
Internal Turning
Subtype:
Indexable Boring Bars
Brand Name:
CERATIZIT
Connection diameter machine side (inch):
0.63
Connection diameter machine side (mm):
16
cutting depth maximum (inch):
0.118
cutting depth maximum (mm):
3
Execution:
LEFT
For Groove Inserts:
GX 09 ..
functional width (inch):
0.433
functional width (mm):
11
ISO Designation:
I12 L 90-2,5D-GX09
Item Height (inches):
4.45
Item Length (inches):
1.38
Item Quantity:
1
Item Weight (lbs):
0.581
Item Width (inches):
1.38
Komet Number:
59599 05054
Material group K (H= Main Application, N= Secondar:
0
Material Number:
274818
minimum bore diameter (inch):
0.63
minimum bore diameter (mm):
16
Overall length (inch):
5.906
overall length (mm):
150
Product Line:
CERATIZIT_PERFORMANCE
Product name:
MONOCLAMP
reduced body diameter length (inch):
1.181
reduced body diameter length (mm):
30
shank height (inch):
0.6
shank height (mm):
15.25
UPC Number:
4047109292963
Manufactured By:
Ceratizit
