Product Overview

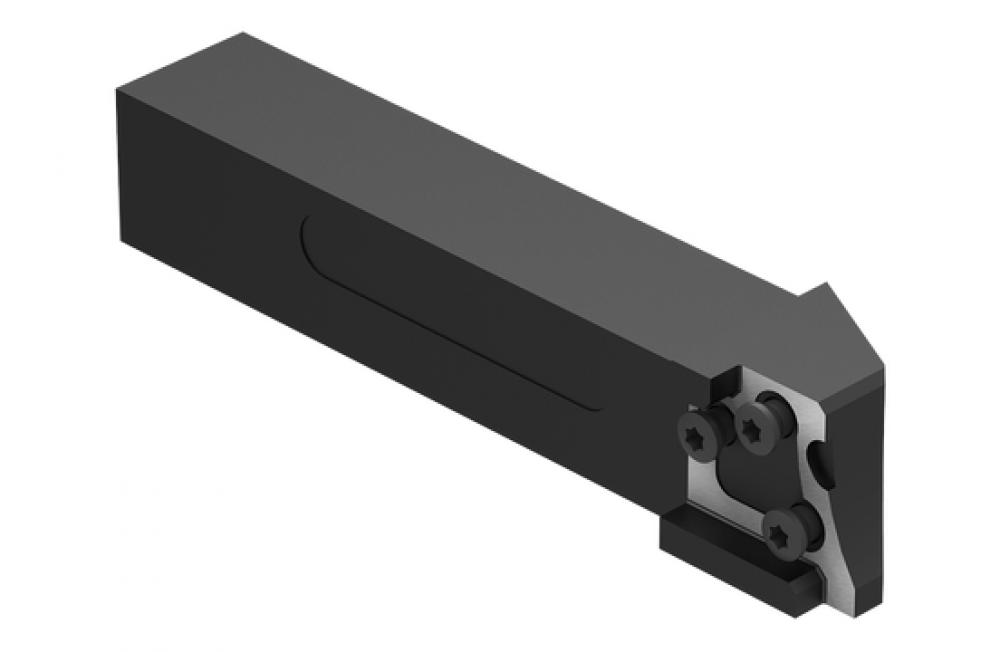

MSS-E25L00-2525L

MODULAR CLAMP MSS HOLDER 0° MSS-E25L00-2525L

Category Path

Category:

Turning

Subcategory:

Groove and Turn and Parting Off

Subtype:

Groove and Turn Indexable Holders

Product Specs

Brand Name:

CERATIZIT

Execution:

LEFT

For Module:

E25 R/L ...

functional width (inch):

1.004

functional width (mm):

25.5

head length (inch):

1.201

head length (mm):

30.5

ISO Designation:

E25 L 00-2525L

Item Height (inches):

5

Item Length (inches):

1.93

Item Quantity:

1

Item Weight (lbs):

1.719

Item Width (inches):

1.93

L1 Dimension (inch):

5.512

L1 Dimension (mm):

140

Length (L2) (inch):

0.984

Length (L2) (mm):

25

Material group K (H= Main Application, N= Secondar:

0

Material Number:

195721

overall height (inch):

1.181

overall height (mm):

30

Overall length (inch):

5.728

overall length (mm):

145.5

overall width (inch):

1.22

overall width (mm):

31

Product Line:

CERATIZIT_PERFORMANCE

Product name:

MODULARCLAMP_MSS

shank height (inch):

0.984

shank height (mm):

25

shank width (inch):

0.984

shank width (mm):

25

Manufacturer Info

Manufactured By:

Ceratizit
