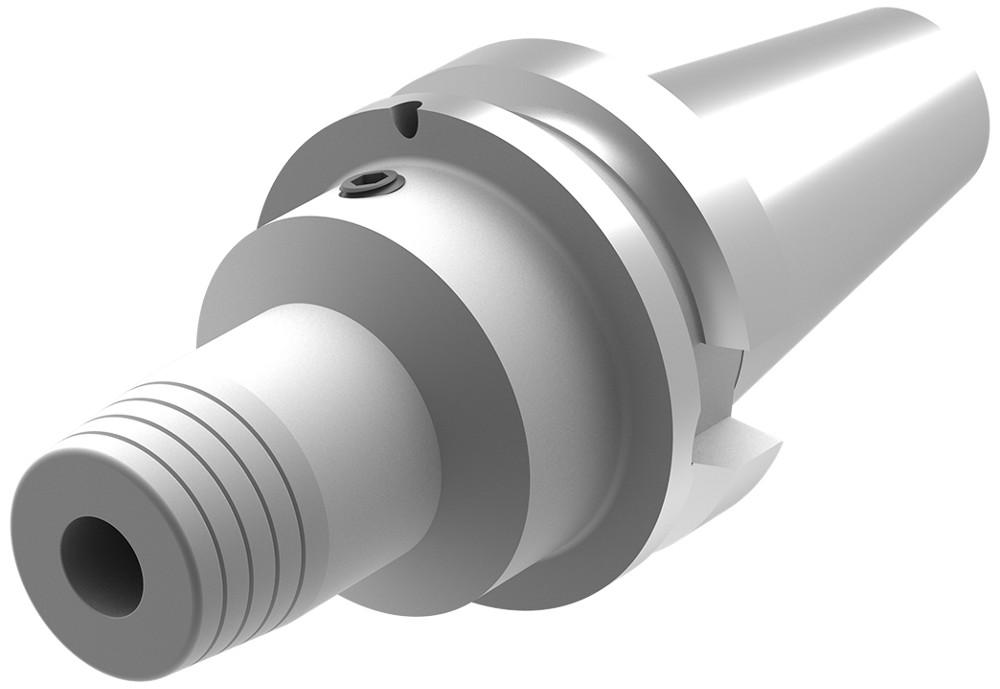

HYDRAULIC CHUCK by Ceratizit
Call For Price
- Part Number: 83521125
- UPC:
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview
MAS-BT.AB/B40.HSF.25.90.V
Long Description
HYDRAULIC CHUCK MAS-BT.AB/B40.HSF.25.90.V
Specifications
Details
Category:
Tooling Systems
Subcategory:
Tool Holders
Subtype:
Hydraulic Holders
Balance quality:
G2_5NMAX25000
body diameter 1 (inch):
2.165
body diameter 1 (mm):
55
body diameter 2 (inch):
2.047
body diameter 2 (mm):
52
body length 1 (inch):
1.969
body length 1 (mm):
50
body length 2 (inch):
0.394
body length 2 (mm):
10
body taper end diameter (inch):
2.008
body taper end diameter (mm):
51
Brand Name:
WNT
clamping length maximum machine side (inch):
2.244
clamping length maximum machine side (mm):
57
clamping length minimum machine side (inch):
1.85
clamping length minimum machine side (mm):
47
connection diameter workpiece side (inch):
0.984
connection diameter workpiece side (mm):
25
Cooling:
ADB
Item Height (inches):
2.95
Item Length (inches):
6.14
Item Quantity:
1
Item Weight (lbs):
4.334
Item Width (inches):
2.95
Material Number:
8352112500
Overall length (inch):
6.118
overall length (mm):
155.4
Product Line:
WNT_PERFORMANCE
Product name:
HYTENS
Protruding length (inch):
3.543
Protruding length (mm):
90
Recording:
BT 40
thread designation inside:
M16x1
Version:
SHORT SLIM
Manufactured By:
Ceratizit
