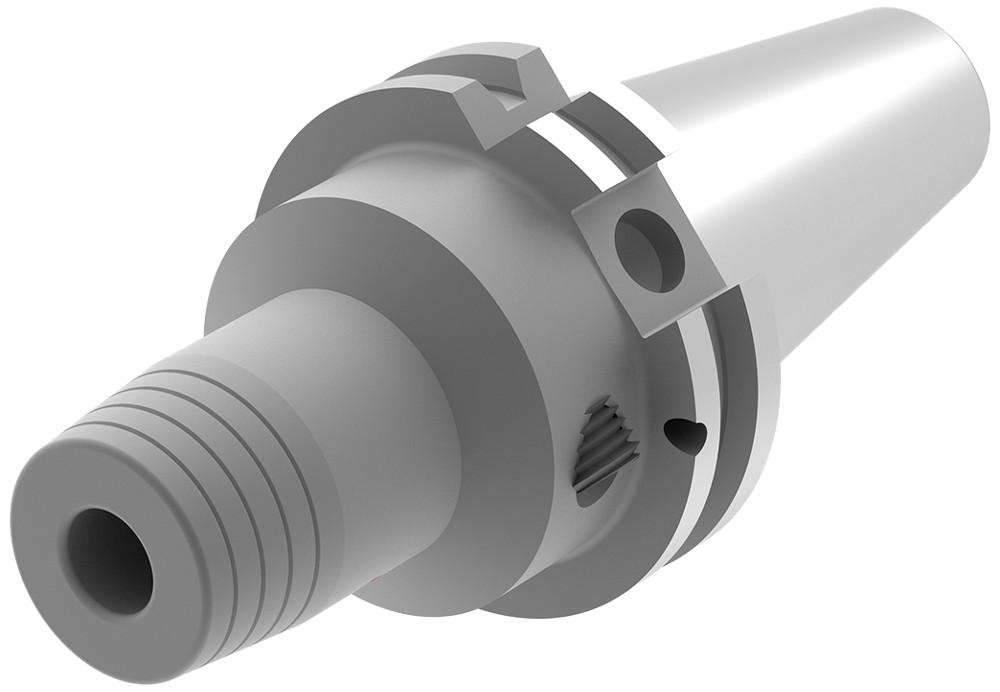

HYDRAULIC CHUCK by Ceratizit
Call For Price
- Part Number: 83402110
- UPC:
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview
DIN69871.AD/B40.HSF.10.80,5.V
Long Description
HYDRAULIC CHUCK DIN69871.AD/B40.HSF.10.80,5.V
Specifications
Details
Category:
Tooling Systems
Subcategory:
Tool Holders
Subtype:
Hydraulic Holders
Balance quality:
G2_5NMAX25000
body diameter 1 (inch):
1.181
body diameter 1 (mm):
30
body diameter 2 (inch):
1.949
body diameter 2 (mm):
49.5
body length 1 (inch):
1.378
body length 1 (mm):
35
body length 2 (inch):
0.812
body length 2 (mm):
20.62
body taper end diameter (inch):
1.024
body taper end diameter (mm):
26
Brand Name:
WNT
clamping length maximum machine side (inch):
1.614
clamping length maximum machine side (mm):
41
clamping length minimum machine side (inch):
1.22
clamping length minimum machine side (mm):
31
connection diameter workpiece side (inch):
0.394
connection diameter workpiece side (mm):
10
Cooling:
ADB
Item Height (inches):
2.95
Item Length (inches):
5.91
Item Quantity:
1
Item Weight (lbs):
3.232
Item Width (inches):
2.95
Material Number:
8340211000
Overall length (inch):
5.862
overall length (mm):
148.9
Product Line:
WNT_PERFORMANCE
Product name:
HYTENS
protruding length (inch):
3.169
protruding length (mm):
80.5
Recording:
SK 40
thread designation inside:
M8x1
Version:
SHORT SLIM
Manufactured By:
Ceratizit
