Part Number: 8274110855 / Vendor ID #: 1150641

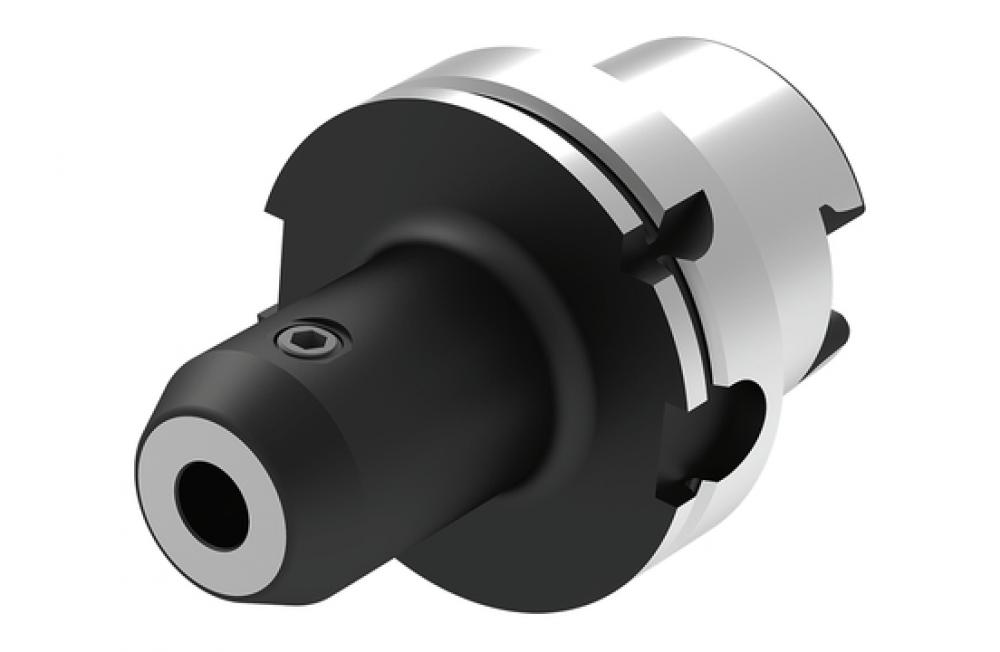

HSK-A TO CYLINDRICAL SHANK ADAPTER (WELDON)
by Ceratizit
Call for Price
Item Sales Info
Add To Wishlist
Compare Item
Email
Print
Availability
- Manufacturer availability unknown.
ISO12164-A100.WE.08.80.F
HSK-A TO CYLINDRICAL SHANK ADAPTER (WELDON) ISO12164-A100.WE.08.80.F
Category:
Tooling Systems
Subcategory:
Tool Holders
Subtype:
Drill Chucks and Adapters
Balance quality:
G2_5NMAX25000
balance quality code:
G2_5NMAX25000
body diameter (inch):
1.26
body diameter (mm):
32
body diameter 1 (inch):
1.26
body diameter 1 (mm):
32
body length (inch):
2.008
body length (mm):
51
body taper end diameter (inch):
0.787
body taper end diameter (mm):
20
Brand Name:
WNT
clamping length machine side (inch):
1.339
clamping length machine side (mm):
34
connection code type machine side:
HSK
connection code type workpiece side:
CYL
connection diameter workpiece side (inch):
0.315
connection diameter workpiece side (mm):
8
connection diameter workpiece side tolerance:
H5
Cooling:
AD
Item Height (inches):
4.57
Item Length (inches):
5.71
Item Quantity:
1
Item Weight (lbs):
5.657
Item Width (inches):
4.57
Material Number:
11097859
Overall length (inch):
5.118
overall length (mm):
130
Product Line:
WNT_STANDARD
Protruding length (inch):
3.15
Protruding length (mm):
80
Recording:
HSK-A 100
Version:
SHORT
Manufactured By:
Ceratizit
