Part Number: 8274110655 / Vendor ID #: 1150641

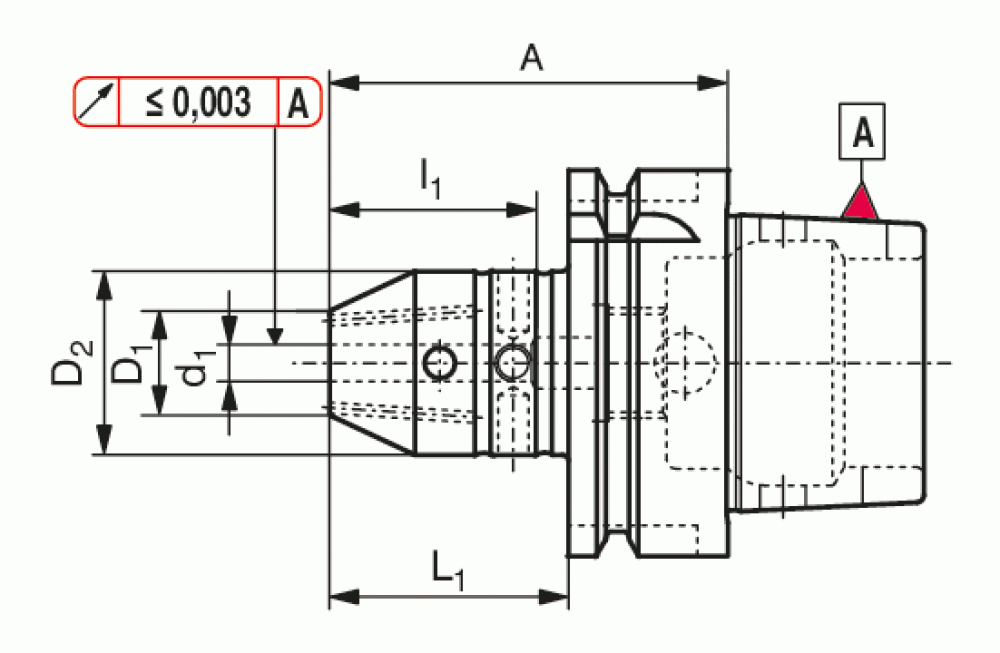

HSK-A TO CYLINDRICAL SHANK ADAPTER (WELDON)
by Ceratizit
Call for Price
Availability
  • Manufacturer availability unknown.
Product Overview
ISO12164-A100.WE.06.80.F
HSK-A TO CYLINDRICAL SHANK ADAPTER (WELDON) ISO12164-A100.WE.06.80.F
Category Path
Category:
Tooling Systems
Subcategory:
Tool Holders
Subtype:
Drill Chucks and Adapters
Product Specs
Balance quality:
G2_5NMAX25000
balance quality code:
G2_5NMAX25000
body diameter (inch):
1.181
body diameter (mm):
30
body diameter 1 (inch):
1.181
body diameter 1 (mm):
30
body length (inch):
2.008
body length (mm):
51
body taper end diameter (inch):
0.669
body taper end diameter (mm):
17
Brand Name:
WNT
clamping length machine side (inch):
1.339
clamping length machine side (mm):
34
connection code type machine side:
HSK
connection code type workpiece side:
CYL
connection diameter workpiece side (inch):
0.236
connection diameter workpiece side (mm):
6
connection diameter workpiece side tolerance:
H5
Cooling:
AD
Item Height (inches):
4.57
Item Length (inches):
5.71
Item Quantity:
1
Item Weight (lbs):
5.553
Item Width (inches):
4.57
Material Number:
11097858
Overall length (inch):
5.118
overall length (mm):
130
Product Line:
WNT_STANDARD
Protruding length (inch):
3.15
Protruding length (mm):
80
Recording:
HSK-A 100
Version:
SHORT
Manufacturer Info
Manufactured By:
Ceratizit
