Part Number: 8274212557 / Vendor ID #: 1150641

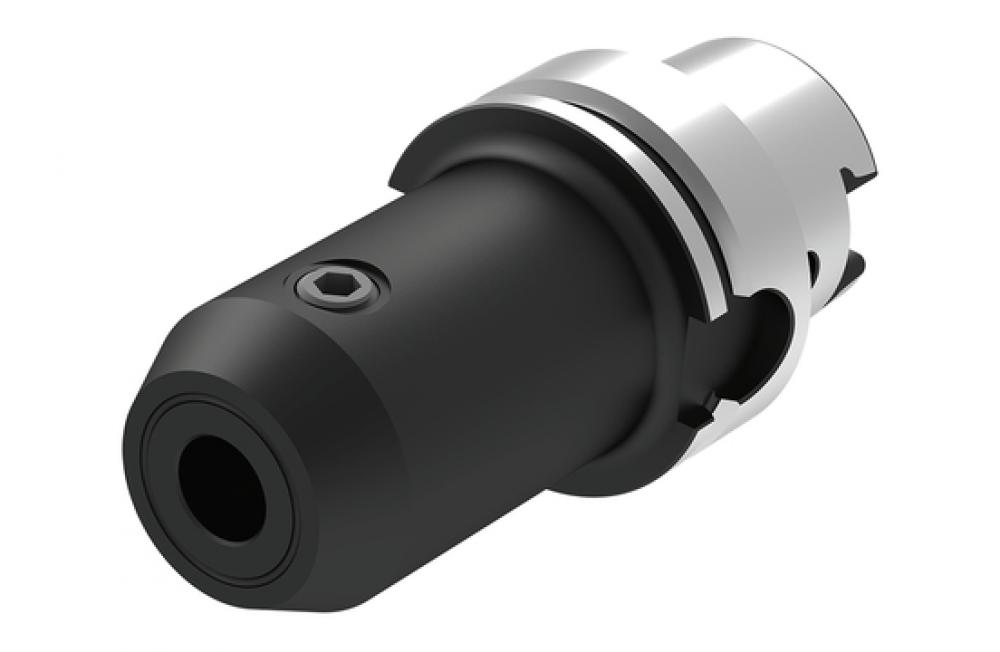

HSK-A - CYLINDRICAL SHANK ADAPTER (WHISTLE NOTCH)
by Ceratizit
Call for Price
Item Sales Info
Add To Wishlist
Compare Item
Email
Print
Availability
- Manufacturer availability unknown.

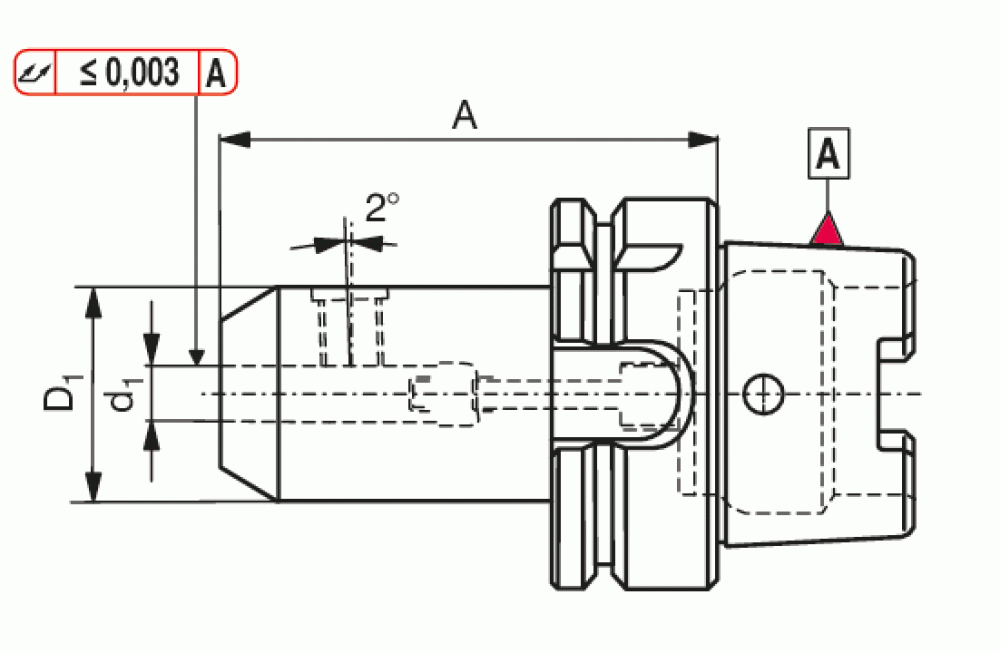

Dimensions
ISO12164-A63.WN.25.110.F
HSK-A - CYLINDRICAL SHANK ADAPTER (WHISTLE NOTCH) ISO12164-A63.WN.25.110.F
Category:
Tooling Systems
Subcategory:
Tool Holders
Subtype:
Drill Chucks and Adapters
Balance quality:
G2_5NMAX25000
balance quality code:
G2_5NMAX25000
body diameter (inch):
2.559
body diameter (mm):
65
body taper end diameter (inch):
1.772
body taper end diameter (mm):
45
Brand Name:
WNT
connection code type machine side:
HSK
connection code type workpiece side:
CYL
connection diameter workpiece side (inch):
0.984
connection diameter workpiece side (mm):
25
connection diameter workpiece side tolerance:
H4
Cooling:
AD
Item Height (inches):
3.46
Item Length (inches):
6.5
Item Quantity:
1
Item Weight (lbs):
5.437
Item Width (inches):
3.46
Material Number:
11132620
Overall length (inch):
5.591
overall length (mm):
142
Product Line:
WNT_PERFORMANCE
Protruding length (inch):
4.331
Protruding length (mm):
110
Recording:
HSK-A 63
Version:
SHORT
Manufactured By:
Ceratizit
