Part Number: 24010H-003IS052 / Vendor ID #: 10753
T-A Structural Steel Holder
by Allied Machine & Engineering
Call for Price
Item Sales Info
Add To Wishlist
Compare Item
Email
Print
Availability
- Manufacturer availability unknown.
Dimensions
Category:
Cutting Tools
Holemaking
Subcategory:
Drilling
Subtype:
Indexable Drill Bodies
Flute Type:
Helical
Overall Length (Inch):
9/3/2004
Series:
1
Shank Diameter (Inch):
#3 MT
Shank Type:
Morse Taper
Body length inch:
5-7/8
Coolant Inlet Style Rear:
TTC
Coolant Inlet Style Side:
TSC
Country Of Origin:
US
Deep Hole:
No
Drill depth inch:
4-3/4
Harmon Code:
8466.10.0130
Height:
1
ImageURL_Angle:
https://www.alliedmachine.com/images/itemImages/T-A Holders/1/24010H-003IS052/24010H-003IS052_ANGLE.png
ImageURL_Front:
https://www.alliedmachine.com/images/itemImages/T-A Holders/1/24010H-003IS052/24010H-003IS052_FRONT.png

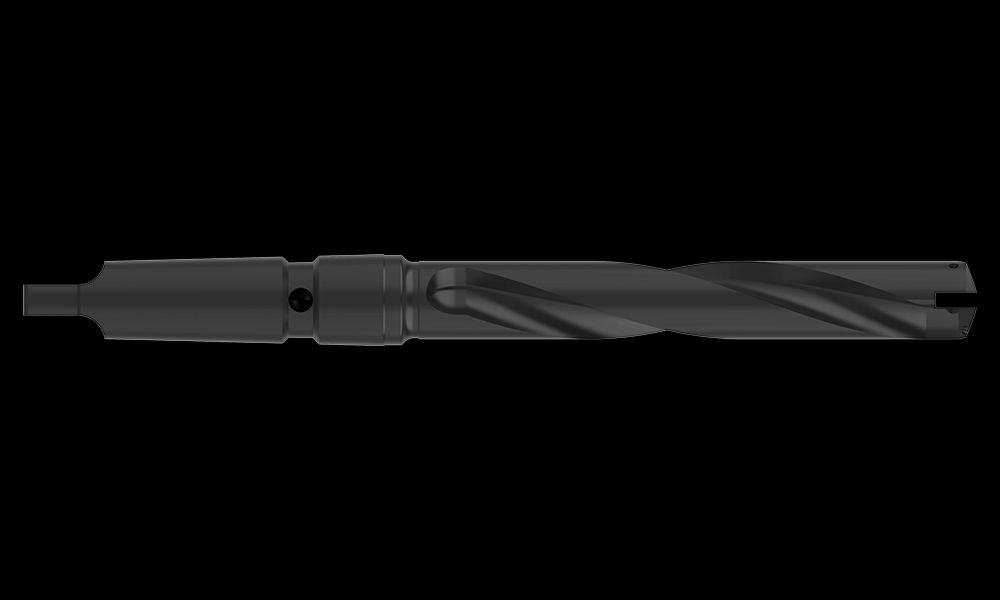

ImageURL_Side:
https://www.alliedmachine.com/images/itemImages/T-A Holders/1/24010H-003IS052/24010H-003IS052_SIDE.png
Image_Angle:
T-A Holders\1\24010H-003IS052\24010H-003IS052_ANGLE.png
Image_Front:
T-A Holders\1\24010H-003IS052\24010H-003IS052_FRONT.png
Image_Side:
T-A Holders\1\24010H-003IS052\24010H-003IS052_SIDE.png
Length:
10.75
Length Type:
Standard
Minimum diameter inch:
13/16
Minimum Order Qty:
1
Overall length inch:
9-3/4
Package Qty:
1
Shank diameter inch:
#3 MT
Structural Steel Thin Wall Tool Reference Length:
6-13/64
Tool Reference Length inch:
6-17/64
Type of Product:
Replaceable Drill Body
Unit of Measure:
EA
Width:
1
Manufactured By:
Allied Machine & Engineering
